Why Vertical Pumps Don’t Forgive Alignment Shortcuts

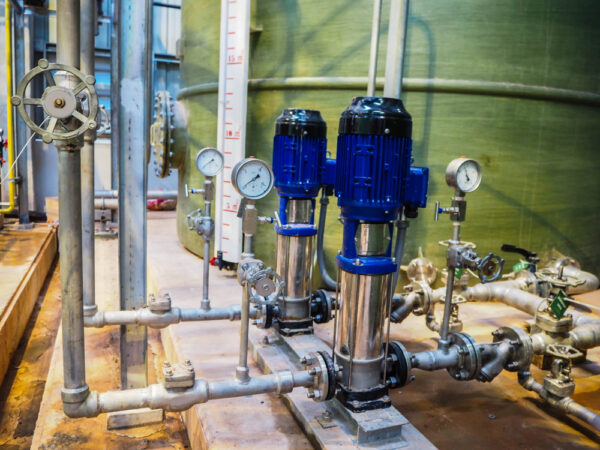

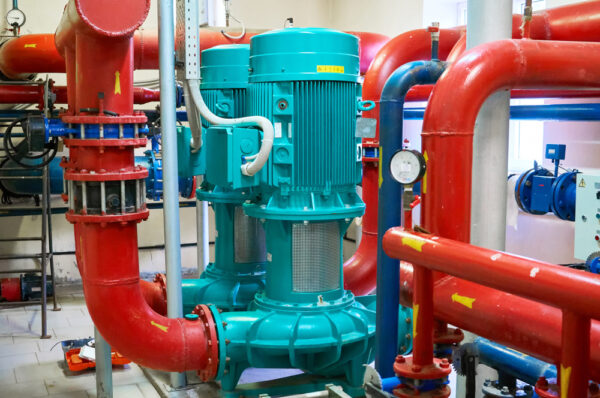

Most alignment thinking, tooling, and procedures were developed for horizontal pump sets. Vertical pumps, including vertical turbine pumps, vertical inline pumps, and vertical multistage configurations, share the same failure consequences when misaligned but introduce mechanical constraints that make alignment harder to perform, easier to skip, and more consequential when wrong.

Not the same as horizontal alignment

Horizontal pump alignment has accessible coupling faces, motor feet that accept shims, and clear correction paths in two planes. Vertical installations change most of that:

• The coupling sits at the top of the pump column with limited access and no convenient reference surfaces for dial indicator work.
• The rabbet fit, which is a precision locating shoulder between the motor flange and mounting plate, centers the motor automatically, creating the widespread assumption that alignment is handled.
• Angular error in the motor mounting flange propagates down the full shaft length. On a long-column vertical turbine pump, small angular deviations produce significant shaft deflection at the lower bearings.
• Gravity-driven shaft sag in deep-column installations adds a deflection component that horizontal pump analysis doesn’t account for.

The rabbet fit minimizes offset misalignment but does essentially nothing to prevent angular misalignment, which is what drives the damage.

Why most vertical pumps have never been aligned

NEMA and IEC standards allow motor flange face runout of 0.003–0.012 inches on new motors, which is enough angular error to produce measurable misalignment at the coupling. Factory alignment doesn’t survive installation; piping connection forces, foundation settlement, and handling all shift motor position afterward.

Post-installation alignment verification is rarely a standard step because the access and tooling requirements make it inconvenient. Most vertical pumps in water, wastewater, and industrial cooling service have never had a documented alignment check after the motor was set.

What bad alignment does to the pump

• Mechanical seals wear unevenly when the shaft isn’t running perpendicular to the seal face, producing leakage that gets blamed on seal quality before alignment is checked.
• Thrust bearings in vertical turbine pumps carry combined hydraulic and mechanical load; misalignment adds radial loading to a bearing designed primarily for axial load.
• Pipe strain from connected piping distorts the pump casing and shifts the shaft position after alignment is set.

How to do it right

• Check the motor mounting flange face for runout before the motor is set. Angular error in the face can’t be corrected without removing the motor.
• Verify the rabbet fit is clean and undamaged; a worn fit allowing motor movement can’t be shimmed around.
• Connect piping after alignment is verified. Piping forces applied before final alignment lock the casing into a distorted position.
• Use reverse dial indicator or laser alignment methods; visual checks are not sufficient for vertical pump tolerances.
• Document the alignment reading at installation as a baseline for future comparison.

Same repair, same schedule

Bearing failures and seal leaks on vertical pumps get addressed at the component level, with the bearings replaced and seals repacked, but without the alignment being rechecked. The pump goes back into service until the same bearing fails on the same schedule. On a machine where checking alignment is inconvenient, that cycle repeats until someone asks why the pump keeps coming back.
