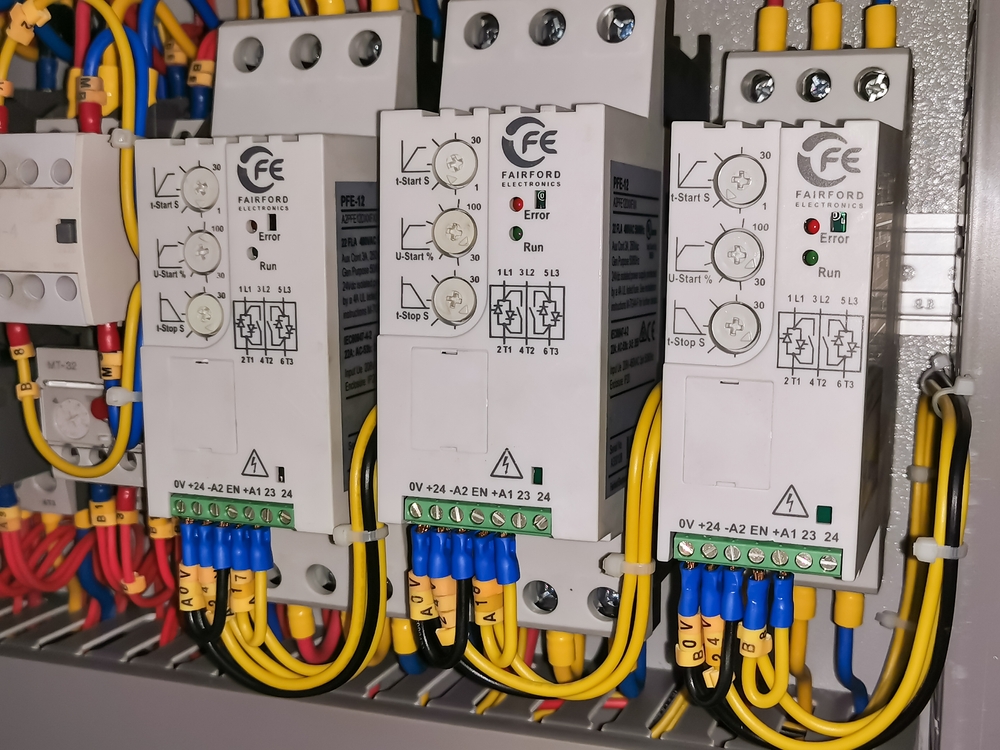

VFD Overtemperature Faults: When It’s Not the Drive That’s Failing
When a variable-frequency drive (VFD) trips on an overtemperature fault, the immediate assumption is often straightforward: the drive is failing. After all, the fault code points to the temperature inside the unit. Replacement seems like the logical solution.
In many cases, though, the drive isn’t the root cause. Overtemperature faults frequently reflect environmental, installation, or load conditions that prevent the drive from shedding heat effectively. Understanding that distinction can prevent unnecessary replacements and repeat failures.
What an overtemperature fault means
An overtemperature fault simply indicates that an internal temperature threshold has been exceeded. VFDs continuously monitor heat sink temperature and other internal thermal points to protect sensitive power electronics. When those limits are reached, the drive shuts down to prevent damage.
That shutdown is often a protective response, not proof of internal failure. The drive may be operating as designed, detecting heat it cannot dissipate safely. The key question isn’t just why the drive is hot, but why heat is accumulating in the first place.
Common nondrive causes of VFD overheating
Many overtemperature faults originate outside the drive. Environmental and installation conditions play a major role in how effectively a VFD can manage heat. Common contributors include:
- Poor ventilation or blocked airflow inside the enclosure
- Clogged, damaged, or failed cooling fans
- High ambient temperatures in the panel
- Undersized enclosures that trap heat
- Harmonic distortion or unstable line conditions
- Loose power connections generating additional heat
Individually, these issues may seem minor. Together, they reduce cooling efficiency and allow internal temperatures to rise beyond normal operating limits. In these situations, the drive is responding to external heat stress rather than internal component failure.
When load conditions create heat the drive can’t shed
Electrical and mechanical load conditions can also elevate drive temperature. Sustained overload situations, such as motors operating above rated load, force the drive to deliver higher current, increasing internal heat.
Incorrect parameter settings may compound the issue. Acceleration and deceleration times that are too aggressive, frequent start-stop cycles, or misconfigured torque limits can all increase thermal stress. In some cases, mechanical problems like binding, misalignment, or worn components cause the motor to draw more current than expected, indirectly heating the drive.
Again, the drive may be functioning properly. It’s simply working harder than the system was designed to support.
Why replacing the drive often doesn’t solve the problem
Replacing a drive can appear to fix the issue temporarily. A new unit may tolerate marginal conditions for a period of time, especially if its cooling components are clean and functioning at peak efficiency.
But if airflow restrictions, enclosure heat buildup, or load-related stresses remain unchanged, the same overtemperature fault usually returns. The replacement drive is exposed to the same environment as its predecessor. Without addressing the underlying conditions, the cycle repeats. Costs increase, downtime accumulates, and the root cause remains unresolved.
Look beyond the fault code
An overtemperature fault doesn’t automatically mean the drive is defective. In many cases, it’s doing what it was designed to do: protect itself from excessive heat. Evaluating the enclosure design, ventilation, ambient conditions, electrical supply quality, and load behavior frequently reveals the real source of the problem. Looking beyond the fault code leads to more durable solutions and fewer repeat failures.
