The Hidden Dangers of Harmonic Distortion in Industrial Motors

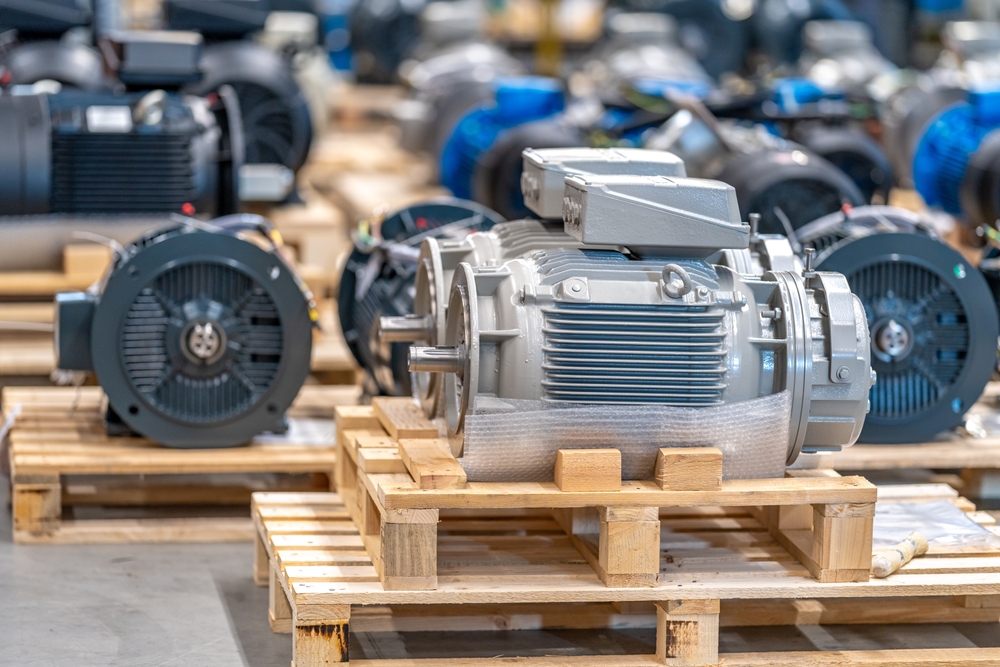

New Electric Motors On Pallets In The Warehouse

What happens when your motors start humming the wrong tune? Harmonic distortion isn’t loud, but it can be destructive. It creeps into the power system subtly, then steadily wears down motor performance. At first, it might look like overheating or inefficiency. Give it time, and it morphs into insulation failure, bearing stress, or drive trips that seem to appear out of nowhere. It’s a hidden stressor many maintenance teams don’t see coming… until it’s already too late.

The destructive power of harmonic distortion

Harmonics are voltage or current frequencies that ride on top of the fundamental 60 Hz waveform. They’re often introduced by nonlinear loads like variable frequency drives (VFDs), uninterruptible power supplies, and switching power supplies. These devices draw power in pulses, not smooth waves — and those pulses distort the sine wave. The more nonlinear equipment you add to your system, the higher the risk of harmonic buildup.

Distortion in the power supply disrupts the voltage symmetry that motors rely on. The current doesn’t flow evenly across the three phases, which stresses windings and heats up conductors. That excess heat builds up fast — and after a while:

  • Insulation starts to break down, leading to premature winding failure.
  • Bearings suffer from stray currents induced by distorted waveforms.
  • Vibrations increase, especially when harmonic torque ripple is present.
  • Motor efficiency drops as the drive compensates for irregular input.

Dealing with persistent motor issues?

Harmonics can be hugely disruptive to ABB drives. If you’re dealing with load balancing issues, GES can help. Now through the end of the month, we’re offering 10% OFF single repairs or 15% OFF 3+ repairs on ABB products!

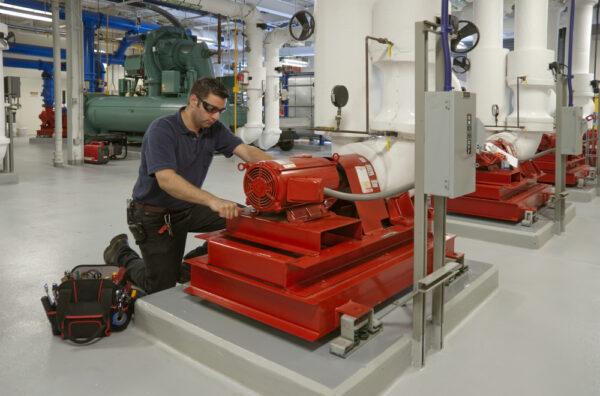

Workman Repairing Electric Motor In Building Transformer Underground

How to identify and validate harmonic distortion

Most harmonic distortion symptoms look like something else. That’s why they’re so often misdiagnosed. If one of these recurring issues keeps showing up — and fixes don’t last — harmonics might be the underlying cause:

  • Motors that overheat without mechanical load increases.
  • Unexpected drive trips, especially at startup or under light load.
  • Repeated bearing failures despite good lubrication and alignment.
  • Insulation resistance trending downward across multiple motors.

You can’t manage what you can’t see. Harmonic distortion needs a proper measurement strategy. Don’t rely on general readings from a multimeter. You need detailed waveforms and time-based analysis to see the full picture. Use a power quality analyzer to:

  • Measure total harmonic distortion (THD) on both voltage and current.
  • Identify individual harmonic orders (like 3rd, 5th, or 7th) that are causing the most trouble.
  • Track harmonic levels over time to catch patterns tied to specific equipment.

Prioritize repairs, before distortion gets worse

The longer harmonics go unchecked, the more damage they can do. But you’re not stuck with them. The best solution often involves a combination of hardware fixes and smarter drive configuration. You have several options:

  • Line reactors or isolation transformers can buffer distortion and reduce its impact on motors.
  • Harmonic filters (passive or active) help cancel out specific frequencies.
  • Tuned capacitor banks can balance the power factor and reduce resonance.
  • Drive programming tweaks, like increasing carrier frequency, can smooth current draw.

Remember: What works for one facility may not work for another, which makes diagnosis just as important as repair. Persistent distortion isn’t something to leave to guesswork. If your motors keep failing, drives are tripping, and energy efficiency is sliding, it’s time for a deeper look into the system itself.

Let trained eyes and diagnostic tools uncover what hidden harmonics are really costing you. You can always count on the professionals at Global Electronic Services. Contact us for Repair, Sales & Service of Industrial Electronics, Servo Motors, AC & DC Motors, Hydraulics & Pneumatics — don’t forget to like and follow us on Facebook, LinkedIn, YouTube, and X!
