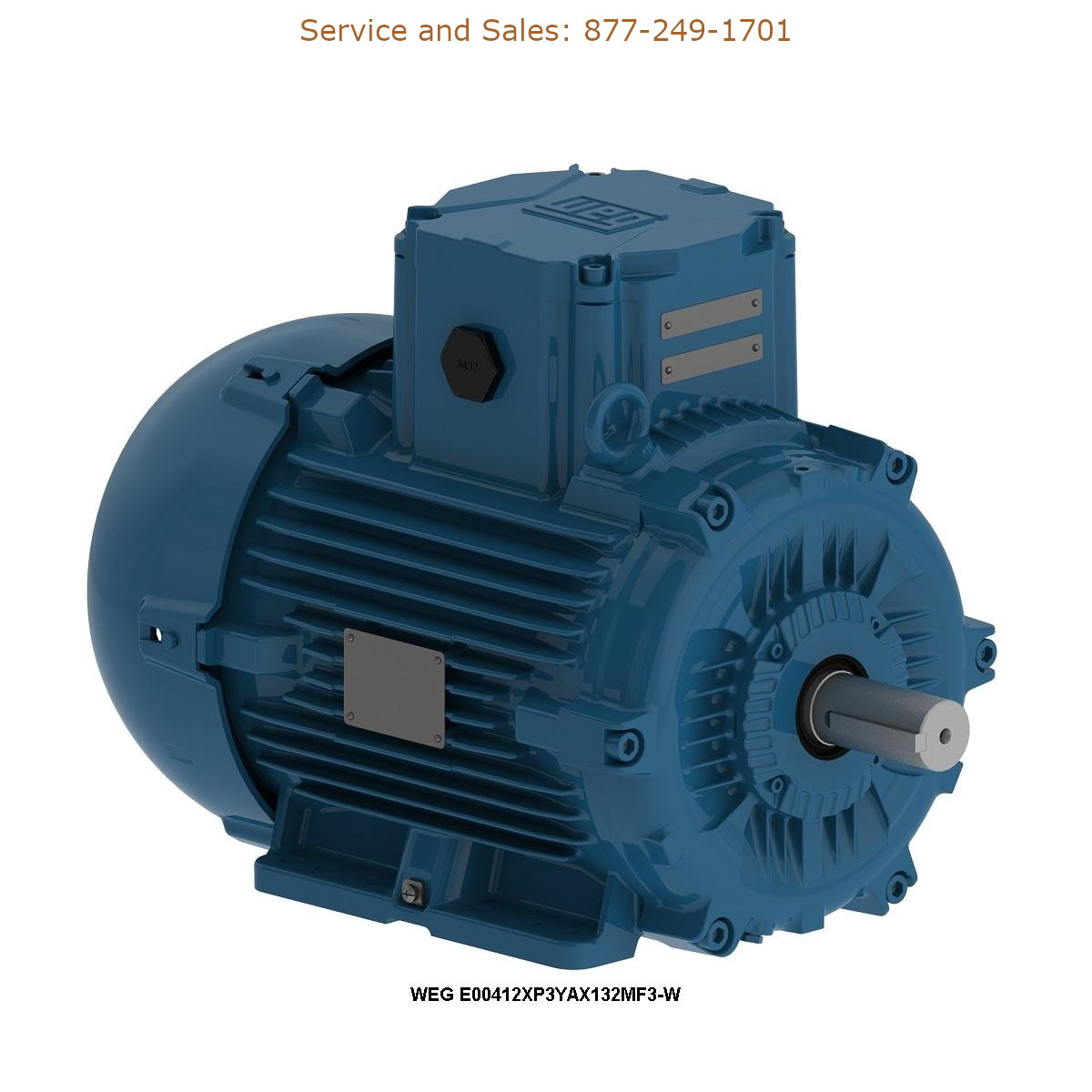

WEG Model Number E00412XP3YAX132MF3-W WEG Electric Motors, AC Motors – IEC Repair Service, Troubleshooting, Replacement Parts
WEG E00412XP3YAX132MF3-W WEG Model Number E00412XP3YAX132MF3-W WEG Electric Motors, AC Motors – IEC Repair Service, Troubleshooting, Replacement Parts
Key Features
- Standard IEC 60034-1
- Frequency 50 Hz
- Voltage 380-415/660//460 V
- Number of poles 6
- Degree of Protection IP56
- Synchronous speed 1000 rpm
- Output rating 4 kW
- Mounting Foot-mounted
- Flange Without
- Mounting B3T
- Terminal box Top
- Enclosure IC411 - TEFC
- Frame 132S/M
- Output 4 kW (5.5 HP)
- Number of Poles 6
- Frequency 50 Hz
- Rated speed 960 rpm
- Slip 4.00 %
- Rated voltage 380/660 V
- Rated current 9.71/5.59 A
- L. R. Amperes 53.4/30.7 A
- LRC 5.5
- No load current 4.70/2.71 A
- Rated torque 29.4 ft.lb
- Locked rotor torque 170 %
- Breakdown torque 200 %
- Locked rotor time 37s (cold) 21s (hot)
- Moment of inertia (J) 1.07 sq.ft.lb
- Design N
- Insulation Class F
- Service factor 1.00
- Temperature rise 80 K
- Duty Cycle S1
- Starting Method Direct On Line
- Ambient temperature -20degC to +40degC
- Altitude 1000 m.a.s.l.
- Degree of Protection IP56
- Enclosure IC411 - TEFC
- Mounting B3T
- Rotation Both (CW and CCW)
- Noise level 53.0 dB(A)
- Approx. weight 234 lb
WEG
- Model #:
- E00412XP3YAX132MF3-W
- Part #:
- E00412XP3YAX132MF3-W
- New/Surplus $ 3607
- Refurb. Price $2525 Save up to $ 1082
- Repair Price $1804 Save up to $ 1803
E00412XP3YAX132MF3-W WEG | BUY OR REPAIR
Overview
WEG Electric Motors, AC Motors – IEC, Hazardous Area IEC – Ex/ATEX, Ex-db, TEFC W22Xdb, W22Xdb IE2 4 kW 6P 132S/M 3Ph 380-415/660//460 V 50 Hz IC411 – TEFC – B3T. Repair Service, Troubleshooting, Replacement Parts Inventory, Sales and Supply. CALL 877-249-1701 or Chat with a representative to repair or buy WEG products.
Features
- Standard IEC 60034-1
- Frequency 50 Hz
- Voltage 380-415/660//460 V
- Number of poles 6
- Degree of Protection IP56
- Synchronous speed 1000 rpm
- Output rating 4 kW
- Mounting Foot-mounted
- Flange Without
- Mounting B3T
- Terminal box Top
- Enclosure IC411 - TEFC
- Frame 132S/M
- Output 4 kW (5.5 HP)
- Number of Poles 6
- Frequency 50 Hz
- Rated speed 960 rpm
- Slip 4.00 %
- Rated voltage 380/660 V
- Rated current 9.71/5.59 A
- L. R. Amperes 53.4/30.7 A
- LRC 5.5
- No load current 4.70/2.71 A
- Rated torque 29.4 ft.lb
- Locked rotor torque 170 %
- Breakdown torque 200 %
- Locked rotor time 37s (cold) 21s (hot)
- Moment of inertia (J) 1.07 sq.ft.lb
- Design N
- Insulation Class F
- Service factor 1.00
- Temperature rise 80 K
- Duty Cycle S1
- Starting Method Direct On Line
- Ambient temperature -20degC to +40degC
- Altitude 1000 m.a.s.l.
- Degree of Protection IP56
- Enclosure IC411 - TEFC
- Mounting B3T
- Rotation Both (CW and CCW)
- Noise level 53.0 dB(A)
- Approx. weight 234 lb
