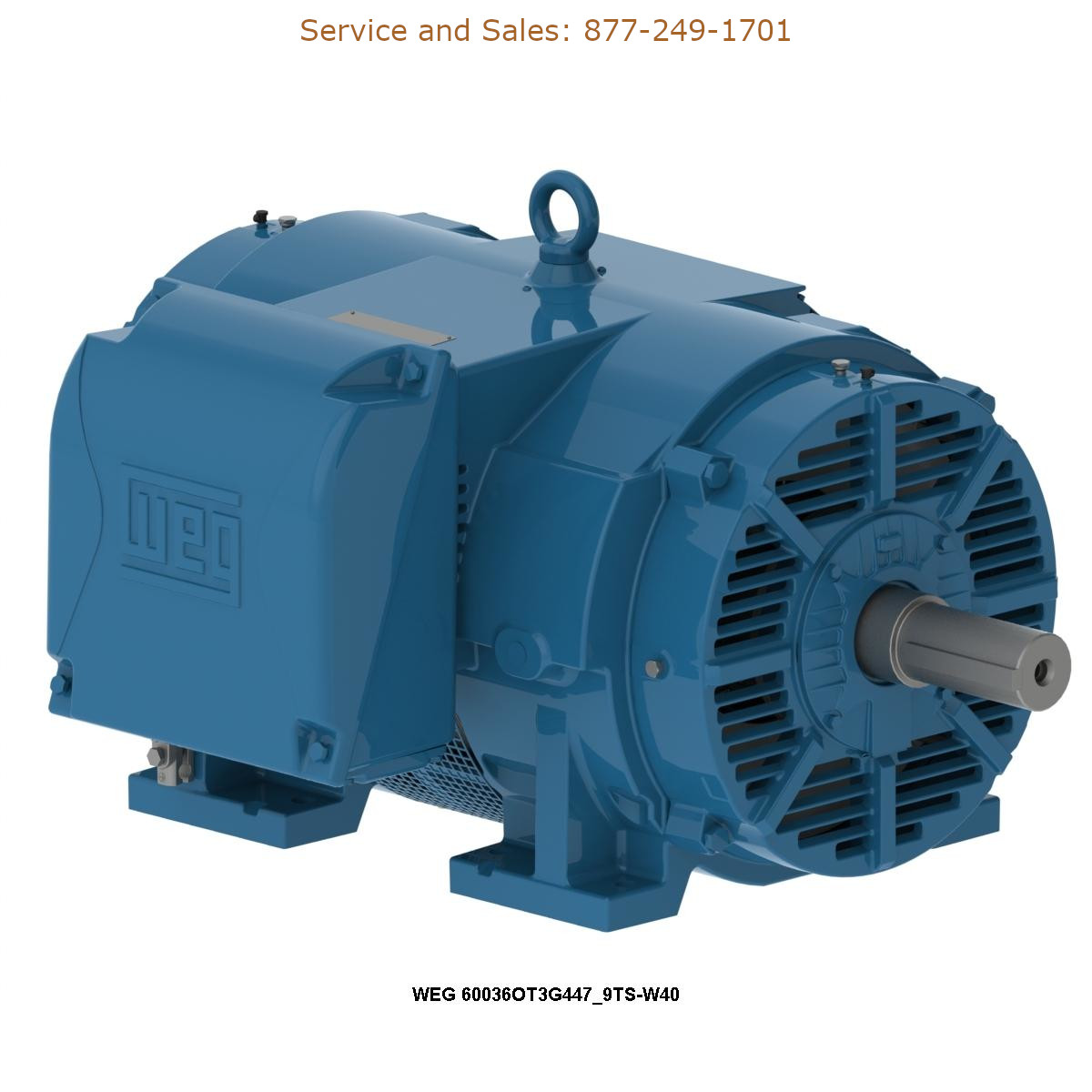

WEG Model Number 60036OT3G447/9TS-W40 WEG Electric Motors, AC Motors – NEMA Repair Service, Troubleshooting, Replacement Parts
WEG 60036OT3G447/9TS-W40 WEG Model Number 60036OT3G447/9TS-W40 WEG Electric Motors, AC Motors – NEMA Repair Service, Troubleshooting, Replacement Parts
Key Features
- Standard NEMA MG-1
- Frequency 60 Hz
- Voltage 460 V
- Number of poles 2
- Degree of Protection IP23
- Synchronous speed 3600 rpm
- Output rating 600 HP
- Mounting Foot-mounted
- Flange Without
- Mounting F-1
- Terminal box Left position
- Enclosure IC01 - ODP
- Frame 447/9TS
- Output 600 HP (440 kW)
- Number of Poles 2
- Frequency 60 Hz
- Rated speed 3565 rpm
- Slip 0.97 %
- Rated voltage 460 V
- Rated current 645 A
- L. R. Amperes 5096 A
- LRC 7.9x(Code H)
- No load current 165 A
- Rated torque 884 ft.lb
- Locked rotor torque 190 %
- Breakdown torque 270 %
- Locked rotor time 25s (cold) 14s (hot)
- Moment of inertia (J) 53.6 sq.ft.lb
- Insulation Class F
- Service factor 1.15
- Temperature rise 80 K
- Duty Cycle Cont.(S1)
- Starting Method Direct On Line
- Ambient temperature -20degC to +40degC
- Altitude 1000 m.a.s.l.
- Degree of Protection IP23
- Enclosure IC01 - ODP
- Mounting F-1
- Rotation Both (CW and CCW)
- Noise level 87.0 dB(A)
- Approx. weight 2333 lb
WEG
- Model #:
- 60036OT3G447/9TS-W40
- Part #:
- 60036OT3G447/9TS-W40
- New/Surplus $ 32994
- Refurb. Price $23096 Save up to $ 9898
- Repair Price $16497 Save up to $ 16497
60036OT3G447/9TS-W40 WEG | BUY OR REPAIR
Overview
WEG Electric Motors, AC Motors – NEMA, General Purpose ODP/TEFC, ODP Cast Iron, W40, W40, W40 NEMA Premium Efficiency 600 HP 2P 447/9TS 3Ph 460 V 60 Hz IC01 – ODP – Foot-mounted. Repair Service, Troubleshooting, Replacement Parts Inventory, Sales and Supply. CALL 877-249-1701 or Chat with a representative to repair or buy WEG products.
Features
- Standard NEMA MG-1
- Frequency 60 Hz
- Voltage 460 V
- Number of poles 2
- Degree of Protection IP23
- Synchronous speed 3600 rpm
- Output rating 600 HP
- Mounting Foot-mounted
- Flange Without
- Mounting F-1
- Terminal box Left position
- Enclosure IC01 - ODP
- Frame 447/9TS
- Output 600 HP (440 kW)
- Number of Poles 2
- Frequency 60 Hz
- Rated speed 3565 rpm
- Slip 0.97 %
- Rated voltage 460 V
- Rated current 645 A
- L. R. Amperes 5096 A
- LRC 7.9x(Code H)
- No load current 165 A
- Rated torque 884 ft.lb
- Locked rotor torque 190 %
- Breakdown torque 270 %
- Locked rotor time 25s (cold) 14s (hot)
- Moment of inertia (J) 53.6 sq.ft.lb
- Insulation Class F
- Service factor 1.15
- Temperature rise 80 K
- Duty Cycle Cont.(S1)
- Starting Method Direct On Line
- Ambient temperature -20degC to +40degC
- Altitude 1000 m.a.s.l.
- Degree of Protection IP23
- Enclosure IC01 - ODP
- Mounting F-1
- Rotation Both (CW and CCW)
- Noise level 87.0 dB(A)
- Approx. weight 2333 lb
