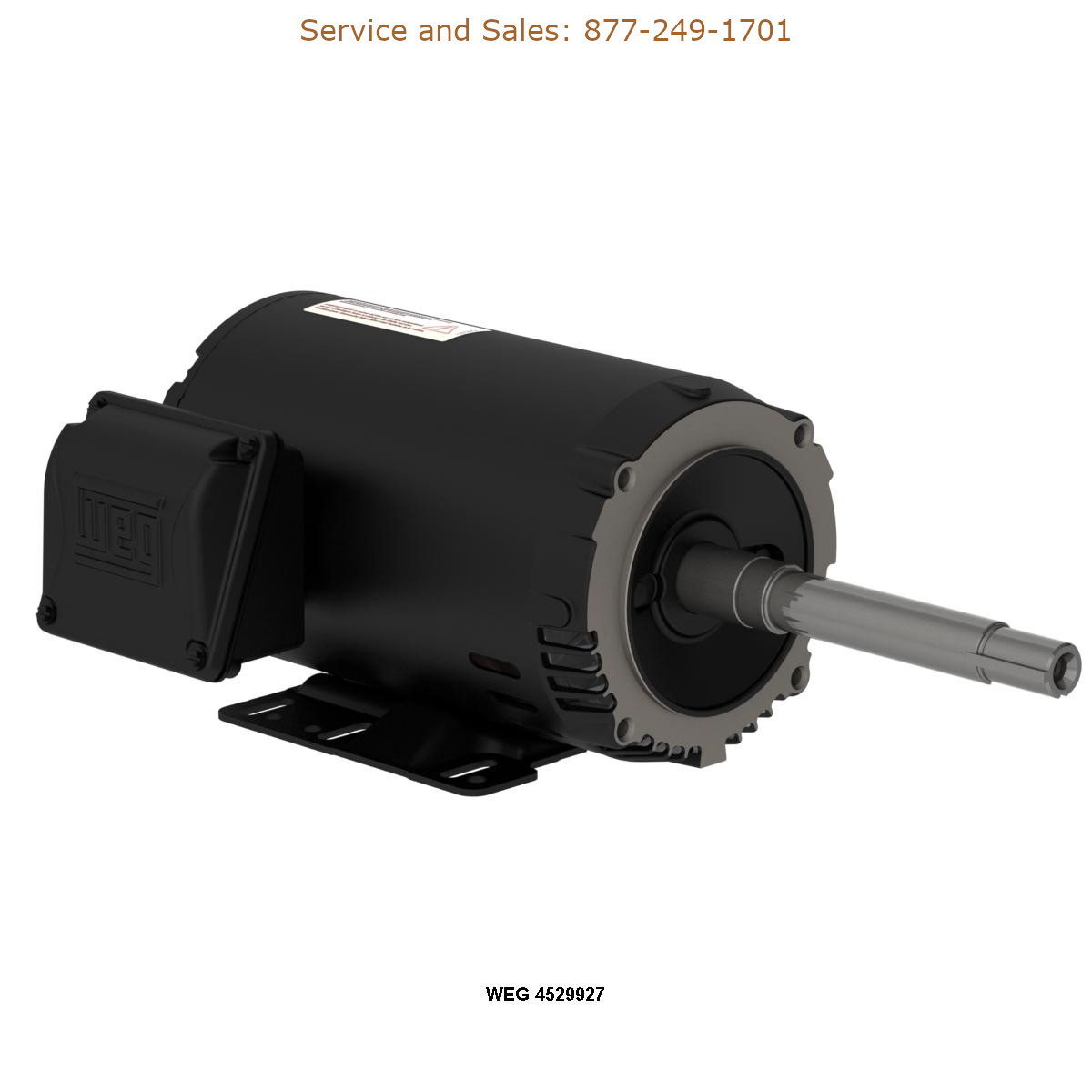

WEG Model Number 4529927 WEG Electric Motors, AC Motors – NEMA Repair Service, Troubleshooting, Replacement Parts
WEG 4529927 WEG Model Number 4529927 WEG Electric Motors, AC Motors – NEMA Repair Service, Troubleshooting, Replacement Parts
Key Features
- Standard NEMA MG-1
- Frequency 60//50 Hz
- Voltage 230/460//190-220/380-415 V
- Number of poles 4
- Synchronous speed 1800 rpm
- Output rating 2 HP
- Mounting Foot-mounted
- Flange C
- Mounting F-1
- Terminal box Left position
- Enclosure IC01 - ODP
- Frame 143/5JP
- Output 2 HP (1.5 kW)
- Number of Poles 4
- Frequency 60 Hz
- Rated speed 1745 rpm
- Slip 3.06 %
- Rated voltage 230/460 V
- Rated current 5.82/2.91 A
- L. R. Amperes 43.1/21.5 A
- LRC 7.4x(Code K)
- No load current 3.56/1.78 A
- Rated torque 6.02 ft.lb
- Locked rotor torque 260 %
- Breakdown torque 310 %
- Locked rotor time 18s (cold) 10s (hot)
- Moment of inertia (J) 0.1296 sq.ft.lb
- Design B
- Insulation Class F
- Temperature rise 80 K
- Service factor 1.15 (1.00 @ 208V)
- Duty Cycle Cont.(S1)
- Starting Method Direct On Line
- Ambient temperature -20degC to +40degC
- Altitude 1000 m.a.s.l.
- Enclosure IC01 - ODP
- Mounting F-1
- Rotation Both (CW and CCW)
- Noise level 52.0 dB(A)
- Approx. weight 41.9 lb
WEG
- Model #:
- 4529927
- Part #:
- 4529927
4529927 WEG | BUY OR REPAIR
Overview
WEG Electric Motors, AC Motors – NEMA, Pump, Close Coupled JM/JP, Close Coupled JM/JP, W01 JM/JP Type – Rolled Steel, Rolled Steel JP Pump High Efficiency 2 HP 4P 143/5JP 3Ph 230/460//190-220/380-415 V 60 Hz IC01 – ODP – Foot-mounted. Repair Service, Troubleshooting, Replacement Parts Inventory, Sales and Supply. CALL 877-249-1701 or Chat with a representative to repair or buy WEG products.
Features
- Standard NEMA MG-1
- Frequency 60//50 Hz
- Voltage 230/460//190-220/380-415 V
- Number of poles 4
- Synchronous speed 1800 rpm
- Output rating 2 HP
- Mounting Foot-mounted
- Flange C
- Mounting F-1
- Terminal box Left position
- Enclosure IC01 - ODP
- Frame 143/5JP
- Output 2 HP (1.5 kW)
- Number of Poles 4
- Frequency 60 Hz
- Rated speed 1745 rpm
- Slip 3.06 %
- Rated voltage 230/460 V
- Rated current 5.82/2.91 A
- L. R. Amperes 43.1/21.5 A
- LRC 7.4x(Code K)
- No load current 3.56/1.78 A
- Rated torque 6.02 ft.lb
- Locked rotor torque 260 %
- Breakdown torque 310 %
- Locked rotor time 18s (cold) 10s (hot)
- Moment of inertia (J) 0.1296 sq.ft.lb
- Design B
- Insulation Class F
- Temperature rise 80 K
- Service factor 1.15 (1.00 @ 208V)
- Duty Cycle Cont.(S1)
- Starting Method Direct On Line
- Ambient temperature -20degC to +40degC
- Altitude 1000 m.a.s.l.
- Enclosure IC01 - ODP
- Mounting F-1
- Rotation Both (CW and CCW)
- Noise level 52.0 dB(A)
- Approx. weight 41.9 lb
