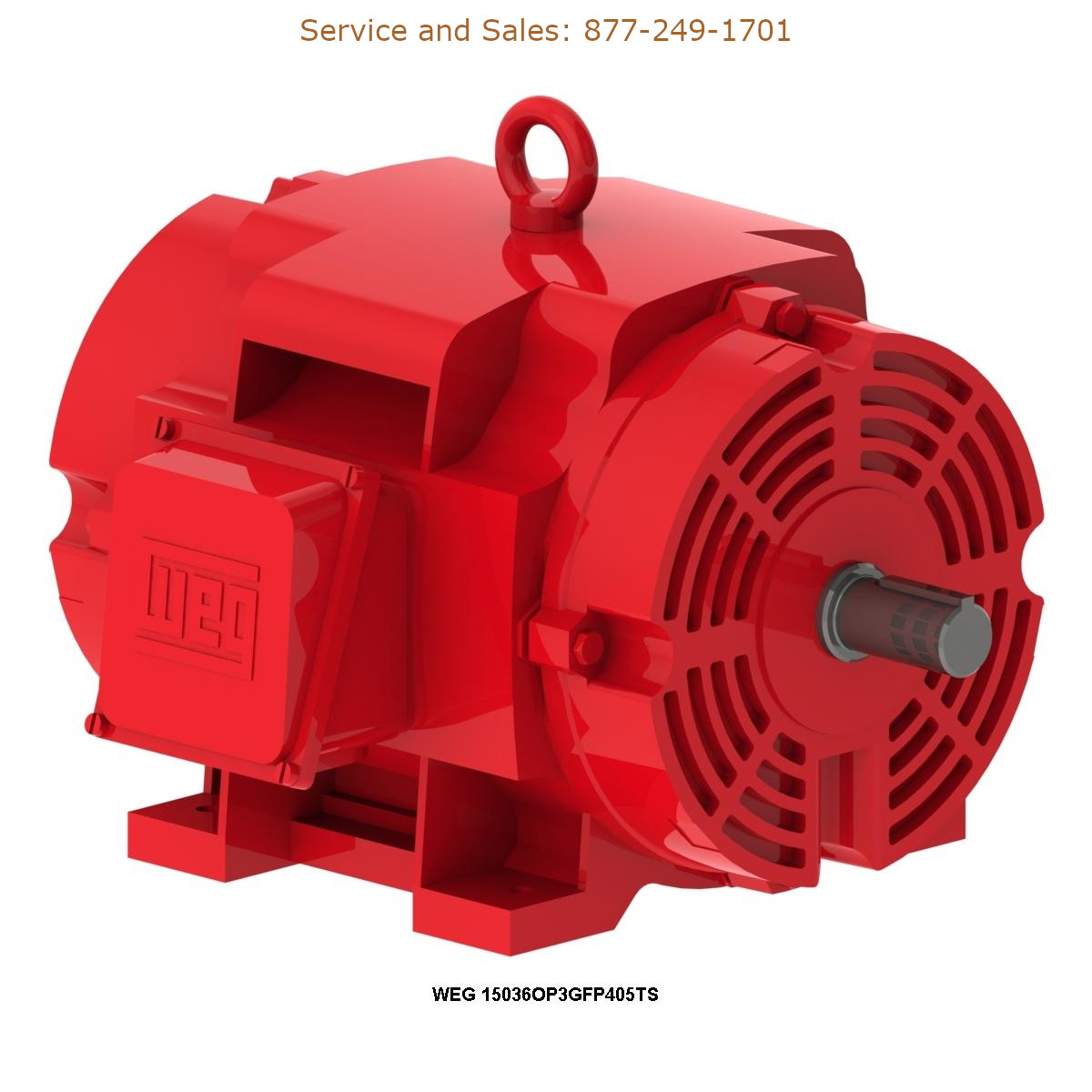

WEG Model Number 15036OP3GFP405TS WEG Electric Motors, AC Motors – NEMA Repair Service, Troubleshooting, Replacement Parts
WEG 15036OP3GFP405TS WEG Model Number 15036OP3GFP405TS WEG Electric Motors, AC Motors – NEMA Repair Service, Troubleshooting, Replacement Parts
Key Features
- Standard NEMA MG-1
- Frequency 60 Hz
- Voltage 460 V
- Number of poles 2
- Degree of Protection IP23
- Synchronous speed 3600 rpm
- Output rating 150 HP
- Mounting Foot-mounted
- Flange Without
- Mounting F-1
- Terminal box Left position
- Enclosure IC01 - ODP
- Frame 404/5TS
- Output 150 HP (110 kW)
- Number of Poles 2
- Frequency 60 Hz
- Rated speed 3555 rpm
- Slip 1.25 %
- Rated voltage 460 V
- Rated current 168 A
- L. R. Amperes 1075 A
- LRC 6.4x(Code G)
- No load current 35.0 A
- Rated torque 222 ft.lb
- Locked rotor torque 200 %
- Breakdown torque 250 %
- Locked rotor time 18s (cold) 10s (hot)
- Moment of inertia (J) 11.9 sq.ft.lb
- Design B
- Insulation Class F
- Service factor 1.15
- Temperature rise 105 K
- Duty Cycle Cont.(S1)
- Starting Method Direct On Line
- Ambient temperature -20degC to +40degC
- Altitude 1000 m.a.s.l.
- Degree of Protection IP23
- Enclosure IC01 - ODP
- Mounting F-1
- Rotation Both (CW and CCW)
- Noise level 84.0 dB(A)
- Approx. weight 1018 lb
WEG
- Model #:
- 15036OP3GFP405TS
- Part #:
- 15036OP3GFP405TS
- New/Surplus $ 10042
- Refurb. Price $7029 Save up to $ 3013
- Repair Price $5021 Save up to $ 5021
15036OP3GFP405TS WEG | BUY OR REPAIR
Overview
WEG Electric Motors, AC Motors – NEMA, Pump, Fire Pump, ODP, ODP High Efficiency 150 HP 2P 404/5TS 3Ph 460 V 60 Hz IC01 – ODP – Foot-mounted. Repair Service, Troubleshooting, Replacement Parts Inventory, Sales and Supply. CALL 877-249-1701 or Chat with a representative to repair or buy WEG products.
Features
- Standard NEMA MG-1
- Frequency 60 Hz
- Voltage 460 V
- Number of poles 2
- Degree of Protection IP23
- Synchronous speed 3600 rpm
- Output rating 150 HP
- Mounting Foot-mounted
- Flange Without
- Mounting F-1
- Terminal box Left position
- Enclosure IC01 - ODP
- Frame 404/5TS
- Output 150 HP (110 kW)
- Number of Poles 2
- Frequency 60 Hz
- Rated speed 3555 rpm
- Slip 1.25 %
- Rated voltage 460 V
- Rated current 168 A
- L. R. Amperes 1075 A
- LRC 6.4x(Code G)
- No load current 35.0 A
- Rated torque 222 ft.lb
- Locked rotor torque 200 %
- Breakdown torque 250 %
- Locked rotor time 18s (cold) 10s (hot)
- Moment of inertia (J) 11.9 sq.ft.lb
- Design B
- Insulation Class F
- Service factor 1.15
- Temperature rise 105 K
- Duty Cycle Cont.(S1)
- Starting Method Direct On Line
- Ambient temperature -20degC to +40degC
- Altitude 1000 m.a.s.l.
- Degree of Protection IP23
- Enclosure IC01 - ODP
- Mounting F-1
- Rotation Both (CW and CCW)
- Noise level 84.0 dB(A)
- Approx. weight 1018 lb
