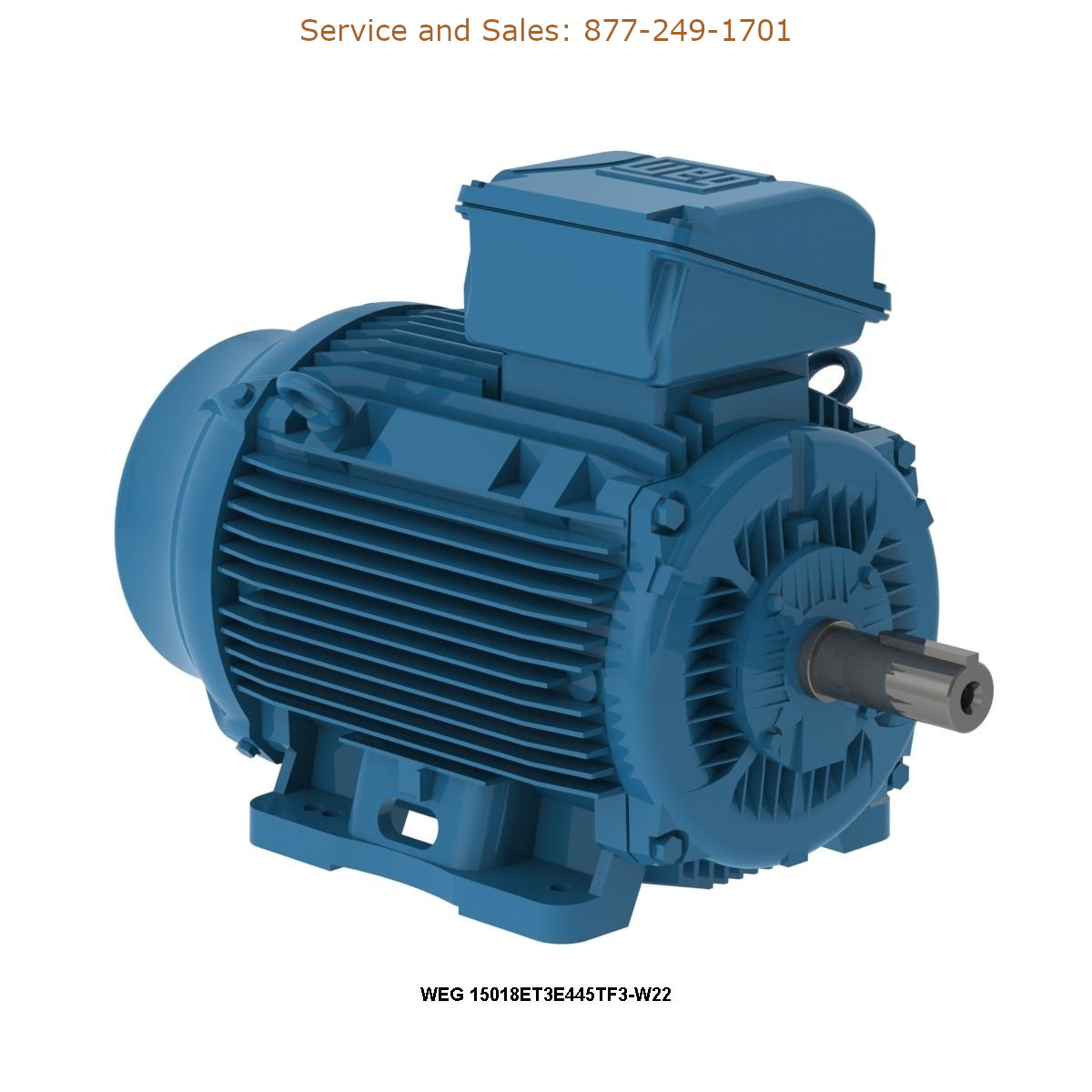

WEG Model Number 15018ET3E445TF3-W22 WEG Electric Motors, AC Motors – NEMA Repair Service, Troubleshooting, Replacement Parts
WEG 15018ET3E445TF3-W22 WEG Model Number 15018ET3E445TF3-W22 WEG Electric Motors, AC Motors – NEMA Repair Service, Troubleshooting, Replacement Parts
Key Features
- Standard NEMA MG-1
- Frequency 60//50 Hz
- Voltage 230/460//380 V
- Number of poles 4
- Degree of Protection IP55
- Synchronous speed 1800 rpm
- Output rating 150 HP
- Mounting Foot-mounted
- Flange Without
- Mounting F-3
- Terminal box Top
- Enclosure IC411 - TEFC
- Frame 444/5T
- Output 150 HP (110 kW)
- Number of Poles 4
- Frequency 60 Hz
- Rated speed 1780 rpm
- Slip 1.11 %
- Rated voltage 230/460 V
- Rated current 340/170 A
- L. R. Amperes 2244/1122 A
- LRC 6.6x(Code G)
- No load current 116/58.0 A
- Rated torque 443 ft.lb
- Locked rotor torque 200 %
- Breakdown torque 250 %
- Locked rotor time 48s (cold) 27s (hot)
- Moment of inertia (J) 66.7 sq.ft.lb
- Design B
- Insulation Class F
- Service factor 1.15
- Temperature rise 80 K
- Duty Cycle Cont.(S1)
- Starting Method Direct On Line
- Ambient temperature -20degC to +40degC
- Altitude 1000 m.a.s.l.
- Degree of Protection IP55
- Enclosure IC411 - TEFC
- Mounting F-3
- Rotation Both (CW and CCW)
- Noise level 73.0 dB(A)
- Approx. weight 1874 lb
WEG
- Model #:
- 15018ET3E445TF3-W22
- Part #:
- 15018ET3E445TF3-W22
- New/Surplus $ 17943
- Refurb. Price $12560 Save up to $ 5383
- Repair Price $8972 Save up to $ 8971
15018ET3E445TF3-W22 WEG | BUY OR REPAIR
Overview
WEG Electric Motors, AC Motors – NEMA, General Purpose ODP/TEFC, TEFC Cast Iron, W22, W22, W22 NEMA Premium Efficiency 150 HP 4P 444/5T 3Ph 230/460//380 V 60//50 Hz IC411 – TEFC – Foot-mounted. Repair Service, Troubleshooting, Replacement Parts Inventory, Sales and Supply. CALL 877-249-1701 or Chat with a representative to repair or buy WEG products.
Features
- Standard NEMA MG-1
- Frequency 60//50 Hz
- Voltage 230/460//380 V
- Number of poles 4
- Degree of Protection IP55
- Synchronous speed 1800 rpm
- Output rating 150 HP
- Mounting Foot-mounted
- Flange Without
- Mounting F-3
- Terminal box Top
- Enclosure IC411 - TEFC
- Frame 444/5T
- Output 150 HP (110 kW)
- Number of Poles 4
- Frequency 60 Hz
- Rated speed 1780 rpm
- Slip 1.11 %
- Rated voltage 230/460 V
- Rated current 340/170 A
- L. R. Amperes 2244/1122 A
- LRC 6.6x(Code G)
- No load current 116/58.0 A
- Rated torque 443 ft.lb
- Locked rotor torque 200 %
- Breakdown torque 250 %
- Locked rotor time 48s (cold) 27s (hot)
- Moment of inertia (J) 66.7 sq.ft.lb
- Design B
- Insulation Class F
- Service factor 1.15
- Temperature rise 80 K
- Duty Cycle Cont.(S1)
- Starting Method Direct On Line
- Ambient temperature -20degC to +40degC
- Altitude 1000 m.a.s.l.
- Degree of Protection IP55
- Enclosure IC411 - TEFC
- Mounting F-3
- Rotation Both (CW and CCW)
- Noise level 73.0 dB(A)
- Approx. weight 1874 lb
