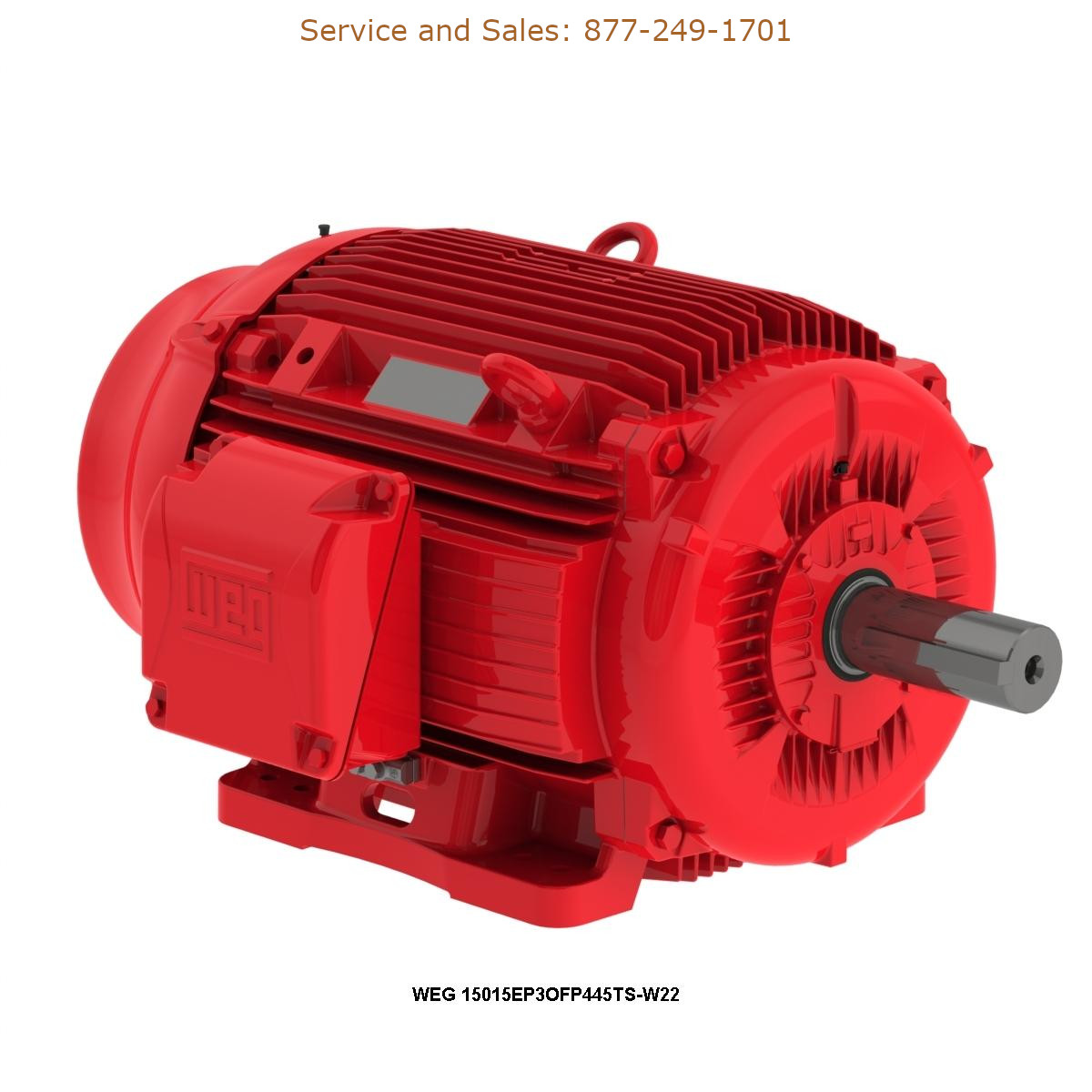

WEG Model Number 15015EP3OFP445TS-W22 WEG Electric Motors, AC Motors – NEMA Repair Service, Troubleshooting, Replacement Parts
WEG 15015EP3OFP445TS-W22 WEG Model Number 15015EP3OFP445TS-W22 WEG Electric Motors, AC Motors – NEMA Repair Service, Troubleshooting, Replacement Parts
Key Features
- Standard NEMA MG-1
- Frequency 50 Hz
- Voltage 380-415 V
- Number of poles 4
- Degree of Protection IP55
- Synchronous speed 1500 rpm
- Output rating 150 HP
- Mounting Foot-mounted
- Flange Without
- Mounting F-1
- Terminal box Left position
- Enclosure IC411 - TEFC
- Frame 444/5TS
- Output 150 HP (110 kW)
- Number of Poles 4
- Frequency 50 Hz
- Rated speed 1475 rpm
- Slip 1.67 %
- Rated voltage 380 V
- Rated current 205 A
- L. R. Amperes 1148 A
- LRC 5.6x(Code F)
- No load current 57.0 A
- Rated torque 534 ft.lb
- Locked rotor torque 165 %
- Breakdown torque 210 %
- Locked rotor time 45s (cold) 25s (hot)
- Design B
- Insulation Class F
- Service factor 1.15
- Temperature rise 80 K
- Duty Cycle Cont.(S1)
- Starting Method Direct On Line
- Ambient temperature -20degC to +40degC
- Altitude 1000 m.a.s.l.
- Degree of Protection IP55
- Enclosure IC411 - TEFC
- Mounting F-1
- Rotation Both (CW and CCW)
- Noise level 69.0 dB(A)
- Approx. weight 2040 lb
WEG
- Model #:
- 15015EP3OFP445TS-W22
- Part #:
- 15015EP3OFP445TS-W22
- New/Surplus $ 16549
- Refurb. Price $11584 Save up to $ 4965
- Repair Price $8275 Save up to $ 8274
15015EP3OFP445TS-W22 WEG | BUY OR REPAIR
Overview
WEG Electric Motors, AC Motors – NEMA, Pump, Fire Pump, TEFC W22, W22 High Efficiency 150 HP 4P 444/5TS 3Ph 380-415 V 50 Hz IC411 – TEFC – Foot-mounted. Repair Service, Troubleshooting, Replacement Parts Inventory, Sales and Supply. CALL 877-249-1701 or Chat with a representative to repair or buy WEG products.
Features
- Standard NEMA MG-1
- Frequency 50 Hz
- Voltage 380-415 V
- Number of poles 4
- Degree of Protection IP55
- Synchronous speed 1500 rpm
- Output rating 150 HP
- Mounting Foot-mounted
- Flange Without
- Mounting F-1
- Terminal box Left position
- Enclosure IC411 - TEFC
- Frame 444/5TS
- Output 150 HP (110 kW)
- Number of Poles 4
- Frequency 50 Hz
- Rated speed 1475 rpm
- Slip 1.67 %
- Rated voltage 380 V
- Rated current 205 A
- L. R. Amperes 1148 A
- LRC 5.6x(Code F)
- No load current 57.0 A
- Rated torque 534 ft.lb
- Locked rotor torque 165 %
- Breakdown torque 210 %
- Locked rotor time 45s (cold) 25s (hot)
- Design B
- Insulation Class F
- Service factor 1.15
- Temperature rise 80 K
- Duty Cycle Cont.(S1)
- Starting Method Direct On Line
- Ambient temperature -20degC to +40degC
- Altitude 1000 m.a.s.l.
- Degree of Protection IP55
- Enclosure IC411 - TEFC
- Mounting F-1
- Rotation Both (CW and CCW)
- Noise level 69.0 dB(A)
- Approx. weight 2040 lb
