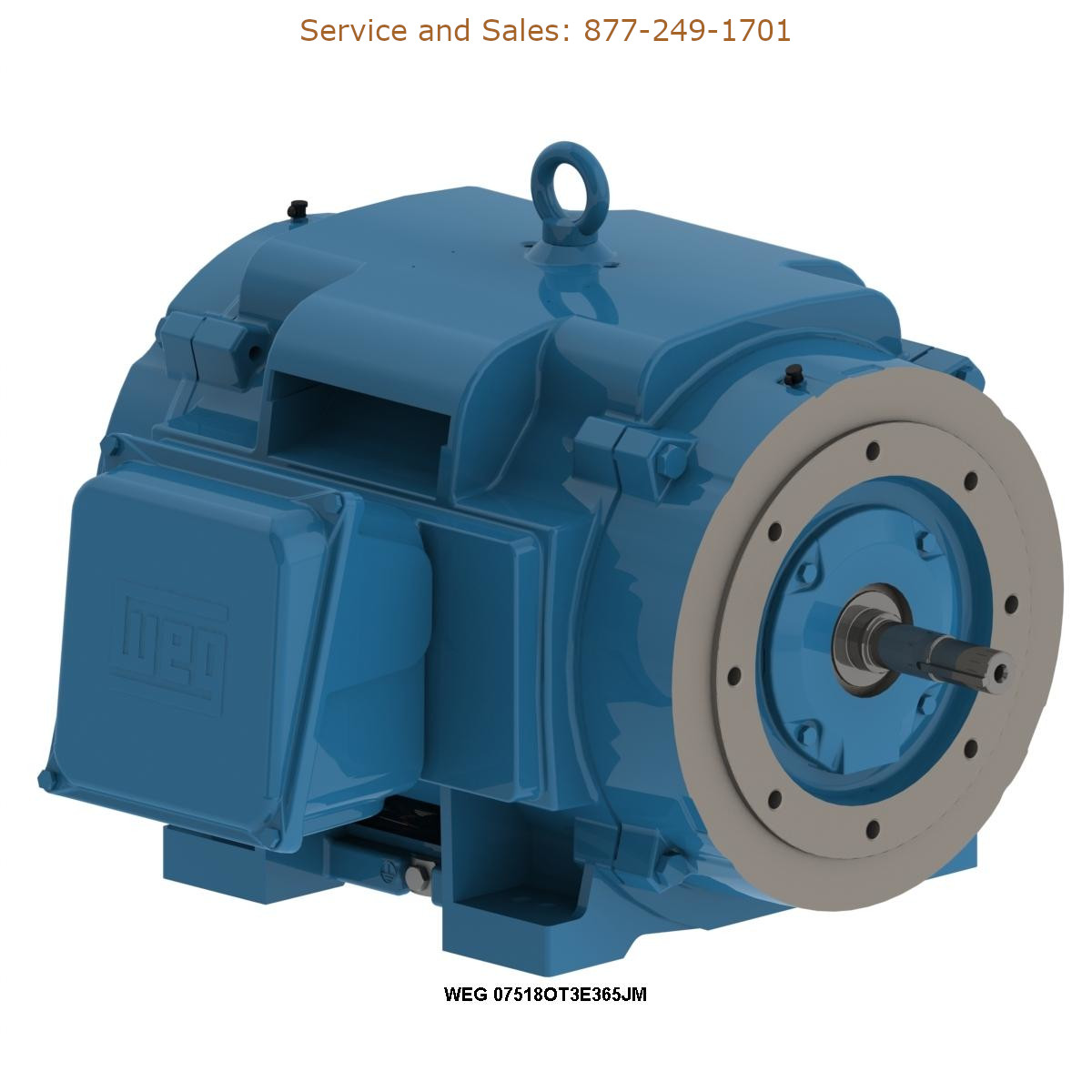

WEG Model Number 07518OT3E365JM WEG Electric Motors, AC Motors – NEMA Repair Service, Troubleshooting, Replacement Parts
WEG 07518OT3E365JM WEG Model Number 07518OT3E365JM WEG Electric Motors, AC Motors – NEMA Repair Service, Troubleshooting, Replacement Parts
Key Features
- Standard NEMA MG-1
- Frequency 60 Hz
- Voltage 230/460 V
- Number of poles 4
- Degree of Protection IP23
- Synchronous speed 1800 rpm
- Output rating 75 HP
- Mounting Foot-mounted
- Flange C
- Mounting F-1
- Terminal box Left position
- Enclosure IC01 - ODP
- Frame 364/5JM
- Output 75 HP (55 kW)
- Number of Poles 4
- Frequency 60 Hz
- Rated speed 1780 rpm
- Slip 1.11 %
- Rated voltage 230/460 V
- Rated current 167/83.5 A
- L. R. Amperes 1119/559 A
- LRC 6.7x(Code G)
- No load current 54.0/27.0 A
- Rated torque 221 ft.lb
- Locked rotor torque 210 %
- Breakdown torque 260 %
- Locked rotor time 25s (cold) 14s (hot)
- Moment of inertia (J) 19.5 sq.ft.lb
- Design B
- Insulation Class F
- Service factor 1.15
- Temperature rise 80 K
- Duty Cycle Cont.(S1)
- Starting Method Direct On Line
- Ambient temperature -20degC to +40degC
- Altitude 1000 m.a.s.l.
- Degree of Protection IP23
- Enclosure IC01 - ODP
- Mounting F-1
- Rotation Both (CW and CCW)
- Noise level 68.0 dB(A)
- Approx. weight 858 lb
WEG
- Model #:
- 07518OT3E365JM
- Part #:
- 07518OT3E365JM
- New/Surplus $ 6932
- Refurb. Price $4852 Save up to $ 2080
- Repair Price $3466 Save up to $ 3466
07518OT3E365JM WEG | BUY OR REPAIR
Overview
WEG Electric Motors, AC Motors – NEMA, Pump, Close Coupled JM/JP, Close Coupled JM/JP, ODP JM/JP Type, ODP, Close Coupled Pump NEMA Premium Efficiency 75 HP 4P 364/5JM 3Ph 230/460 V 60 Hz IC01 – ODP – Foot-mounted. Repair Service, Troubleshooting, Replacement Parts Inventory, Sales and Supply. CALL 877-249-1701 or Chat with a representative to repair or buy WEG products.
Features
- Standard NEMA MG-1
- Frequency 60 Hz
- Voltage 230/460 V
- Number of poles 4
- Degree of Protection IP23
- Synchronous speed 1800 rpm
- Output rating 75 HP
- Mounting Foot-mounted
- Flange C
- Mounting F-1
- Terminal box Left position
- Enclosure IC01 - ODP
- Frame 364/5JM
- Output 75 HP (55 kW)
- Number of Poles 4
- Frequency 60 Hz
- Rated speed 1780 rpm
- Slip 1.11 %
- Rated voltage 230/460 V
- Rated current 167/83.5 A
- L. R. Amperes 1119/559 A
- LRC 6.7x(Code G)
- No load current 54.0/27.0 A
- Rated torque 221 ft.lb
- Locked rotor torque 210 %
- Breakdown torque 260 %
- Locked rotor time 25s (cold) 14s (hot)
- Moment of inertia (J) 19.5 sq.ft.lb
- Design B
- Insulation Class F
- Service factor 1.15
- Temperature rise 80 K
- Duty Cycle Cont.(S1)
- Starting Method Direct On Line
- Ambient temperature -20degC to +40degC
- Altitude 1000 m.a.s.l.
- Degree of Protection IP23
- Enclosure IC01 - ODP
- Mounting F-1
- Rotation Both (CW and CCW)
- Noise level 68.0 dB(A)
- Approx. weight 858 lb
