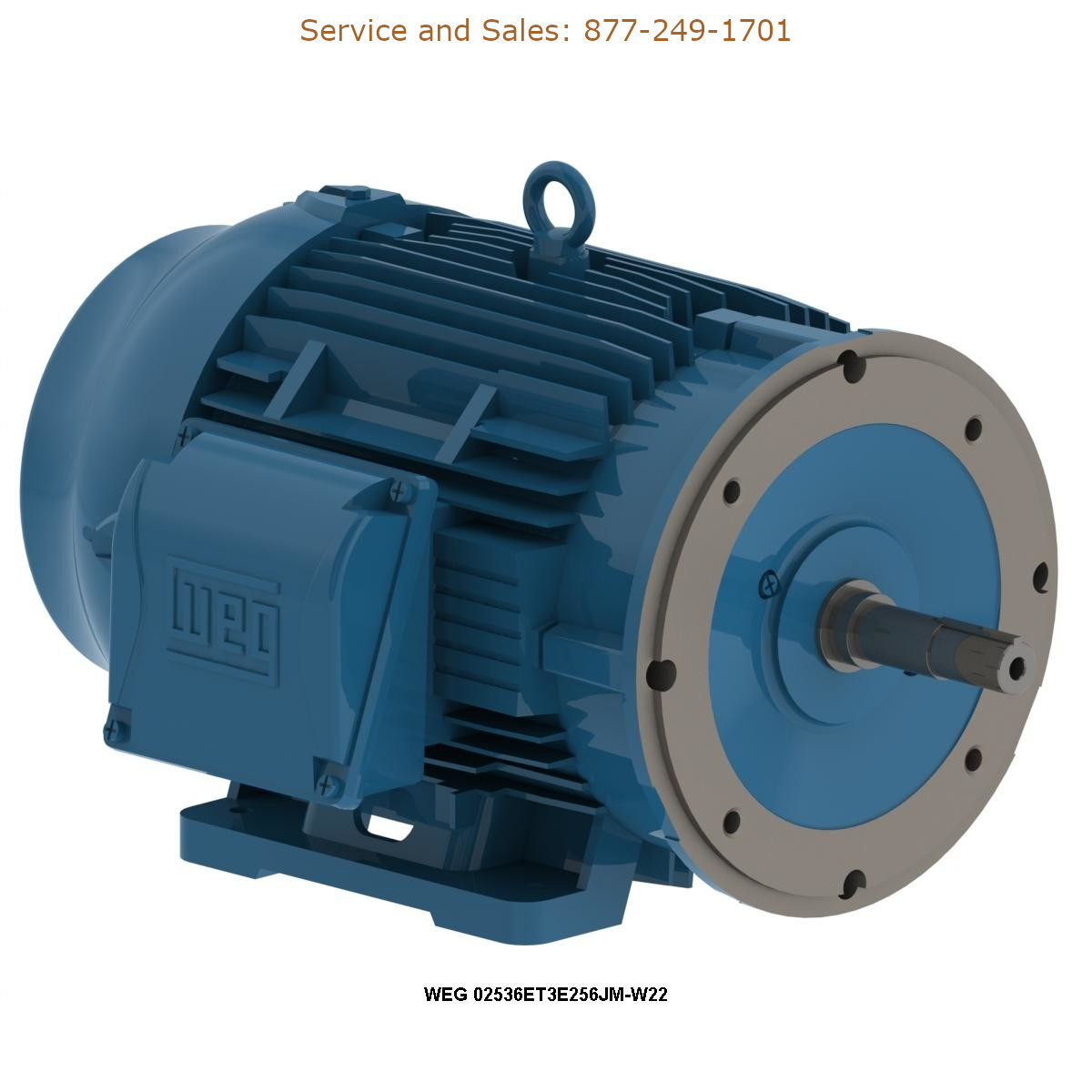

WEG Model Number 02536ET3E256JM-W22 WEG Electric Motors, AC Motors – NEMA Repair Service, Troubleshooting, Replacement Parts
WEG 02536ET3E256JM-W22 WEG Model Number 02536ET3E256JM-W22 WEG Electric Motors, AC Motors – NEMA Repair Service, Troubleshooting, Replacement Parts
Key Features
- Standard NEMA MG-1
- Frequency 60 Hz
- Voltage 208-230/460 V
- Number of poles 2
- Degree of Protection IP55
- Synchronous speed 3600 rpm
- Output rating 25 HP
- Mounting Foot-mounted
- Flange C
- Mounting F-1
- Terminal box Left position
- Enclosure IC411 - TEFC
- Frame 254/6JM
- Output 25 HP (18.5 kW)
- Number of Poles 2
- Frequency 60 Hz
- Rated speed 3515 rpm
- Slip 2.36 %
- Rated voltage 208-230/460 V
- Rated current 62.2-56.3/28.1 A
- L. R. Amperes 398-360/180 A
- LRC 6.4x(Code G)
- No load current 11.6-13.5/6.75 A
- Rated torque 37.3 ft.lb
- Locked rotor torque 180 %
- Breakdown torque 229 %
- Locked rotor time 32s (cold) 18s (hot)
- Design B
- Insulation Class F
- Temperature rise 80 K
- Duty Cycle Cont.(S1)
- Starting Method Direct On Line
- Ambient temperature -20degC to +40degC
- Altitude 1000 m.a.s.l.
- Degree of Protection IP55
- Enclosure IC411 - TEFC
- Mounting F-1
- Rotation Both (CW and CCW)
- Noise level 72.0 dB(A)
- Approx. weight 326 lb
WEG
- Model #:
- 02536ET3E256JM-W22
- Part #:
- 02536ET3E256JM-W22
- New/Surplus $ 3231
- Refurb. Price $2262 Save up to $ 969
- Repair Price $1616 Save up to $ 1615
02536ET3E256JM-W22 WEG | BUY OR REPAIR
Overview
WEG Electric Motors, AC Motors – NEMA, Pump, Close Coupled JM/JP, Close Coupled JM/JP, W22 JM/JP Type – Cast Iron, W22 Close Coupled Pump JM NEMA Premium Efficiency 25 HP 2P 254/6JM 3Ph 208-230/460 V 60 Hz IC411 – TEFC – Foot-mounted. Repair Service, Troubleshooting, Replacement Parts Inventory, Sales and Supply. CALL 877-249-1701 or Chat with a representative to repair or buy WEG products.
Features
- Standard NEMA MG-1
- Frequency 60 Hz
- Voltage 208-230/460 V
- Number of poles 2
- Degree of Protection IP55
- Synchronous speed 3600 rpm
- Output rating 25 HP
- Mounting Foot-mounted
- Flange C
- Mounting F-1
- Terminal box Left position
- Enclosure IC411 - TEFC
- Frame 254/6JM
- Output 25 HP (18.5 kW)
- Number of Poles 2
- Frequency 60 Hz
- Rated speed 3515 rpm
- Slip 2.36 %
- Rated voltage 208-230/460 V
- Rated current 62.2-56.3/28.1 A
- L. R. Amperes 398-360/180 A
- LRC 6.4x(Code G)
- No load current 11.6-13.5/6.75 A
- Rated torque 37.3 ft.lb
- Locked rotor torque 180 %
- Breakdown torque 229 %
- Locked rotor time 32s (cold) 18s (hot)
- Design B
- Insulation Class F
- Temperature rise 80 K
- Duty Cycle Cont.(S1)
- Starting Method Direct On Line
- Ambient temperature -20degC to +40degC
- Altitude 1000 m.a.s.l.
- Degree of Protection IP55
- Enclosure IC411 - TEFC
- Mounting F-1
- Rotation Both (CW and CCW)
- Noise level 72.0 dB(A)
- Approx. weight 326 lb
