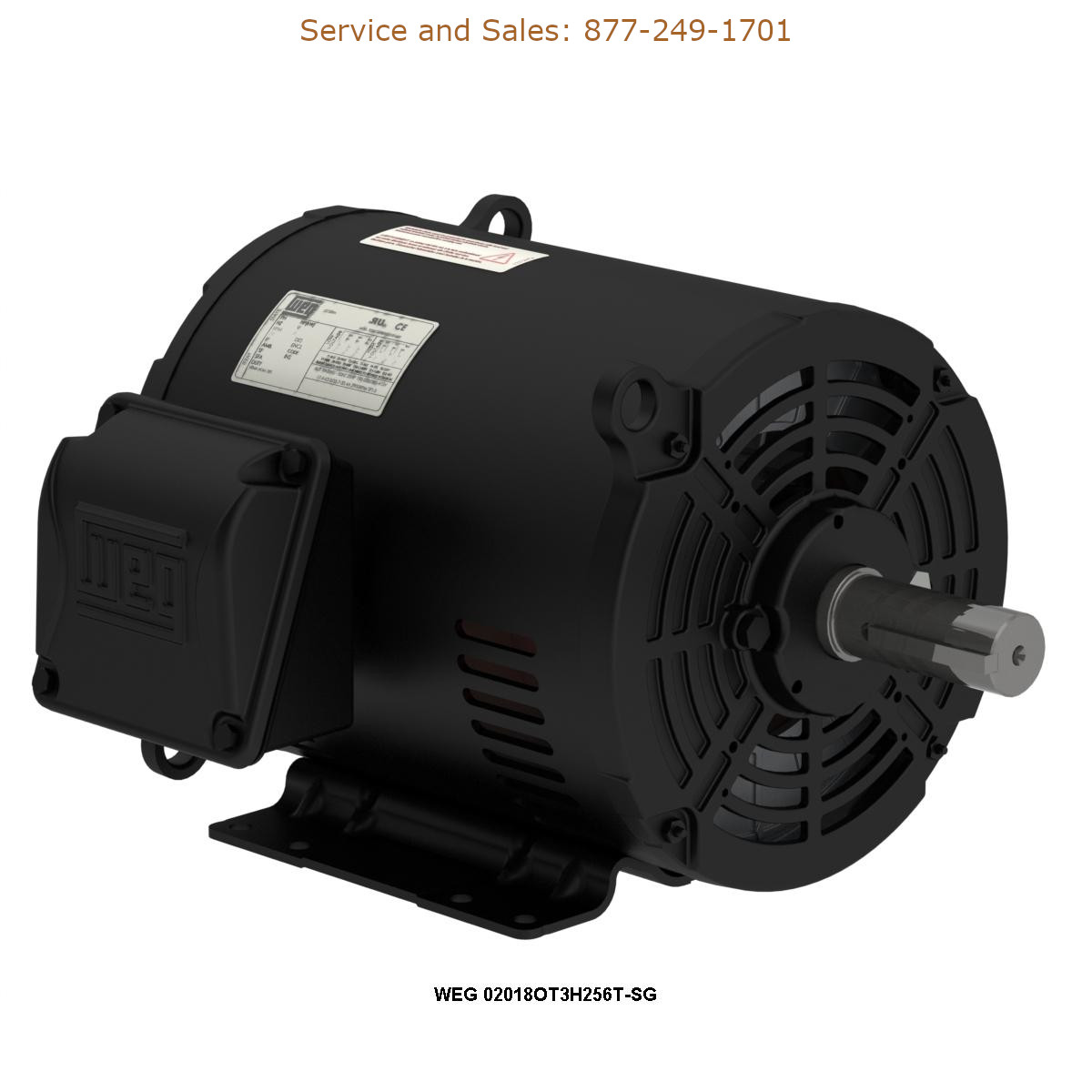

WEG Model Number 02018OT3H256T-SG WEG Electric Motors, AC Motors – NEMA Repair Service, Troubleshooting, Replacement Parts
WEG 02018OT3H256T-SG WEG Model Number 02018OT3H256T-SG WEG Electric Motors, AC Motors – NEMA Repair Service, Troubleshooting, Replacement Parts
Key Features
- Standard NEMA MG-1
- Frequency 60 Hz
- Voltage 575 V
- Number of poles 4
- Synchronous speed 1800 rpm
- Output rating 20 HP
- Mounting Foot-mounted
- Flange Without
- Mounting F-1
- Terminal box Left position
- Enclosure IC01 - ODP
- Frame 254/6T
- Output 20 HP (15 kW)
- Number of Poles 4
- Frequency 60 Hz
- Rated speed 1770 rpm
- Slip 1.67 %
- Rated voltage 575 V
- Rated current 20.0 A
- L. R. Amperes 126 A
- LRC 6.3x(Code G)
- No load current 9.15 A
- Rated torque 59.3 ft.lb
- Locked rotor torque 240 %
- Breakdown torque 290 %
- Locked rotor time 27s (cold) 15s (hot)
- Moment of inertia (J) 2.23 sq.ft.lb
- Design B
- Insulation Class F
- Service factor 1.15
- Temperature rise 80 K
- Duty Cycle Cont.(S1)
- Starting Method Direct On Line
- Ambient temperature -20degC to +40degC
- Altitude 1000 m.a.s.l.
- Enclosure IC01 - ODP
- Mounting F-1
- Rotation Both (CW and CCW)
- Noise level 64.0 dB(A)
- Approx. weight 213 lb
WEG
- Model #:
- 02018OT3H256T-SG
- Part #:
- 02018OT3H256T-SG
- New/Surplus $ 2112
- Refurb. Price $1478 Save up to $ 634
- Repair Price $1056 Save up to $ 1056
02018OT3H256T-SG WEG | BUY OR REPAIR
Overview
WEG Electric Motors, AC Motors – NEMA, Pump, AEGIS Inside, ODP, W01 Rolled Steel, Rolled Steel NEMA Premium Efficiency 20 HP 4P 254/6T 3Ph 575 V 60 Hz IC01 – ODP – Foot-mounted. Repair Service, Troubleshooting, Replacement Parts Inventory, Sales and Supply. CALL 877-249-1701 or Chat with a representative to repair or buy WEG products.
Features
- Standard NEMA MG-1
- Frequency 60 Hz
- Voltage 575 V
- Number of poles 4
- Synchronous speed 1800 rpm
- Output rating 20 HP
- Mounting Foot-mounted
- Flange Without
- Mounting F-1
- Terminal box Left position
- Enclosure IC01 - ODP
- Frame 254/6T
- Output 20 HP (15 kW)
- Number of Poles 4
- Frequency 60 Hz
- Rated speed 1770 rpm
- Slip 1.67 %
- Rated voltage 575 V
- Rated current 20.0 A
- L. R. Amperes 126 A
- LRC 6.3x(Code G)
- No load current 9.15 A
- Rated torque 59.3 ft.lb
- Locked rotor torque 240 %
- Breakdown torque 290 %
- Locked rotor time 27s (cold) 15s (hot)
- Moment of inertia (J) 2.23 sq.ft.lb
- Design B
- Insulation Class F
- Service factor 1.15
- Temperature rise 80 K
- Duty Cycle Cont.(S1)
- Starting Method Direct On Line
- Ambient temperature -20degC to +40degC
- Altitude 1000 m.a.s.l.
- Enclosure IC01 - ODP
- Mounting F-1
- Rotation Both (CW and CCW)
- Noise level 64.0 dB(A)
- Approx. weight 213 lb
