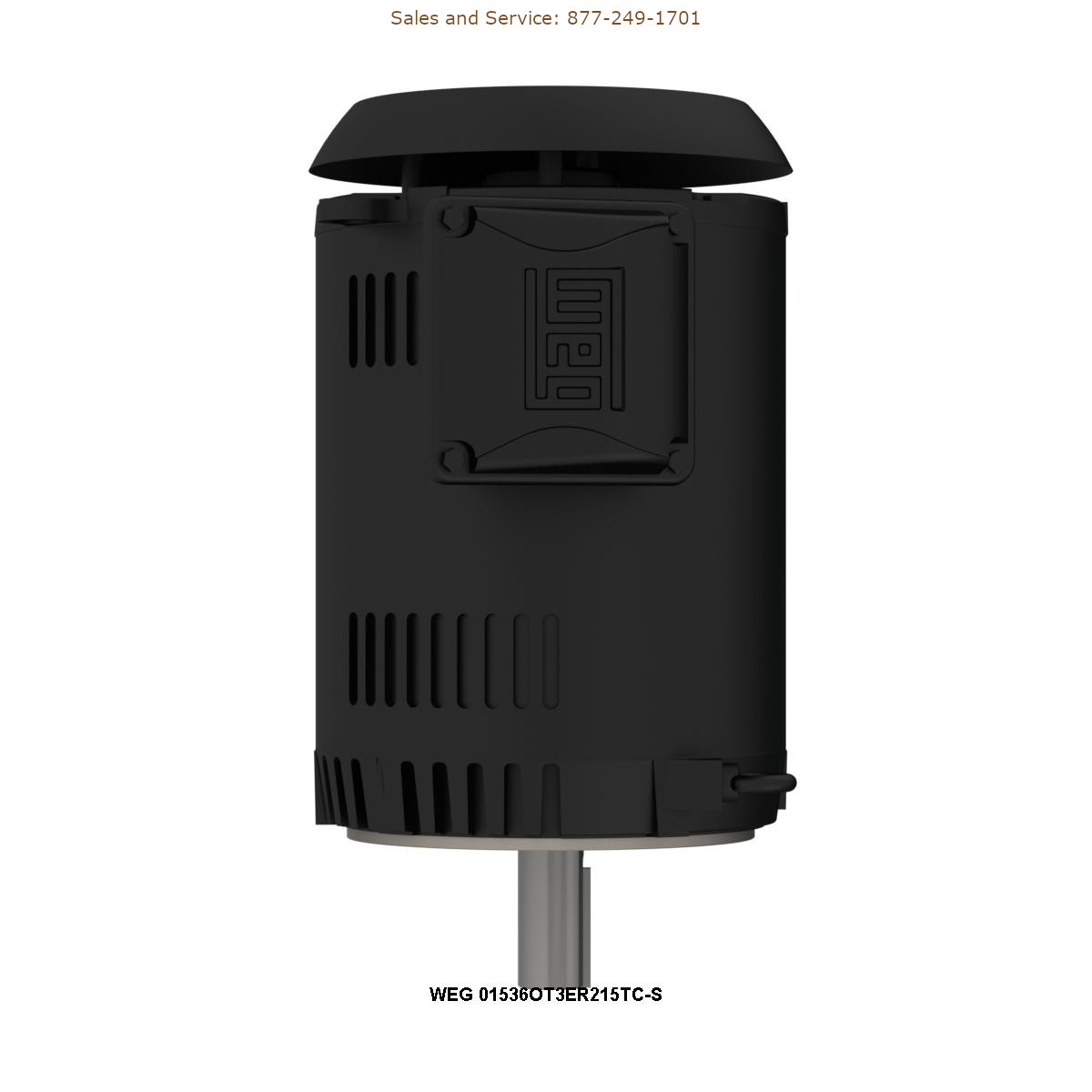

WEG Model Number 01536OT3ER215TC-S WEG Electric Motors, AC Motors – NEMA Repair Service, Troubleshooting, Replacement Parts
WEG 01536OT3ER215TC-S WEG Model Number 01536OT3ER215TC-S WEG Electric Motors, AC Motors – NEMA Repair Service, Troubleshooting, Replacement Parts
Key Features
- Standard NEMA MG-1
- Frequency 60//50 Hz
- Voltage 230/460//190-220/380-415 V
- Number of poles 2
- Synchronous speed 3600 rpm
- Output rating 15 HP
- Mounting Footless
- Flange C
- Mounting W-6
- Terminal box Left position
- Enclosure IC01 - ODP
- Frame 213/5TC
- Output 15 HP (11 kW)
- Number of Poles 2
- Frequency 60 Hz
- Rated speed 3535 rpm
- Slip 1.81 %
- Rated voltage 230/460 V
- Rated current 34.4/17.2 A
- L. R. Amperes 234/117 A
- LRC 6.8x(Code G)
- No load current 12.3/6.17 A
- Rated torque 22.3 ft.lb
- Locked rotor torque 210 %
- Breakdown torque 280 %
- Locked rotor time 14s (cold) 8s (hot)
- Moment of inertia (J) 0.5512 sq.ft.lb
- Design B
- Insulation Class F
- Service factor 1.15
- Temperature rise 80 K
- Duty Cycle Cont.(S1)
- Starting Method Direct On Line
- Ambient temperature -20degC to +40degC
- Altitude 1000 m.a.s.l.
- Enclosure IC01 - ODP
- Mounting W-6
- Rotation Both (CW and CCW)
- Noise level 66.0 dB(A)
- Approx. weight 139 lb
WEG
- Model #:
- 01536OT3ER215TC-S
- Part #:
- 01536OT3ER215TC-S
- New/Surplus $ 1625
- Refurb. Price $1138 Save up to $ 487
- Repair Price $813 Save up to $ 812
01536OT3ER215TC-S WEG | BUY OR REPAIR
Overview
WEG Electric Motors, AC Motors – NEMA, General Purpose ODP/TEFC, ODP Rolled Steel, W01 Rolled Steel, Rolled Steel NEMA Premium Efficiency 15 HP 2P 213/5TC 3Ph 230/460//190-220/380-415 V 60 Hz IC01 – ODP – Footless. Repair Service, Troubleshooting, Replacement Parts Inventory, Sales and Supply. CALL 877-249-1701 or Chat with a representative to repair or buy WEG products.
Features
- Standard NEMA MG-1
- Frequency 60//50 Hz
- Voltage 230/460//190-220/380-415 V
- Number of poles 2
- Synchronous speed 3600 rpm
- Output rating 15 HP
- Mounting Footless
- Flange C
- Mounting W-6
- Terminal box Left position
- Enclosure IC01 - ODP
- Frame 213/5TC
- Output 15 HP (11 kW)
- Number of Poles 2
- Frequency 60 Hz
- Rated speed 3535 rpm
- Slip 1.81 %
- Rated voltage 230/460 V
- Rated current 34.4/17.2 A
- L. R. Amperes 234/117 A
- LRC 6.8x(Code G)
- No load current 12.3/6.17 A
- Rated torque 22.3 ft.lb
- Locked rotor torque 210 %
- Breakdown torque 280 %
- Locked rotor time 14s (cold) 8s (hot)
- Moment of inertia (J) 0.5512 sq.ft.lb
- Design B
- Insulation Class F
- Service factor 1.15
- Temperature rise 80 K
- Duty Cycle Cont.(S1)
- Starting Method Direct On Line
- Ambient temperature -20degC to +40degC
- Altitude 1000 m.a.s.l.
- Enclosure IC01 - ODP
- Mounting W-6
- Rotation Both (CW and CCW)
- Noise level 66.0 dB(A)
- Approx. weight 139 lb
