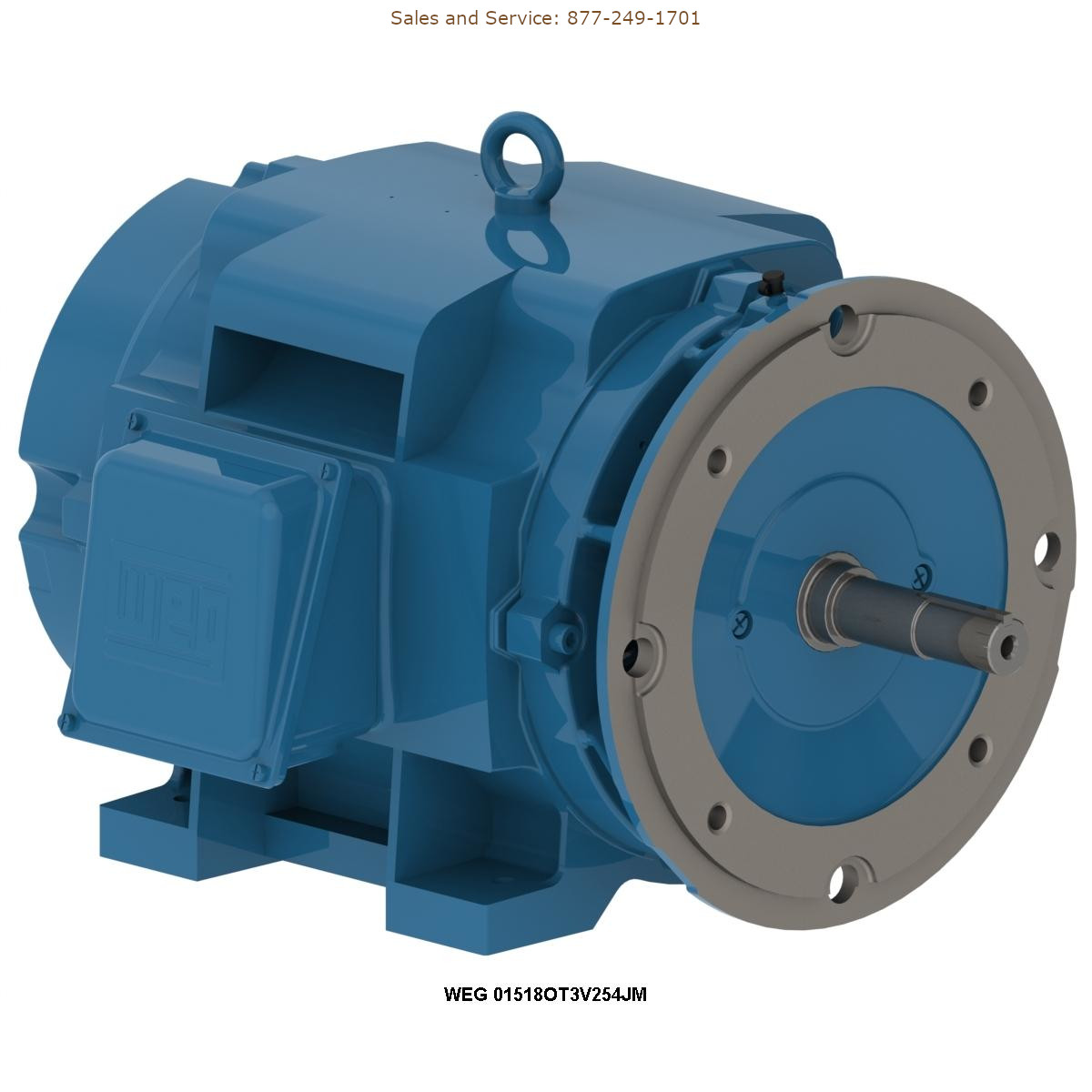

WEG Model Number 01518OT3V254JM WEG Electric Motors, AC Motors – NEMA Repair Service, Troubleshooting, Replacement Parts
WEG 01518OT3V254JM WEG Model Number 01518OT3V254JM WEG Electric Motors, AC Motors – NEMA Repair Service, Troubleshooting, Replacement Parts
Key Features
- Standard NEMA MG-1
- Frequency 60 Hz
- Voltage 200/400 V
- Number of poles 4
- Degree of Protection IP23
- Synchronous speed 1800 rpm
- Output rating 15 HP
- Mounting Foot-mounted
- Flange C
- Mounting F-1
- Terminal box Left position
- Enclosure IC01 - ODP
- Frame 254JM
- Output 15 HP (11 kW)
- Number of Poles 4
- Frequency 60 Hz
- Rated speed 1775 rpm
- Slip 1.39 %
- Rated voltage 200/400 V
- Rated current 42.8/21.4 A
- L. R. Amperes 287/143 A
- LRC 6.7x(Code H)
- No load current 20.7/10.4 A
- Rated torque 44.4 ft.lb
- Locked rotor torque 290 %
- Breakdown torque 300 %
- Locked rotor time 25s (cold) 14s (hot)
- Moment of inertia (J) 2.08 sq.ft.lb
- Design B
- Insulation Class F
- Service factor 1.15
- Temperature rise 80 K
- Duty Cycle Cont.(S1)
- Starting Method Direct On Line
- Ambient temperature -20degC to +40degC
- Altitude 1000 m.a.s.l.
- Degree of Protection IP23
- Enclosure IC01 - ODP
- Mounting F-1
- Rotation Both (CW and CCW)
- Noise level 59.0 dB(A)
- Approx. weight 244 lb
WEG
- Model #:
- 01518OT3V254JM
- Part #:
- 01518OT3V254JM
- New/Surplus $ 1995
- Refurb. Price $1397 Save up to $ 598
- Repair Price $998 Save up to $ 997
01518OT3V254JM WEG | BUY OR REPAIR
Overview
WEG Electric Motors, AC Motors – NEMA, Pump, Close Coupled JM/JP, Close Coupled JM/JP, ODP JM/JP Type, ODP, Close Coupled Pump NEMA Premium Efficiency 15 HP 4P 254JM 3Ph 200/400 V 60 Hz IC01 – ODP – Foot-mounted. Repair Service, Troubleshooting, Replacement Parts Inventory, Sales and Supply. CALL 877-249-1701 or Chat with a representative to repair or buy WEG products.
Features
- Standard NEMA MG-1
- Frequency 60 Hz
- Voltage 200/400 V
- Number of poles 4
- Degree of Protection IP23
- Synchronous speed 1800 rpm
- Output rating 15 HP
- Mounting Foot-mounted
- Flange C
- Mounting F-1
- Terminal box Left position
- Enclosure IC01 - ODP
- Frame 254JM
- Output 15 HP (11 kW)
- Number of Poles 4
- Frequency 60 Hz
- Rated speed 1775 rpm
- Slip 1.39 %
- Rated voltage 200/400 V
- Rated current 42.8/21.4 A
- L. R. Amperes 287/143 A
- LRC 6.7x(Code H)
- No load current 20.7/10.4 A
- Rated torque 44.4 ft.lb
- Locked rotor torque 290 %
- Breakdown torque 300 %
- Locked rotor time 25s (cold) 14s (hot)
- Moment of inertia (J) 2.08 sq.ft.lb
- Design B
- Insulation Class F
- Service factor 1.15
- Temperature rise 80 K
- Duty Cycle Cont.(S1)
- Starting Method Direct On Line
- Ambient temperature -20degC to +40degC
- Altitude 1000 m.a.s.l.
- Degree of Protection IP23
- Enclosure IC01 - ODP
- Mounting F-1
- Rotation Both (CW and CCW)
- Noise level 59.0 dB(A)
- Approx. weight 244 lb
