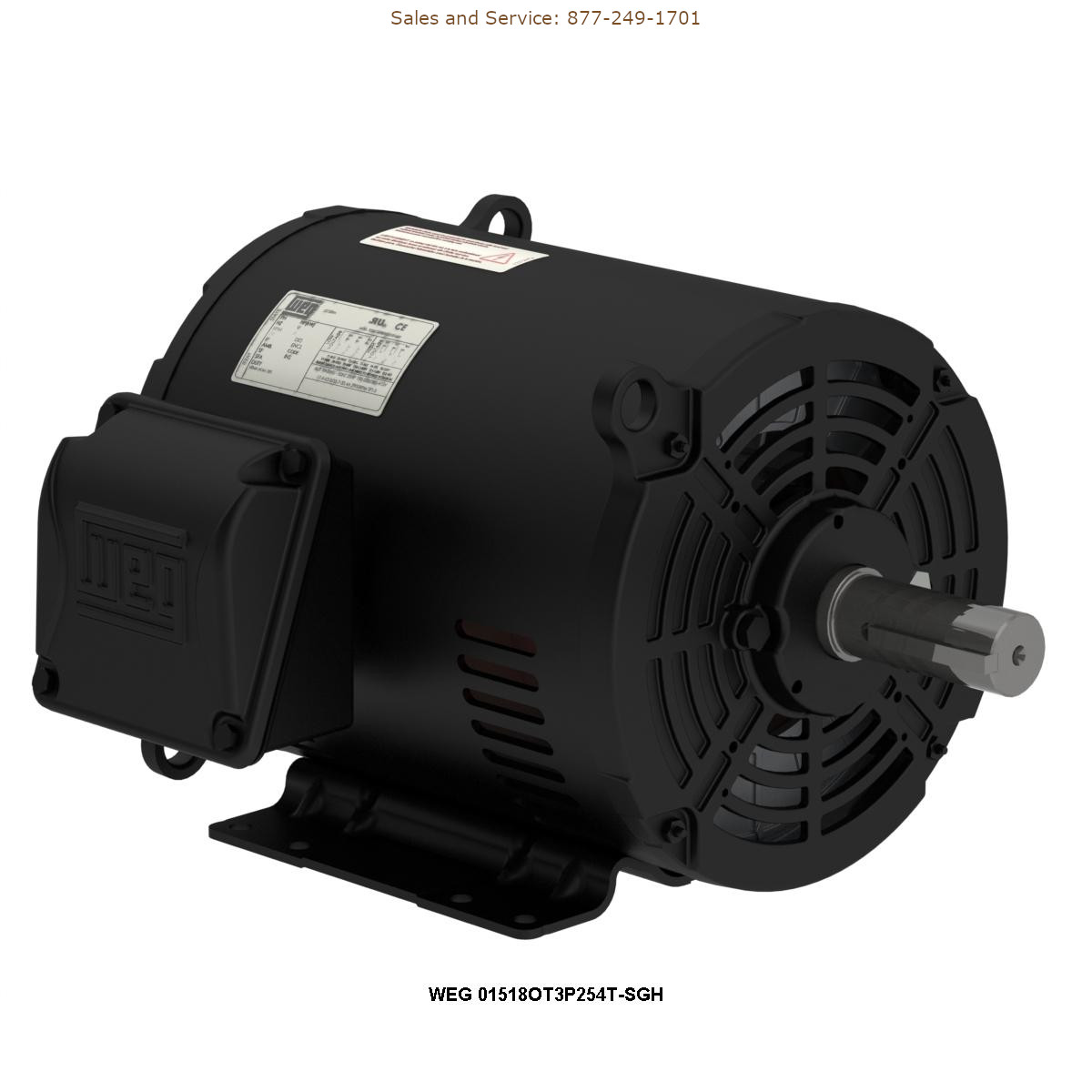

WEG Model Number 01518OT3P254T-SGH WEG Electric Motors, AC Motors – NEMA Repair Service, Troubleshooting, Replacement Parts
WEG 01518OT3P254T-SGH WEG Model Number 01518OT3P254T-SGH WEG Electric Motors, AC Motors – NEMA Repair Service, Troubleshooting, Replacement Parts
Key Features
- Standard NEMA MG-1
- Frequency 60 Hz
- Voltage 200 V
- Number of poles 4
- Synchronous speed 1800 rpm
- Output rating 15 HP
- Mounting Foot-mounted
- Flange Without
- Mounting F-1
- Terminal box Left position
- Enclosure IC01 - ODP
- Frame 254/6T
- Output 15 HP (11 kW)
- Number of Poles 4
- Frequency 60 Hz
- Rated speed 1775 rpm
- Slip 1.39 %
- Rated voltage 200 V
- Rated current 42.8 A
- L. R. Amperes 287 A
- LRC 6.7x(Code H)
- No load current 21.9 A
- Rated torque 44.4 ft.lb
- Locked rotor torque 240 %
- Breakdown torque 300 %
- Locked rotor time 30s (cold) 17s (hot)
- Moment of inertia (J) 1.82 sq.ft.lb
- Design B
- Insulation Class H
- Service factor 1.15
- Temperature rise 80 K
- Duty Cycle Cont.(S1)
- Starting Method Direct On Line
- Ambient temperature -20degC to +40degC
- Altitude 1000 m.a.s.l.
- Enclosure IC01 - ODP
- Mounting F-1
- Rotation Both (CW and CCW)
- Noise level 64.0 dB(A)
- Approx. weight 190 lb
WEG
- Model #:
- 01518OT3P254T-SGH
- Part #:
- 01518OT3P254T-SGH
- New/Surplus $ 1933
- Refurb. Price $1353 Save up to $ 580
- Repair Price $967 Save up to $ 966
01518OT3P254T-SGH WEG | BUY OR REPAIR
Overview
WEG Electric Motors, AC Motors – NEMA, General Purpose ODP/TEFC, ODP Rolled Steel, W01 Rolled Steel, Rolled Steel NEMA Premium Efficiency 15 HP 4P 254/6T 3Ph 200 V 60 Hz IC01 – ODP – Foot-mounted. Repair Service, Troubleshooting, Replacement Parts Inventory, Sales and Supply. CALL 877-249-1701 or Chat with a representative to repair or buy WEG products.
Features
- Standard NEMA MG-1
- Frequency 60 Hz
- Voltage 200 V
- Number of poles 4
- Synchronous speed 1800 rpm
- Output rating 15 HP
- Mounting Foot-mounted
- Flange Without
- Mounting F-1
- Terminal box Left position
- Enclosure IC01 - ODP
- Frame 254/6T
- Output 15 HP (11 kW)
- Number of Poles 4
- Frequency 60 Hz
- Rated speed 1775 rpm
- Slip 1.39 %
- Rated voltage 200 V
- Rated current 42.8 A
- L. R. Amperes 287 A
- LRC 6.7x(Code H)
- No load current 21.9 A
- Rated torque 44.4 ft.lb
- Locked rotor torque 240 %
- Breakdown torque 300 %
- Locked rotor time 30s (cold) 17s (hot)
- Moment of inertia (J) 1.82 sq.ft.lb
- Design B
- Insulation Class H
- Service factor 1.15
- Temperature rise 80 K
- Duty Cycle Cont.(S1)
- Starting Method Direct On Line
- Ambient temperature -20degC to +40degC
- Altitude 1000 m.a.s.l.
- Enclosure IC01 - ODP
- Mounting F-1
- Rotation Both (CW and CCW)
- Noise level 64.0 dB(A)
- Approx. weight 190 lb
