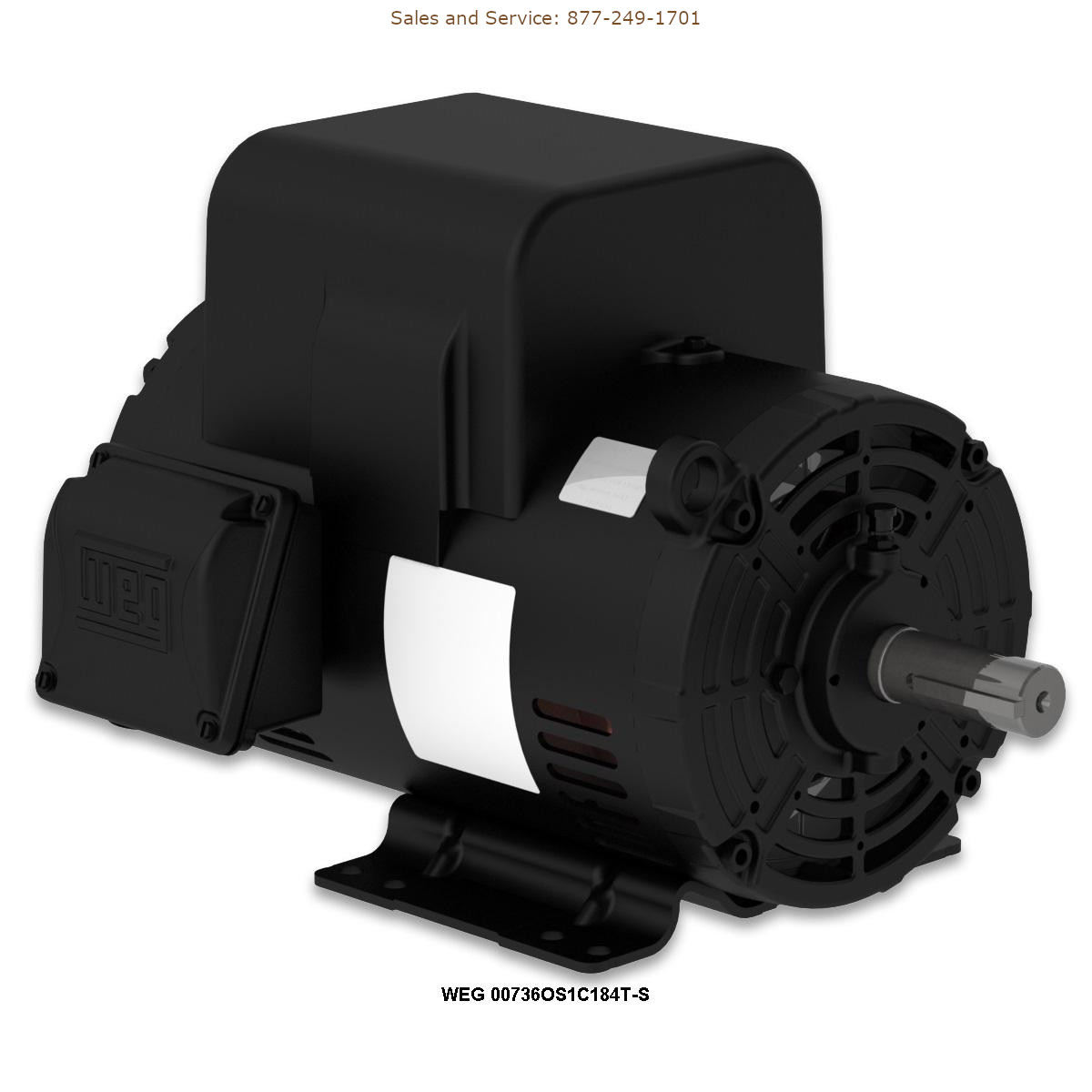

WEG Model Number 00736OS1C184T-S WEG Electric Motors, AC Motors – NEMA Repair Service, Troubleshooting, Replacement Parts
WEG 00736OS1C184T-S WEG Model Number 00736OS1C184T-S WEG Electric Motors, AC Motors – NEMA Repair Service, Troubleshooting, Replacement Parts
Key Features
- Standard NEMA MG-1
- Frequency 60 Hz
- Voltage 208-230 V
- Number of poles 2
- Synchronous speed 3600 rpm
- Output rating 7.5 HP
- Mounting Foot-mounted
- Flange Without
- Mounting F-1
- Terminal box Left position
- Enclosure IC01 - ODP
- Frame 182/4T
- Output 7.5 HP (5.5 kW)
- Number of Poles 2
- Frequency 60 Hz
- Rated speed 3500 rpm
- Slip 2.78 %
- Rated voltage 208-230 V
- Rated current 31.8-28.5 A
- L. R. Amperes 219-197 A
- LRC 6.9x(Code G)
- No load current 4.14-4.80 A
- Rated torque 11.3 ft.lb
- Locked rotor torque 280 %
- Breakdown torque 254 %
- Locked rotor time 10s (cold) 6s (hot)
- Moment of inertia (J) 0.1991 sq.ft.lb
- Design L
- Insulation Class F
- Temperature rise 80 K
- Service factor 1.15 (1.00 @ 208V)
- Duty Cycle Cont.(S1)
- Starting Method Direct On Line
- Ambient temperature -20degC to +40degC
- Altitude 1000 m.a.s.l.
- Enclosure IC01 - ODP
- Mounting F-1
- Rotation Both (CW and CCW)
- Approx. weight 87.6 lb
WEG
- Model #:
- 00736OS1C184T-S
- Part #:
- 00736OS1C184T-S
- New/Surplus $ 961
- Refurb. Price $673 Save up to $ 288
- Repair Price $481 Save up to $ 480
00736OS1C184T-S WEG | BUY OR REPAIR
Overview
WEG Electric Motors, AC Motors – NEMA, General Purpose ODP/TEFC, ODP Rolled Steel, W01 Rolled Steel, Rolled Steel 7.5 HP 2P 182/4T 1Ph 208-230 V 60 Hz IC01 – ODP – Foot-mounted. Repair Service, Troubleshooting, Replacement Parts Inventory, Sales and Supply. CALL 877-249-1701 or Chat with a representative to repair or buy WEG products.
Features
- Standard NEMA MG-1
- Frequency 60 Hz
- Voltage 208-230 V
- Number of poles 2
- Synchronous speed 3600 rpm
- Output rating 7.5 HP
- Mounting Foot-mounted
- Flange Without
- Mounting F-1
- Terminal box Left position
- Enclosure IC01 - ODP
- Frame 182/4T
- Output 7.5 HP (5.5 kW)
- Number of Poles 2
- Frequency 60 Hz
- Rated speed 3500 rpm
- Slip 2.78 %
- Rated voltage 208-230 V
- Rated current 31.8-28.5 A
- L. R. Amperes 219-197 A
- LRC 6.9x(Code G)
- No load current 4.14-4.80 A
- Rated torque 11.3 ft.lb
- Locked rotor torque 280 %
- Breakdown torque 254 %
- Locked rotor time 10s (cold) 6s (hot)
- Moment of inertia (J) 0.1991 sq.ft.lb
- Design L
- Insulation Class F
- Temperature rise 80 K
- Service factor 1.15 (1.00 @ 208V)
- Duty Cycle Cont.(S1)
- Starting Method Direct On Line
- Ambient temperature -20degC to +40degC
- Altitude 1000 m.a.s.l.
- Enclosure IC01 - ODP
- Mounting F-1
- Rotation Both (CW and CCW)
- Approx. weight 87.6 lb
