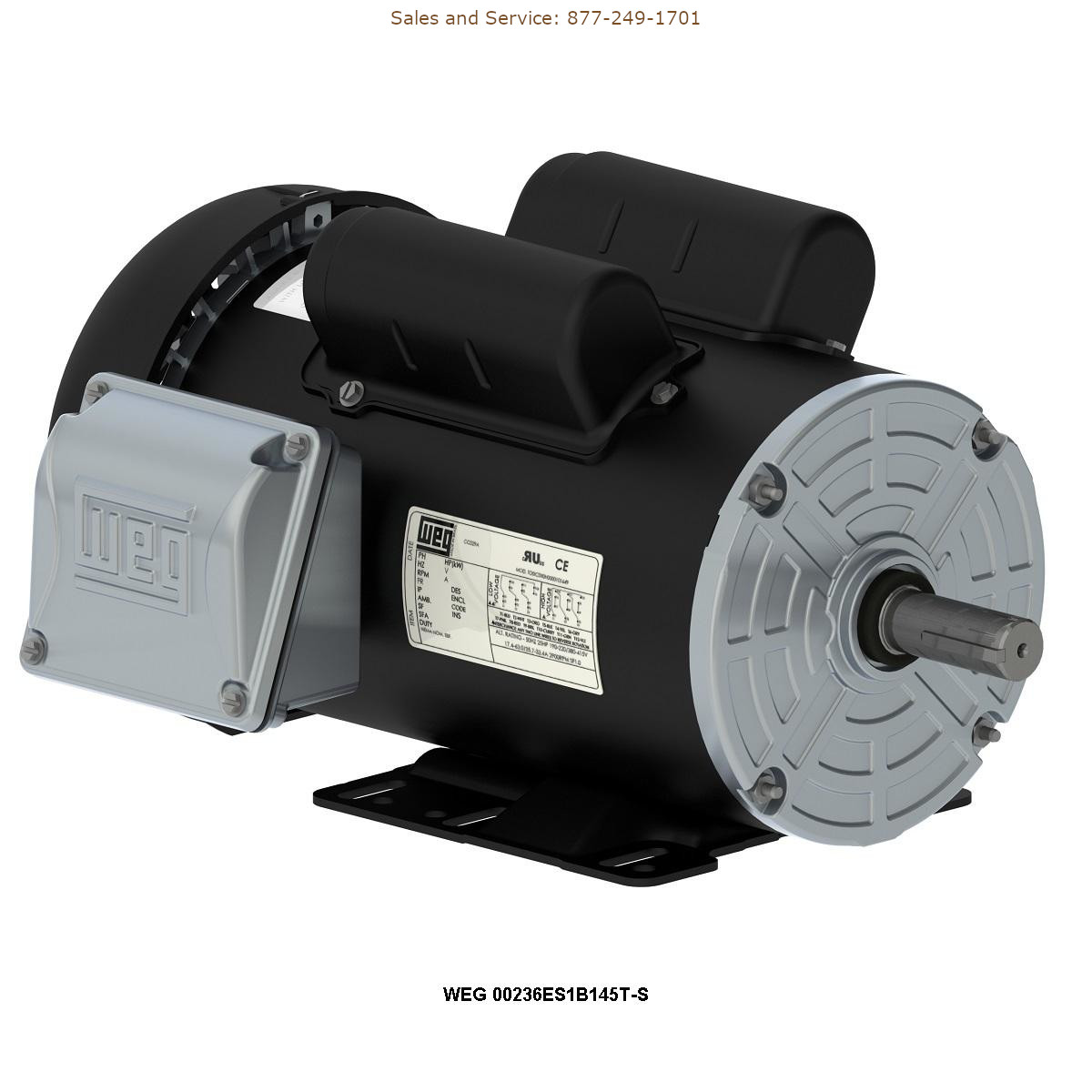

WEG Model Number 00236ES1B145T-S WEG Electric Motors, AC Motors – NEMA Repair Service, Troubleshooting, Replacement Parts
WEG 00236ES1B145T-S WEG Model Number 00236ES1B145T-S WEG Electric Motors, AC Motors – NEMA Repair Service, Troubleshooting, Replacement Parts
Key Features
- Standard NEMA MG-1
- Frequency 60 Hz
- Voltage 115/208-230 V
- Number of poles 2
- Degree of Protection IP55
- Synchronous speed 3600 rpm
- Output rating 2 HP
- Mounting Foot-mounted
- Flange Without
- Mounting F-1
- Terminal box Left position
- Enclosure IC411 - TEFC
- Frame 143/5T
- Output 2 HP (1.5 kW)
- Number of Poles 2
- Frequency 60 Hz
- Rated speed 3495 rpm
- Slip 2.92 %
- Rated voltage 115/208-230 V
- Rated current 17.5/9.62-8.73 A
- L. R. Amperes 136/75.0-68.1 A
- LRC 7.8x(Code J)
- No load current 5.00/2.16-2.50 A
- Rated torque 3.01 ft.lb
- Locked rotor torque 220 %
- Breakdown torque 250 %
- Locked rotor time 10s (cold) 6s (hot)
- Moment of inertia (J) 0.0707 sq.ft.lb
- Design L
- Insulation Class F
- Temperature rise 80 K
- Service factor 1.15 (1.00 @ 208V)
- Duty Cycle Cont.(S1)
- Starting Method Direct On Line
- Ambient temperature -20degC to +40degC
- Altitude 1000 m.a.s.l.
- Degree of Protection IP55
- Enclosure IC411 - TEFC
- Mounting F-1
- Rotation Both (CW and CCW)
- Noise level 68.0 dB(A)
- Approx. weight 40.2 lb
WEG
- Model #:
- 00236ES1B145T-S
- Part #:
- 00236ES1B145T-S
- New/Surplus $ 641
- Refurb. Price $449 Save up to $ 192
- Repair Price $321 Save up to $ 320
00236ES1B145T-S WEG | BUY OR REPAIR
Overview
WEG Electric Motors, AC Motors – NEMA, General Purpose ODP/TEFC, TEAO/TEFC Rolled Steel, W01 Rolled Steel, Rolled Steel 2 HP 2P 143/5T 1Ph 115/208-230 V 60 Hz IC411 – TEFC – Foot-mounted. Repair Service, Troubleshooting, Replacement Parts Inventory, Sales and Supply. CALL 877-249-1701 or Chat with a representative to repair or buy WEG products.
Features
- Standard NEMA MG-1
- Frequency 60 Hz
- Voltage 115/208-230 V
- Number of poles 2
- Degree of Protection IP55
- Synchronous speed 3600 rpm
- Output rating 2 HP
- Mounting Foot-mounted
- Flange Without
- Mounting F-1
- Terminal box Left position
- Enclosure IC411 - TEFC
- Frame 143/5T
- Output 2 HP (1.5 kW)
- Number of Poles 2
- Frequency 60 Hz
- Rated speed 3495 rpm
- Slip 2.92 %
- Rated voltage 115/208-230 V
- Rated current 17.5/9.62-8.73 A
- L. R. Amperes 136/75.0-68.1 A
- LRC 7.8x(Code J)
- No load current 5.00/2.16-2.50 A
- Rated torque 3.01 ft.lb
- Locked rotor torque 220 %
- Breakdown torque 250 %
- Locked rotor time 10s (cold) 6s (hot)
- Moment of inertia (J) 0.0707 sq.ft.lb
- Design L
- Insulation Class F
- Temperature rise 80 K
- Service factor 1.15 (1.00 @ 208V)
- Duty Cycle Cont.(S1)
- Starting Method Direct On Line
- Ambient temperature -20degC to +40degC
- Altitude 1000 m.a.s.l.
- Degree of Protection IP55
- Enclosure IC411 - TEFC
- Mounting F-1
- Rotation Both (CW and CCW)
- Noise level 68.0 dB(A)
- Approx. weight 40.2 lb
