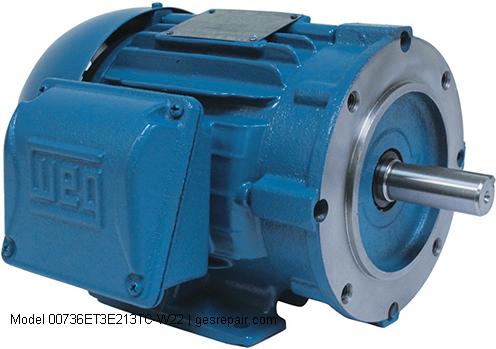

WEG Electric Corporation Electric Motors Model 00736ET3E213TC-W22 Service, Sales, Replacement Parts
WEG Electric Corporation 00736ET3E213TC-W22 WEG Electric Corporation Electric Motors Model 00736ET3E213TC-W22 Service, Sales, Replacement Parts
Product information
Key Features
- Motor Phase 3 ph
- Motor Horsepower 7-1/2 hp
- Synchronous Rpm 3600 rpm
- Motor Supply Voltage 190/380//208-230/460 V
- Frame Size 213/5TC
- Enclosure Type TEFC (Totally Enclosed Fan Cooled)
- Frequency Rating 50/60 Hz
- Duty Condition Type Continuous Duty
- Mounting Type C-Face / Foot
- Full Load Current 8.76 A
WEG Electric Corporation
- Model #:
- 00736ET3E213TC-W22
- Part #:
- 00736ET3E213TC-W22
- New/Surplus $ 1569
- Refurb. Price $1098 Save up to $ 471
- Repair Price $785 Save up to $ 784
00736ET3E213TC-W22 WEG Electric Corporation | BUY OR REPAIR
Overview
General Purpose Motor – 7-1/2 hp, 3600 rpm, 3 ph, 190/380//208-230/460 V, 213/5TC Frame, TEFC (Totally Enclosed Fan Cooled) Enclosure, 50/60 Hz, C-Face / Foot Mount, Continuous Duty
Features
- Motor Phase 3 ph
- Motor Horsepower 7-1/2 hp
- Synchronous Rpm 3600 rpm
- Motor Supply Voltage 190/380//208-230/460 V
- Frame Size 213/5TC
- Enclosure Type TEFC (Totally Enclosed Fan Cooled)
- Frequency Rating 50/60 Hz
- Duty Condition Type Continuous Duty
- Mounting Type C-Face / Foot
- Full Load Current 8.76 A
- Full Load Efficiency 89.50 %
- Volts @ Frequency Contact Global Electronic Services
- Description Keyword 7-1/2 hp
- Overall Length C Dimension 19.52 in
- Service Factor 1.25
- Frame Material Cast Iron
- Insulation Class F
- IP Rating 55
- Standards Met UL CSA CE
- Weight 169.01 lbs
- Applications WEG Electric Corporation Electric Motors 00736ET3E213TC-W22
- Harmonization Code 8501.52.4000
- UPC_NO 7909158052745
- Manufacturer Catalog Contact Global Electronic Services
- Motor Category General Purpose Motor
- Product Type General Purpose Motors
