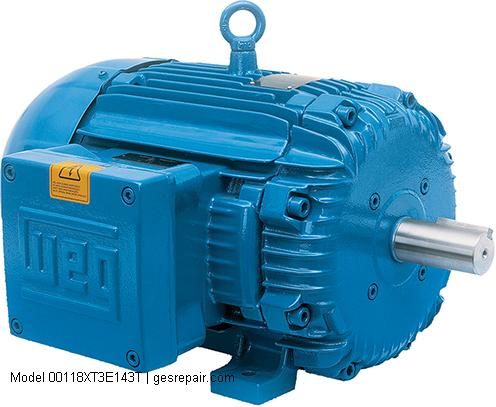

WEG Electric Corporation Electric Motors Model 00118XT3E143T Sales, Replacement, Repair Service
WEG Electric Corporation Model-00118XT3E143T WEG Electric Corporation Electric Motors Model 00118XT3E143T Sales, Replacement, Repair Service
Product information
Key Features
- Motor Category General Purpose Motor
- Motor Phase 3 ph
- Motor Horsepower 1 hp
- Synchronous Rpm 1800 rpm
- Motor Supply Voltage 208-230/460 V
- Frame Size 143T
- Enclosure Type TEFC (Totally Enclosed Fan Cooled)
- Frequency Rating 60 Hz
- Duty Condition Type Explosion Proof
- Full Load Current 1.43 A
WEG Electric Corporation
- Model #:
- Model-00118XT3E143T
- Part #:
- Model-00118XT3E143T
- New/Surplus $ 1167
- Refurb. Price $817 Save up to $ 350
- Repair Price $584 Save up to $ 583
Model-00118XT3E143T WEG Electric Corporation | BUY OR REPAIR
Overview
Explosion Proof / Hazardous Location Motor – 1 hp, 1800 rpm, 3 ph, 208-230/460 V, 143T Frame, TEFC (Totally Enclosed Fan Cooled) Enclosure, 60 Hz, Foot Mount, Explosion Proof
Features
- Motor Category General Purpose Motor
- Motor Phase 3 ph
- Motor Horsepower 1 hp
- Synchronous Rpm 1800 rpm
- Motor Supply Voltage 208-230/460 V
- Frame Size 143T
- Enclosure Type TEFC (Totally Enclosed Fan Cooled)
- Frequency Rating 60 Hz
- Duty Condition Type Explosion Proof
- Full Load Current 1.43 A
- Full Load Efficiency 85.50 %
- Volts @ Frequency Contact Global Electronic Services
- Description Keyword 1 hp
- Overall Length C Dimension 12.76 in
- Service Factor 1.15
- Frame Material Cast Iron
- Insulation Class F
- IP Rating 55
- Standards Met CE CSA UL
- Temperature Code T4
- Group & Class Class I - Groups C & D Class II - Groups F & G
- Harmonization Code 8501.51.6040
- Weight 68 lbs
- Applications WEG Electric Corporation Electric Motors 00118XT3E143T
- Manufacturer Catalog Contact Global Electronic Services
- UPC_NO 7894171894178
- Mounting Type Foot
- Product Type Explosion Proof (Hazardous Location) Motors
