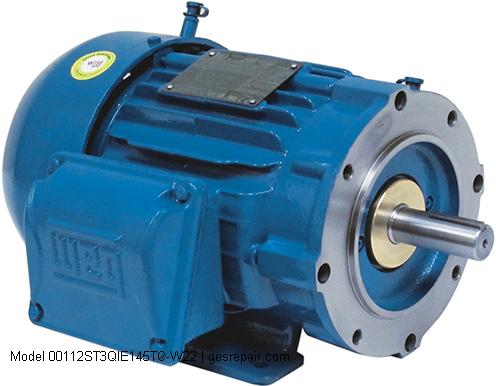

WEG Electric Corporation Electric Motors Model 00112ST3QIE145TC-W22 Service, Sales, Replacement Parts
WEG Electric Corporation 00112ST3QIE145TC-W22 WEG Electric Corporation Electric Motors Model 00112ST3QIE145TC-W22 Service, Sales, Replacement Parts
Product information
Key Features
- Motor Category IEEE 841 Motor
- Motor Phase 3 ph
- Motor Horsepower 1 hp
- Description Keyword 1 hp
- Synchronous Rpm 1200 rpm
- Motor Supply Voltage 460 V
- Frame Size 143/5TC
- Enclosure Type TEFC (Totally Enclosed Fan Cooled)
- Frequency Rating 60 Hz
- Duty Condition Type Severe Duty
WEG Electric Corporation
- Model #:
- 00112ST3QIE145TC-W22
- Part #:
- 00112ST3QIE145TC-W22
- New/Surplus $ 1762
- Refurb. Price $1233 Save up to $ 529
- Repair Price $881 Save up to $ 881
00112ST3QIE145TC-W22 WEG Electric Corporation | BUY OR REPAIR
Overview
Severe Duty – IEEE 841 Motor – 1 hp, 1200 rpm, 3 ph, 460 V, 143/5TC Frame, TEFC (Totally Enclosed Fan Cooled) Enclosure, 60 Hz, C-Face / Foot Mount, Severe Duty
Features
- Motor Category IEEE 841 Motor
- Motor Phase 3 ph
- Motor Horsepower 1 hp
- Description Keyword 1 hp
- Synchronous Rpm 1200 rpm
- Motor Supply Voltage 460 V
- Frame Size 143/5TC
- Enclosure Type TEFC (Totally Enclosed Fan Cooled)
- Frequency Rating 60 Hz
- Duty Condition Type Severe Duty
- Thermal Protection Automatic
- Full Load Current 1.73 A
- Full Load Efficiency 82.50 %
- Volts @ Frequency Contact Global Electronic Services
- Overall Length C Dimension 13.35 in
- Mounting Type C-Face / Foot
- Service Factor 1.25
- Frame Material Cast Iron
- Insulation Class F
- IP Rating 55/56
- Standards Met UL CSA CE
- Harmonization Code 8501.51.6040
- Weight 64.68 lbs
- Applications Petrochemical Plants Pulp & Paper Mills Steel Mills
- Manufacturer Catalog Contact Global Electronic Services
- UPC_NO 7891327841031
- Product Type Severe Duty Motors
