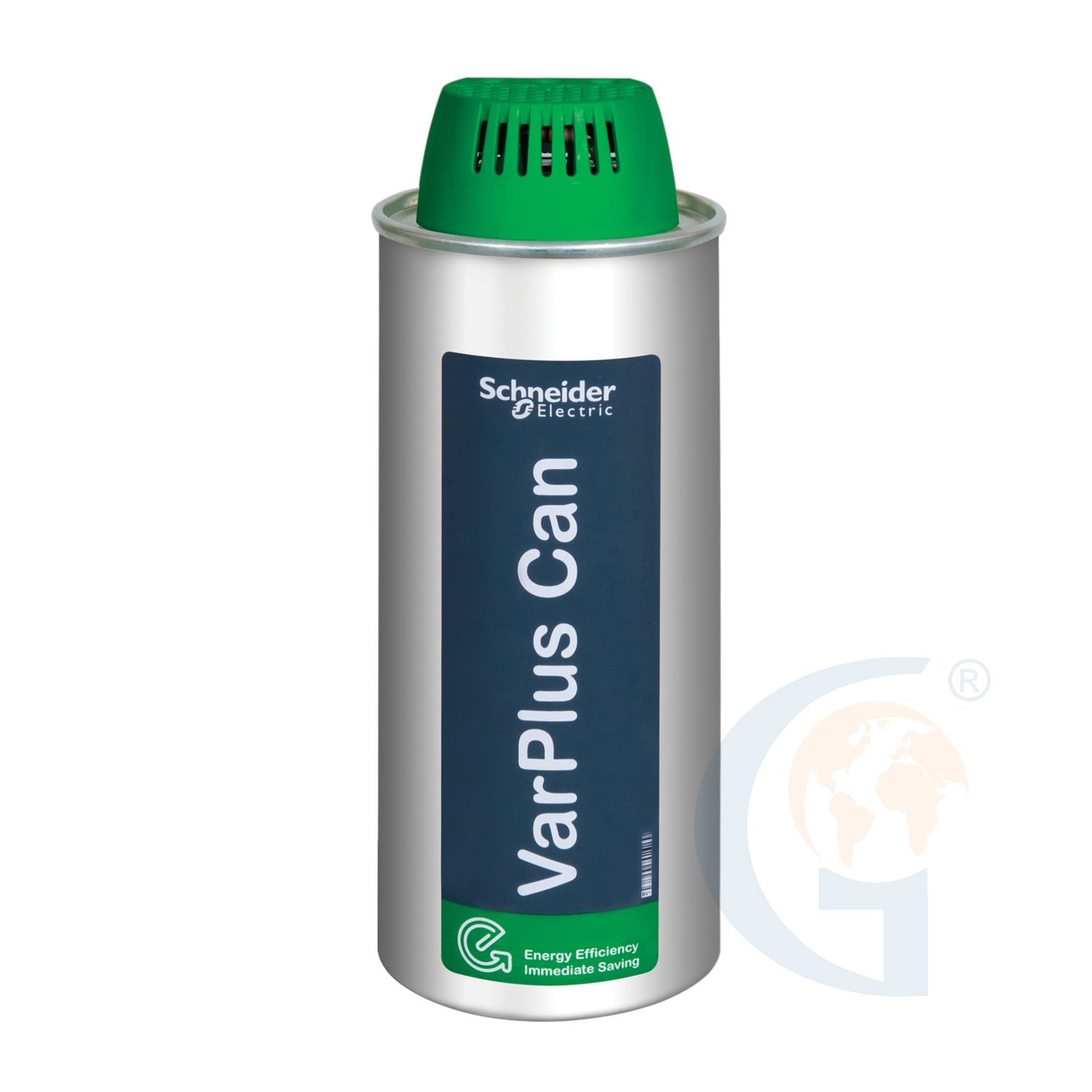

VARPLUS CAN HDUTY CAPACITOR – 17/20.4 KVAR – 480 V – 50/60HZ
Schneider Electric BLRCH170A204B48 VARPLUS CAN HDUTY CAPACITOR – 17/20.4 KVAR – 480 V – 50/60HZ
Product information
Key Features
- range of product VarPlus Can
- product or component type Capacitor
- network frequency 50/60 Hz
- series name HDuty
- network harmonic content <= 20 %
Schneider Electric
- Model #:
- BLRCH170A204B48
- Part #:
- BLRCH170A204B48
BLRCH170A204B48 Schneider Electric | BUY OR REPAIR
Overview
Low Voltage Products and Systems > Power Quality and Power Factor Correction > Power Factor Correction Capacitors/Components > VarPlus Can > BLRCH170A204B48
Features
- range of product VarPlus Can
- product or component type Capacitor
- network frequency 50/60 Hz
- series name HDuty
- network harmonic content <= 20 %
- Electrical parameters 17 kvar 480 V 50 Hz 20.4 kvar 480 V 60 Hz
- maximum permissible voltage 1.1 x Un (8 hours over 24 hours)
- continuous overcurrent capacity 1.8 x In
- rated voltage 480 V AC 50/60 Hz
- dielectric losses < 0.2 W/kvar
- power losses < 0.5 W/kVAr
- capacitance tolerance - 5 % to 10 %
- voltage test 2.15 x Un AC between terminals for 10 s <= 660 V - 3 kV AC between terminal and container for 10 s >= 660 V - 6 kV AC between terminal and container for 10 s
- inrush current 250 x In
