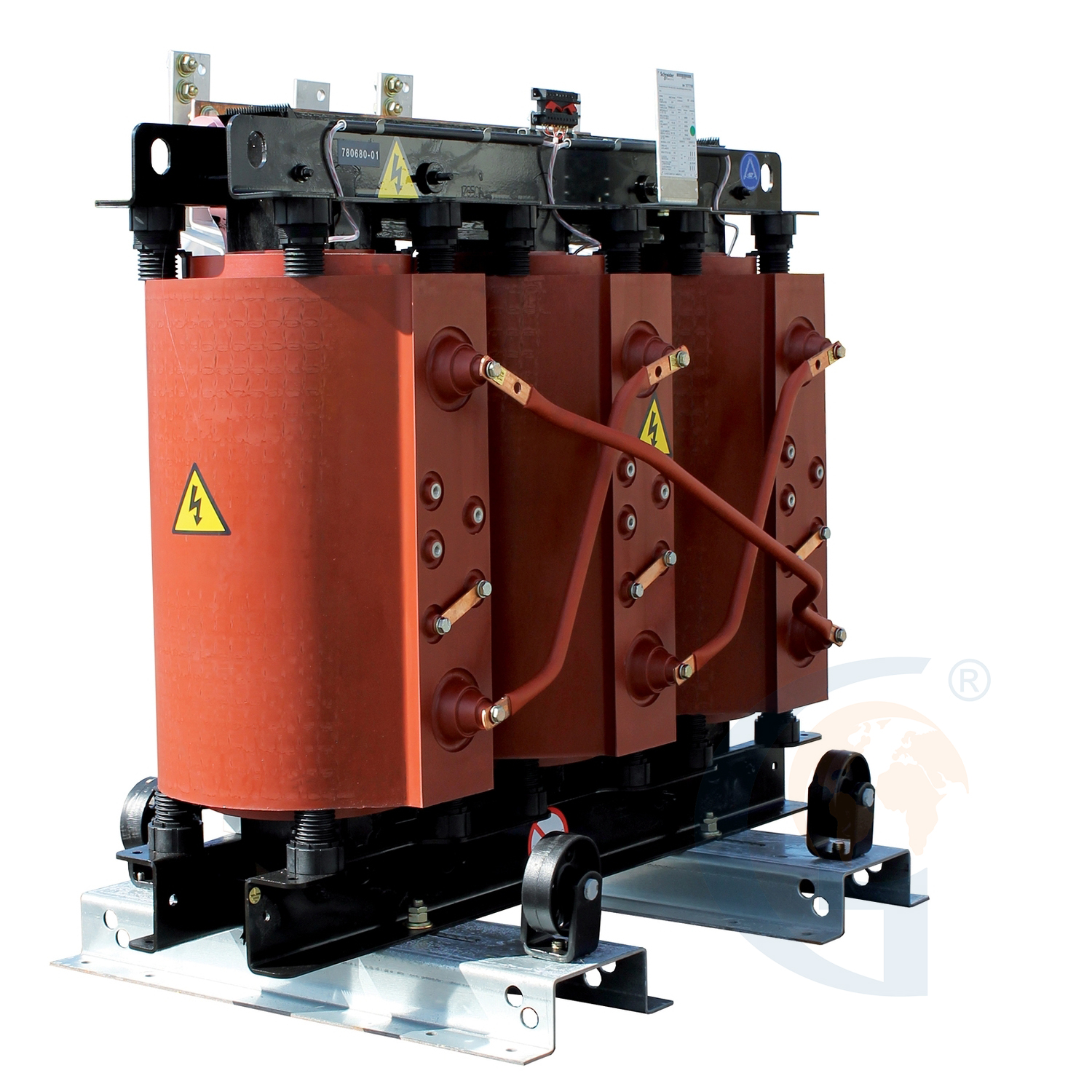

Trihal Cast Resin dry type transformer 1250 kVA 20 kV Eco-Design Dyn05 IP00
Schneider Electric TRI125024276519800 Trihal Cast Resin dry type transformer 1250 kVA 20 kV Eco-Design Dyn05 IP00
Product information
Key Features
- product range Trihal
- product or component type Dry type transformer
- network type AC
- type of installation Indoor
- maximum altitude < 1000 m
Schneider Electric
- Model #:
- TRI125024276519800
- Part #:
- TRI125024276519800
TRI125024276519800 Schneider Electric | BUY OR REPAIR
Overview
Medium Voltage Distribution and Grid Automation > Medium Voltage Transformers > Dry Type Distribution Transformers > Trihal > TRI125024276519800
Features
- product range Trihal
- product or component type Dry type transformer
- network type AC
- type of installation Indoor
- maximum altitude < 1000 m
- cooling mode AN (air natural)
- winding material Aluminium
- insulation material Cast resin (HV) Pre-impregnated (LV)
- degree of protection IP00 no enclosure
- mounting mode Fixed Withdrawable
- phase 3 phases
- rated power 1250 kVA
- rated frequency 50 Hz
- rated primary voltage 20 kV
- Secondary voltage ( at no-load) No load: 400 V
