TESYS LRD THERMAL OVERLOAD RELAYS – 80…104 A – CLASS 10A

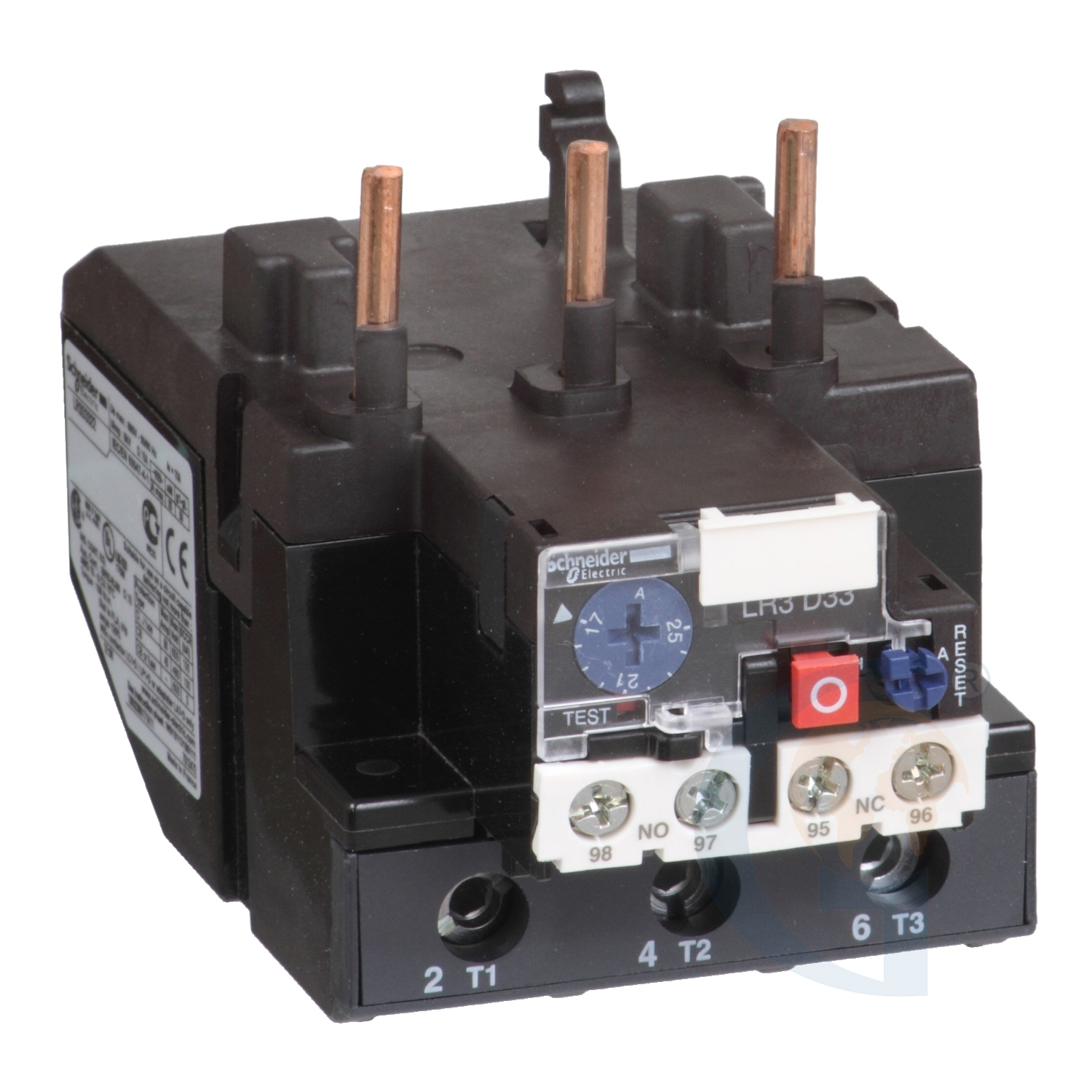

Schneider Electric LR3D3365 TESYS LRD THERMAL OVERLOAD RELAYS – 80…104 A – CLASS 10A
Product information
Key Features
- range TeSys
- product name TeSys LRD
- product or component type Non differential thermal overload relay
- device short name LR3D
- relay application Motor protection
Schneider Electric
- Model #:
- LR3D3365
- Part #:
- LR3D3365
LR3D3365 Schneider Electric | BUY OR REPAIR
Overview
Low Voltage Products and Systems > Motor Starters and Protection Components > Thermal Overload Relay > TeSys LRD > LR3D3365
Features
- range TeSys
- product name TeSys LRD
- product or component type Non differential thermal overload relay
- device short name LR3D
- relay application Motor protection
- product compatibility LC1D80 LC1D95
- network type AC DC
- thermal protection adjustment range 80…104 A
- [Ui] rated insulation voltage Power circuit: 1000 V conforming to IEC 60947-4-1 Power circuit: 600 V conforming to CSA Power circuit: 600 V conforming to UL
- network frequency 0...400 Hz
- mounting support Plate
- tripping threshold with specific accessories Rail
- [Ith] conventional free air thermal current with specific accessories Under contactor
- permissible current 1.14 +/- 0.06 Ir conforming to IEC 60947-4-1
- 5 A for signalling circuit
- 0.72 A at 500 V AC-15 for signalling circuit 0.06 A at 440 V DC-13 for signalling circuit
