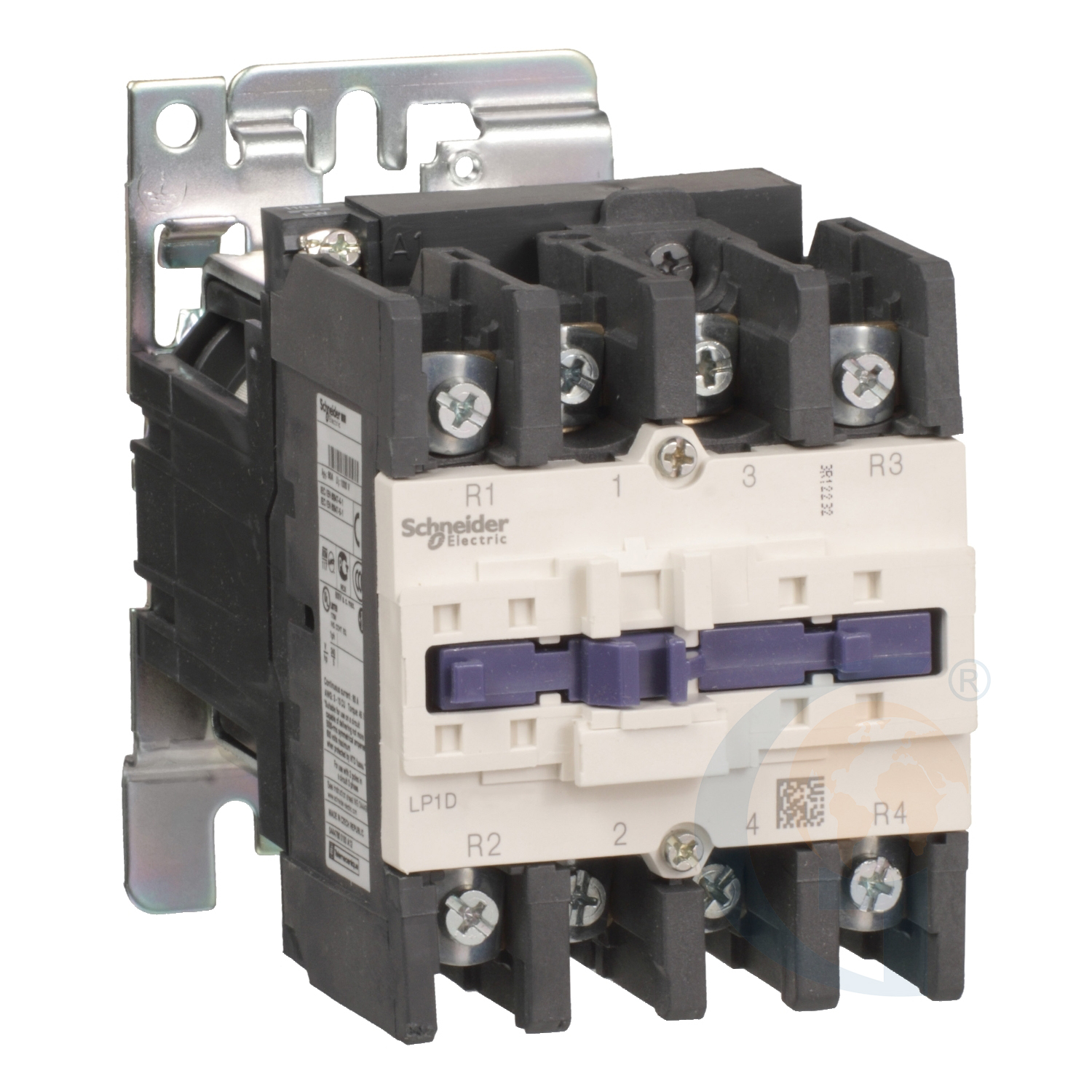

TeSys D contactor – 4P(4 NO) – AC-1 – <= 440 V 125 A - 110 V DC coil

Schneider Electric LP1D800046FW TeSys D contactor – 4P(4 NO) – AC-1 – <= 440 V 125 A - 110 V DC coil

Product information

Key Features
  • range TeSys
  • product name TeSys D
  • product or component type Contactor
  • device short name LP1D
  • contactor application Resistive load
Schneider Electric
Model #:
LP1D800046FW
Part #:
LP1D800046FW
LP1D800046FW Schneider Electric | BUY OR REPAIR

    Need a Quote Sent?

    Repair Price Guarantee: We’ll meet or beat any competitor’s repair price.

    We are committed to your privacy. Global Electronic Services uses the information you provide to contact you about our relevant content, products, and services. You may unsubscribe from these communications at any time. For more information, please review our Privacy Policy.

    Overview

    Low Voltage Products and Systems > Motor Starters and Protection Components > Contactors and Reversing Contactors > TeSys D > LP1D800046FW

    Features

    • range TeSys
    • product name TeSys D
    • product or component type Contactor
    • device short name LP1D
    • contactor application Resistive load
    • utilisation category AC-1
    • poles description 4P
    • power pole contact composition 4 NO
    • [Ue] rated operational voltage Power circuit: <= 1000 V AC 25...400 Hz Power circuit: <= 300 V DC
    • [Ie] rated operational current 125 A (at <60 °C) at <= 440 V AC AC-1 for power circuit
    • [Uc] control circuit voltage 110 V DC
    • coil type Wide range
    • [Uimp] rated impulse withstand voltage 8 kV conforming to IEC 60947
    • overvoltage category III
    • [Ith] conventional free air thermal current 125 A (at 60 °C) for power circuit
    • Irms rated making capacity 1100 A at 440 V for power circuit conforming to IEC 60947
    • rated breaking capacity 1100 A at 440 V for power circuit conforming to IEC 60947
    • [Icw] rated short-time withstand current 135 A 40 °C - 10 min for power circuit 320 A 40 °C - 1 min for power circuit 640 A 40 °C - 10 s for power circuit 990 A 40 °C - 1 s for power circuit
    • associated fuse rating 200 A gG at <= 690 V coordination type 1 for power circuit 160 A gG at <= 690 V coordination type 2 for power circuit
    • average impedance 0.8 mOhm - Ith 125 A 50 Hz for power circuit
    • [Ui] rated insulation voltage Power circuit: 600 V CSA certified Power circuit: 600 V UL certified Power circuit: 1000 V conforming to IEC 60947-4-1
    • electrical durability 0.8 Mcycles 125 A AC-1 at Ue <= 440 V
    • power dissipation per pole 12.5 W AC-1
    • Front cover Without
    • mounting support Plate Rail
    • standards CSA C22.2 No 14 EN 60947-4-1 EN 60947-5-1 IEC 60947-4-1 IEC 60947-5-1 UL 508
    • product certifications BV CCC CSA DNV EAC GL LROS (Lloyds register of shipping) UL
    • connections - terminals Control circuit: lugs-ring terminals (external diameter: 8 mm) Power circuit: lugs-ring terminals (external diameter: 17 mm) Power circuit: bars 1 cable(s) - busbar cross section: 3 x 16 mm
    • tightening torque Control circuit: 1.7 N.m - on lugs-ring terminals - with screwdriver flat Ø 6 mm M3.5 Control circuit: 1.7 N.m - on lugs-ring terminals - with screwdriver Philips No 2 M3.5 Power circuit: 9 N.m - on lugs-ring terminals hexagonal screw head 10 mm M6 Power circuit: 9 N.m - on lugs-ring terminals - with screwdriver flat Ø 8 mm M6 Power circuit: 9 N.m - on bars - with screwdriver flat Ø 8 mm M6 Power circuit: 9 N.m - on bars hexagonal screw head 10 mm M6
    • operating time 6...20 ms opening 20...35 ms closing
    • safety reliability level B10d = 1369863 cycles contactor with nominal load conforming to EN/ISO 13849-1 B10d = 20000000 cycles contactor with mechanical load conforming to EN/ISO 13849-1
    • mechanical durability 4 Mcycles
    • maximum operating rate 3600 cyc/h 60 °C
    • coil technology Without built-in suppressor module
    • control circuit voltage limits 0.1...0.3 Uc (55 °C):drop-out DC 0.75...1.2 Uc (55 °C):operational DC
    • time constant 75 ms
    • inrush power in W 22 W at 20 °C
    • hold-in power consumption in W 22 W at 20 °C
