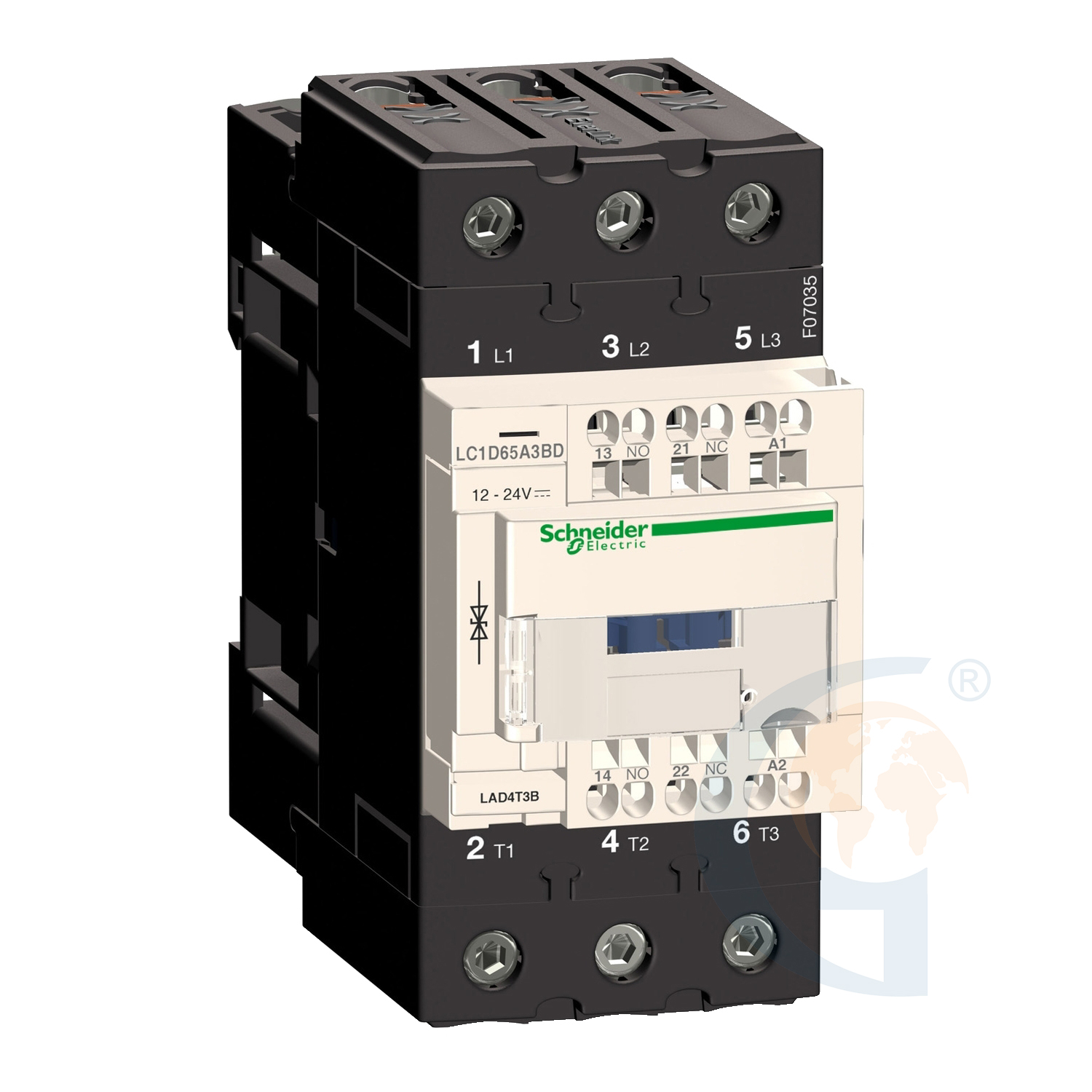

TESYS D CONTACTOR – 3P(3 NO) – AC-3 – <= 440 V 65 A - 120 V AC 60 HZ COIL

Features

• range TeSys
• product name TeSys D
• product or component type Contactor
• device short name LC1D
• contactor application Motor control Resistive load
• utilisation category AC-3 AC-1 AC-4
• poles description 3P
• power pole contact composition 3 NO
• [Ue] rated operational voltage Power circuit: <= 690 V AC 25...400 Hz Power circuit: <= 300 V DC
• [Ie] rated operational current 80 A (at <60 °C) at <= 440 V AC AC-1 for power circuit 65 A (at <60 °C) at <= 440 V AC AC-3 for power circuit
• motor power kW 11 kW at 400 V AC 50/60 Hz (AC-4) 18.5 kW at 220...230 V AC 50/60 Hz (AC-3) 30 kW at 380...400 V AC 50/60 Hz (AC-3) 37 kW at 500 V AC 50/60 Hz (AC-3) 37 kW at 660...690 V AC 50/60 Hz (AC-3)
• motor power HP (UL / CSA) 40 hp at 460/480 V AC 50/60 Hz for 3 phases motors 5 hp at 115 V AC 50/60 Hz for 1 phase motors 10 hp at 230/240 V AC 50/60 Hz for 1 phase motors 20 hp at 200/208 V AC 50/60 Hz for 3 phases motors 20 hp at 230/240 V AC 50/60 Hz for 3 phases motors 50 hp at 575/600 V AC 50/60 Hz for 3 phases motors
• control circuit type AC at 60 Hz
• [Uc] control circuit voltage 120 V AC 60 Hz
• auxiliary contact composition 1 NO + 1 NC
• [Uimp] rated impulse withstand voltage 6 kV conforming to IEC 60947
• overvoltage category III
• [Ith] conventional free air thermal current 10 A (at 60 °C) for signalling circuit 80 A (at 60 °C) for power circuit
• Irms rated making capacity 140 A AC for signalling circuit conforming to IEC 60947-5-1 250 A DC for signalling circuit conforming to IEC 60947-5-1 1000 A at 440 V for power circuit conforming to IEC 60947
• rated breaking capacity 1000 A at 440 V for power circuit conforming to IEC 60947
• [Icw] rated short-time withstand current 520 A 40 °C - 10 s for power circuit 900 A 40 °C - 1 s for power circuit 110 A 40 °C - 10 min for power circuit 260 A 40 °C - 1 min for power circuit 100 A - 1 s for signalling circuit 120 A - 500 ms for signalling circuit 140 A - 100 ms for signalling circuit
• associated fuse rating 10 A gG for signalling circuit conforming to IEC 60947-5-1 125 A gG at <= 690 V coordination type 1 for power circuit 125 A gG at <= 690 V coordination type 2 for power circuit
• average impedance 1.5 mOhm - Ith 80 A 50 Hz for power circuit
• [Ui] rated insulation voltage Power circuit: 600 V CSA certified Power circuit: 600 V UL certified Signalling circuit: 690 V conforming to IEC 60947-1 Signalling circuit: 600 V CSA certified Signalling circuit: 600 V UL certified Power circuit: 690 V conforming to IEC 60947-4-1
• electrical durability 1.4 Mcycles 80 A AC-1 at Ue <= 440 V 1.45 Mcycles 65 A AC-3 at Ue <= 440 V
• power dissipation per pole 9.6 W AC-1 6.3 W AC-3
• Front cover With
• mounting support Plate Rail
• standards CSA C22.2 No 14 EN 60947-4-1 EN 60947-5-1 IEC 60947-4-1 IEC 60947-5-1 UL 508
• product certifications UL GOST CCC CSA
• connections - terminals Control circuit: spring terminals 1 cable(s) 2.5 mm²flexible without cable end Control circuit: spring terminals 2 cable(s) 2.5 mm²flexible without cable end Power circuit: spring clamp terminal 1 cable(s) 1…35 mm²flexible without cable end Power circuit: spring clamp terminal 2 cable(s) 1…25 mm²flexible without cable end Power circuit: spring clamp terminal 1 cable(s) 1…35 mm²flexible with cable end Power circuit: spring clamp terminal 2 cable(s) 1…25 mm²flexible with cable end Power circuit: spring clamp terminal 1 cable(s) 1…35 mm²solid without cable end Power circuit: spring clamp terminal 2 cable(s) 1…25 mm²solid without cable end
• tightening torque Power circuit: 8 N.m - on screw clamp terminals - cable 25…35 mm² hexagonal screw head 4 mm Power circuit: 5 N.m - on screw clamp terminals - cable 2.5…25 mm² hexagonal screw head 4 mm
• operating time 4...19 ms opening 12...26 ms closing
• safety reliability level B10d = 1369863 cycles contactor with nominal load conforming to EN/ISO 13849-1 B10d = 20000000 cycles contactor with mechanical load conforming to EN/ISO 13849-1
• mechanical durability 6 Mcycles
• maximum operating rate 3600 cyc/h 60 °C
• coil technology Without built-in suppressor module
• control circuit voltage limits 0.3...0.6 Uc (-40…70 °C):drop-out AC 60 Hz 0.85...1.1 Uc (-40…60 °C):operational AC 60 Hz 1...1.1 Uc (60…70 °C):operational AC 60 Hz
• inrush power in VA 140 VA 60 Hz cos phi 0.75 (at 20 °C)
• hold-in power consumption in VA 13 VA 60 Hz cos phi 0.3 (at 20 °C)
• heat dissipation 4…5 W at 60 Hz
