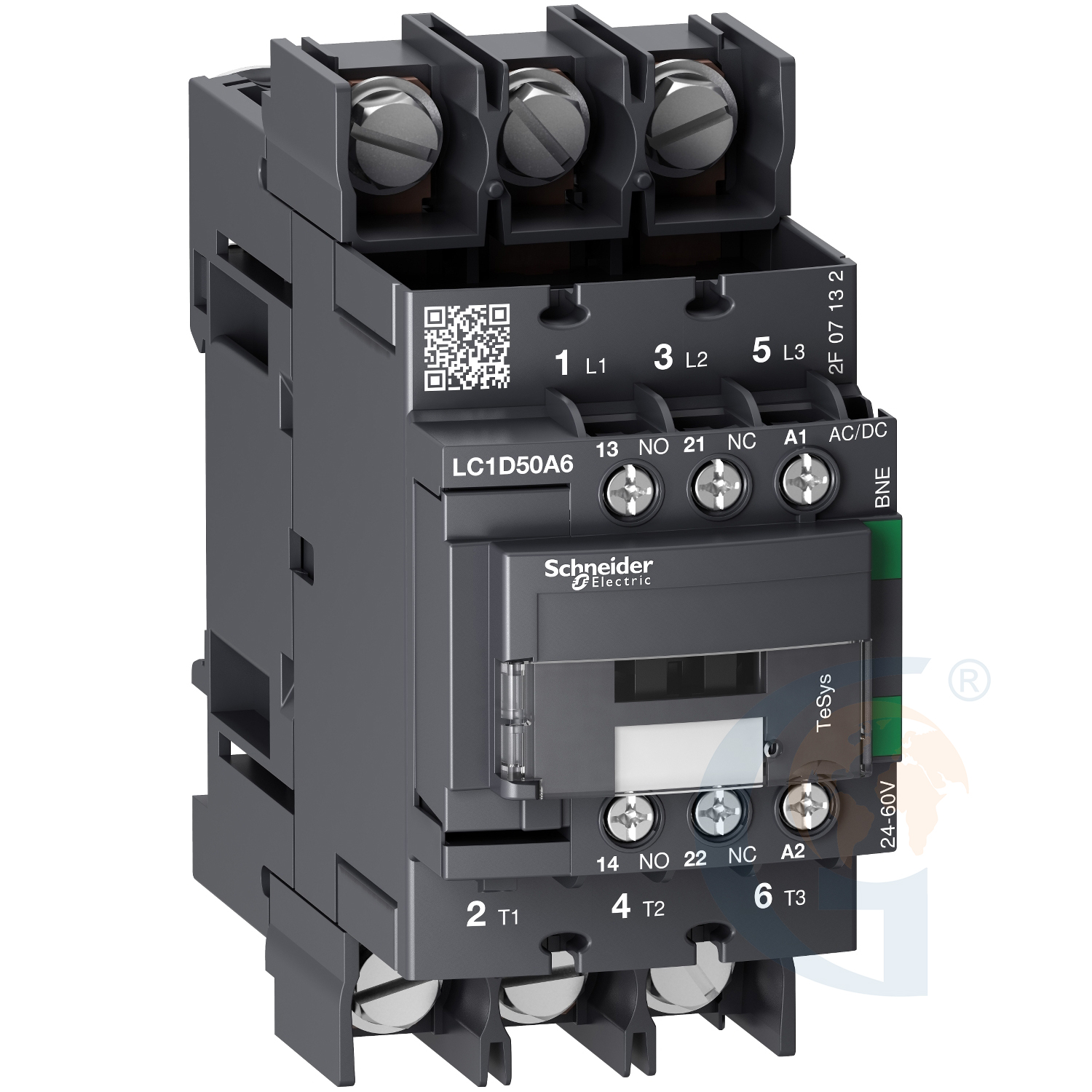

TESYS D CONTACTOR 3P 50A AC-3 UP TO 440V COIL 24-60V AC/DC RING-LUGS

Features

• range TeSys
• product name TeSys D Green
• product or component type Contactor
• device short name LC1D
• contactor application Resistive load Motor control
• utilisation category AC-1 AC-3
• poles description 3P
• power pole contact composition 3 NO
• [Ue] rated operational voltage Power circuit: <= 690 V AC 25...400 Hz
• [Ie] rated operational current 80 A (at <60 °C) at <= 440 V AC-1 for power circuit 50 A (at <60 °C) at <= 440 V AC-3 for power circuit
• motor power kW 15 kW at 220...230 V AC 50 Hz (AC-3) 22 kW at 380...400 V AC 50 Hz (AC-3) 25 kW at 415 V AC 50 Hz (AC-3) 30 kW at 440 V AC 50 Hz (AC-3) 30 kW at 500 V AC 50 Hz (AC-3) 33 kW at 660...690 V AC 50 Hz (AC-3)
• motor power HP (UL / CSA) 3 hp at 115 V AC 60 Hz for 1 phase motors 7.5 hp at 230/240 V AC 60 Hz for 1 phase motors 15 hp at 200/208 V AC 60 Hz for 3 phases motors 15 hp at 230/240 V AC 60 Hz for 3 phases motors 40 hp at 460/480 V AC 60 Hz for 3 phases motors 40 hp at 575/600 V AC 60 Hz for 3 phases motors
• [Uc] control circuit voltage 24...60 V AC 50/60 Hz 24...60 V DC
• coil type AC/DC electronic
• auxiliary contact composition 1 NO + 1 NC
• [Uimp] rated impulse withstand voltage 6 kV conforming to IEC 60947
• overvoltage category III
• [Ith] conventional free air thermal current 80 A (at 60 °C) for power circuit 10 A (at 60 °C) for signalling circuit
• Irms rated making capacity 900 A at 440 V for power circuit conforming to IEC 60947 140 A AC for signalling circuit conforming to IEC 60947-5-1 250 A DC for signalling circuit conforming to IEC 60947-5-1
• rated breaking capacity 900 A at 440 V for power circuit conforming to IEC 60947
• [Icw] rated short-time withstand current 84 A 40 °C - 10 min for power circuit 208 A 40 °C - 1 min for power circuit 400 A 40 °C - 10 s for power circuit 810 A 40 °C - 1 s for power circuit 100 A - 1 s for signalling circuit 120 A - 500 ms for signalling circuit 140 A - 100 ms for signalling circuit
• associated fuse rating 10 A gG for signalling circuit conforming to IEC 60947-5-1 100 A gG at <= 690 V coordination type 1 for power circuit 100 A gG at <= 690 V coordination type 2 for power circuit
• average impedance 1.5 mOhm - Ith 80 A 50 Hz for power circuit
• [Ui] rated insulation voltage Power circuit: 690 V conforming to IEC 60947-4-1 Signalling circuit: 690 V conforming to IEC 60947-1
• electrical durability 1.8 Mcycles 42 A AC-3 at Ue <= 440 V 0.5 Mcycles 80 A AC-1 at Ue <= 440 V
• power dissipation per pole 9.6 W AC-1 3.7 W AC-3
• Front cover With
• mounting support Rail Plate
• standards EN/IEC 60947-4-1 EN/IEC 60947-5-1 UL 60947-4-1 CSA C22.2 No 60947-4-1
• product certifications CCC CSA EAC UL KC DNV-GL LROS (Lloyds register of shipping)
• connections - terminals Power circuit: lugs-ring terminals (external diameter: 16.5 mm) Control circuit: lugs-ring terminals (external diameter: 8 mm)
• tightening torque Control circuit: 1.7 N.m - on lugs-ring terminals - with screwdriver flat Ø 6 mm M3.5 Control circuit: 1.7 N.m - on lugs-ring terminals - with screwdriver Philips No 2 M3.5 Power circuit: 6 N.m - on lugs-ring terminals hexagonal screw head 10 mm M6
• operating time 55...65 ms closing 20...80 ms opening
• safety reliability level B10d = 1369863 cycles contactor with nominal load conforming to EN/ISO 13849-1 B10d = 20000000 cycles contactor with mechanical load conforming to EN/ISO 13849-1
• mechanical durability 6 Mcycles
• maximum operating rate 3600 cyc/h 60 °C
• coil technology Built-in bidirectional peak limiting
• control circuit voltage limits <= 0.1 Uc 60 °C drop-out <= 0.1 Uc 60 °C drop-out 0.85...1.1 Uc 60 °C operational AC 0.85...1.1 Uc 60 °C operational AC 0.8...1.2 Uc 60 °C operational DC 0.8...1.2 Uc 60 °C operational DC
• inrush power in VA 15 VA 50/60 Hz (at 20 °C)
• inrush power in W 16 W at 20 °C
• hold-in power consumption in VA 1 VA (at 20 °C) 50/60 Hz
