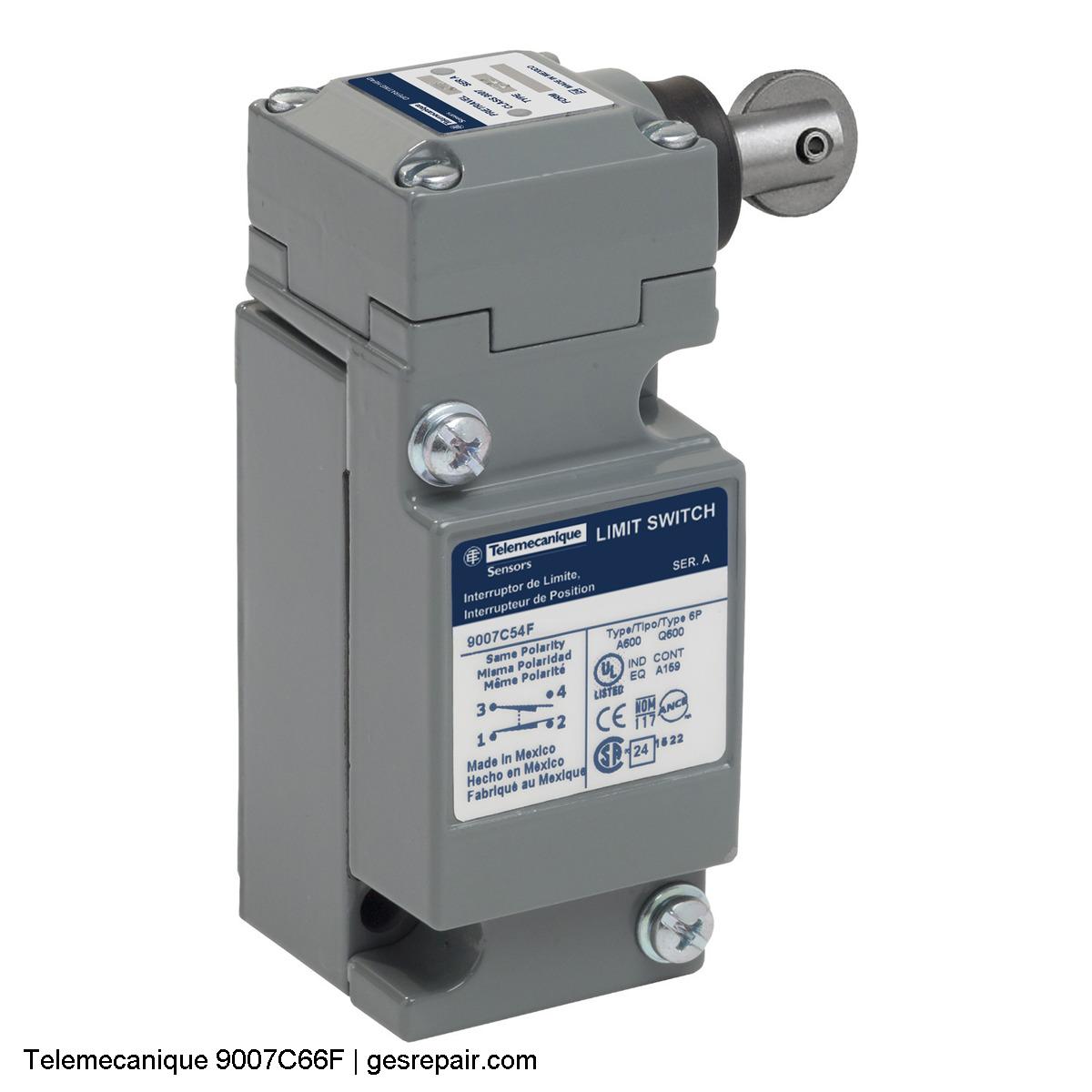

Telemecanique Part 9007C66F Automation Switches
Telemecanique 9007C66F Telemecanique Part 9007C66F Automation Switches
Product information
Key Features
- Catalog Number 9007C66F
- Manufacturer Telemecanique Sensors
- Brand Telemecanique
- Sub Brand 9007C
- Warranty Description Warranty
- Country of Origin Indonesia
- Made in USA No
- Action By 30 Degrees camVertical approach 2 directionsSnap action
- Actuator Steel spring return side roller plunger with vertical roller vertical convertible to horizontal
- Amperage Rating 10
- Application Standard box
- Connection Screw-clamp terminals AWG 22...AWG 12 1-2
- Contact Configuration 2NC-NOForm Z
- Contact Rating NEMA A600R300
- Enclosure NEMA 1 NEMA TYPE 250-NEMA 2 NEMA TYPE 250-NEMA 4 NEMA TYPE 250-NEMA 6 NEMA TYPE 250-NEMA 6P NEMA TYPE 250-NEMA 12 NEMA TYPE 250-NEMA 13 NEMA TYPE 250
- Mounting By The Body
- Number of Poles 2
- Operating Cycles 1000000 CYCLES
- Special Features without
- Standard 25 GN 10-150 HZIEC 60068-2-660 GN 9 MS IEC 60068-2-27IP67 IEC 60529CLASS 0 IEC 61140
- UPC 785901538370
- GTIN 00785901538370
- Item Type Limit switch
- Size 1.55 IN2.63 IN4.02-4.02 IN
- Environmental Conditions STANDARD ENVIRONMENT
- Operating Temperature -20-185 A Degrees F STANDARD ENVIRONMENT
- Voltage Rating 1.2 A 600 V AC A600 NEMA-1.5 A 480 V AC A600 NEMA-3 A 240 V AC A600 NEMA-6 A 120 V AC A600 NEMA-0.11 A 250 V DC R300 NEMA-0.55 A 125 V DC R300 NEMA
Telemecanique
- Model #:
- 9007C66F
- Part #:
- 9007C66F
- New/Surplus $ 693
- Refurb. Price $485 Save up to $ 208
- Repair Price $347 Save up to $ 346
9007C66F Telemecanique | BUY OR REPAIR
Overview
Industrial Automation and Control / Automation Switches / Limit Switch / Limit switch, 9007, 600 V 10amp c +options
Features
- Catalog Number 9007C66F
- Manufacturer Telemecanique Sensors
- Brand Telemecanique
- Sub Brand 9007C
- Warranty Description Warranty
- Country of Origin Indonesia
- Made in USA No
- Action By 30 Degrees camVertical approach 2 directionsSnap action
- Actuator Steel spring return side roller plunger with vertical roller vertical convertible to horizontal
- Amperage Rating 10
- Application Standard box
- Connection Screw-clamp terminals AWG 22...AWG 12 1-2
- Contact Configuration 2NC-NOForm Z
- Contact Rating NEMA A600R300
- Enclosure NEMA 1 NEMA TYPE 250-NEMA 2 NEMA TYPE 250-NEMA 4 NEMA TYPE 250-NEMA 6 NEMA TYPE 250-NEMA 6P NEMA TYPE 250-NEMA 12 NEMA TYPE 250-NEMA 13 NEMA TYPE 250
- Mounting By The Body
- Number of Poles 2
- Operating Cycles 1000000 CYCLES
- Special Features without
- Standard 25 GN 10-150 HZIEC 60068-2-660 GN 9 MS IEC 60068-2-27IP67 IEC 60529CLASS 0 IEC 61140
- UPC 785901538370
- GTIN 00785901538370
- Item Type Limit switch
- Size 1.55 IN2.63 IN4.02-4.02 IN
- Environmental Conditions STANDARD ENVIRONMENT
- Operating Temperature -20-185 A Degrees F STANDARD ENVIRONMENT
- Voltage Rating 1.2 A 600 V AC A600 NEMA-1.5 A 480 V AC A600 NEMA-3 A 240 V AC A600 NEMA-6 A 120 V AC A600 NEMA-0.11 A 250 V DC R300 NEMA-0.55 A 125 V DC R300 NEMA
