Switch disconnector fuse, FuPact GSC32, 32 A, 4 poles, fuse type NFC 10 x 38 mm, front and right side control

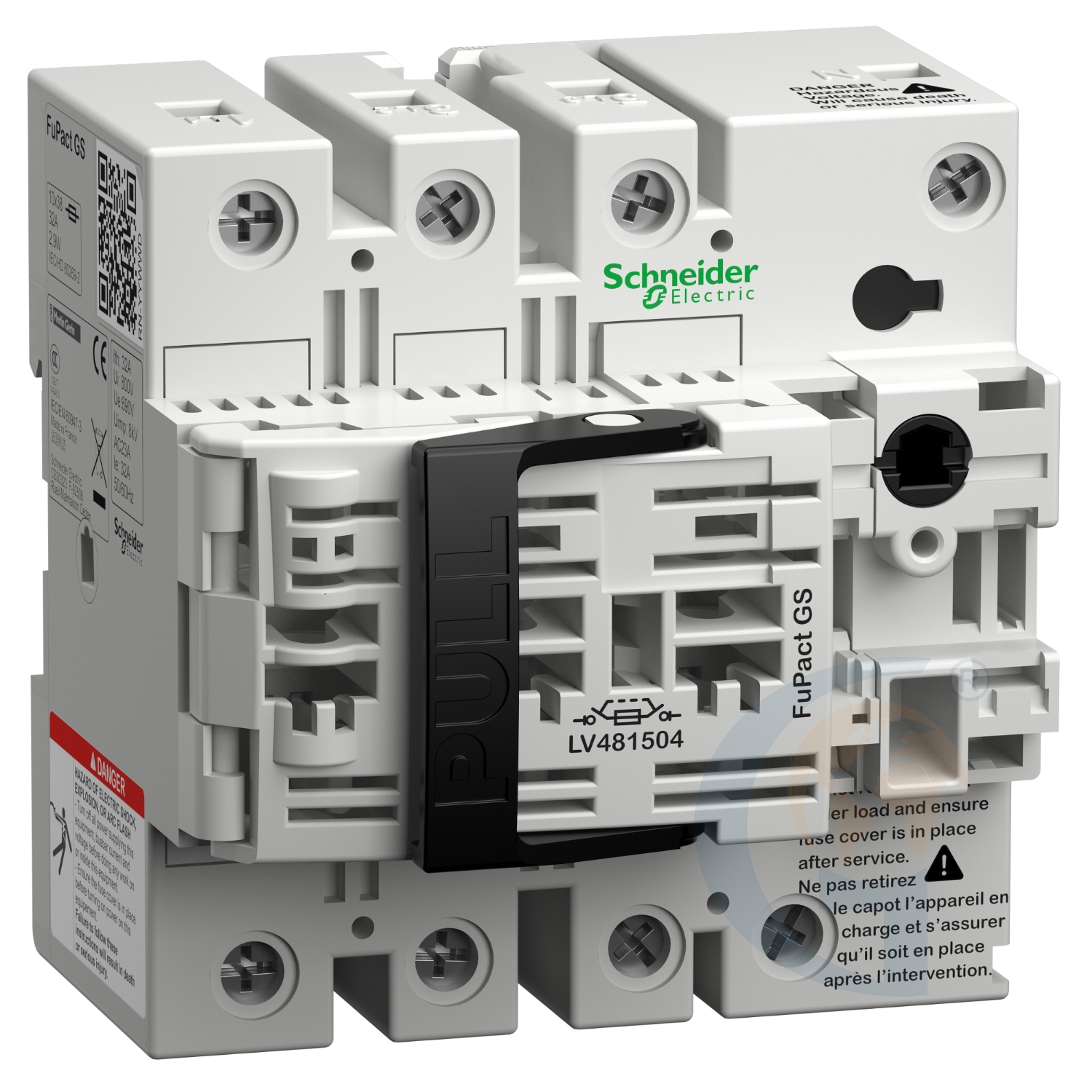

Schneider Electric LV481504 Switch disconnector fuse, FuPact GSC32, 32 A, 4 poles, fuse type NFC 10 x 38 mm, front and right side control
Product information
Key Features
- range FuPact
- product name FuPact GS
- device short name GSC32
- product or component type Switch-disconnector-fuse
- device application Protection
Schneider Electric
- Model #:
- LV481504
- Part #:
- LV481504
LV481504 Schneider Electric | BUY OR REPAIR
Overview
Low Voltage Products and Systems > Fuse and Safety Switches > Electrical Distribution Fuse Devices > FuPact INF/ISFL/ISFT > LV481504
Features
- range FuPact
- product name FuPact GS
- device short name GSC32
- product or component type Switch-disconnector-fuse
- device application Protection
- poles description 4P
- protected poles description 3t
- contacts type and composition 4 NO
- [Ith] conventional free air thermal current 32 A (at 35 °C)
- [Ie] rated operational current 32 A at 220/240 V AC-22A 32 A at 380/415 V AC-22A 32 A at 660/690 V AC-22A 32 A at 220/240 V AC-23A 32 A at 380/415 V AC-23A 32 A at 660/690 V AC-23A
- fuse type NFC
- fuse size 10 x 38 mm
- network type AC
- network frequency 50/60 Hz
- type of operating handle Direct frontal External frontal External right side
- mounting support Plate Rail
- [Ui] rated insulation voltage 800 V AC 50/60 Hz
- [Uimp] rated impulse withstand voltage 8 kV
- rated operational power in W 15 kW at 380/400 V 25 kW at 660/690 V
