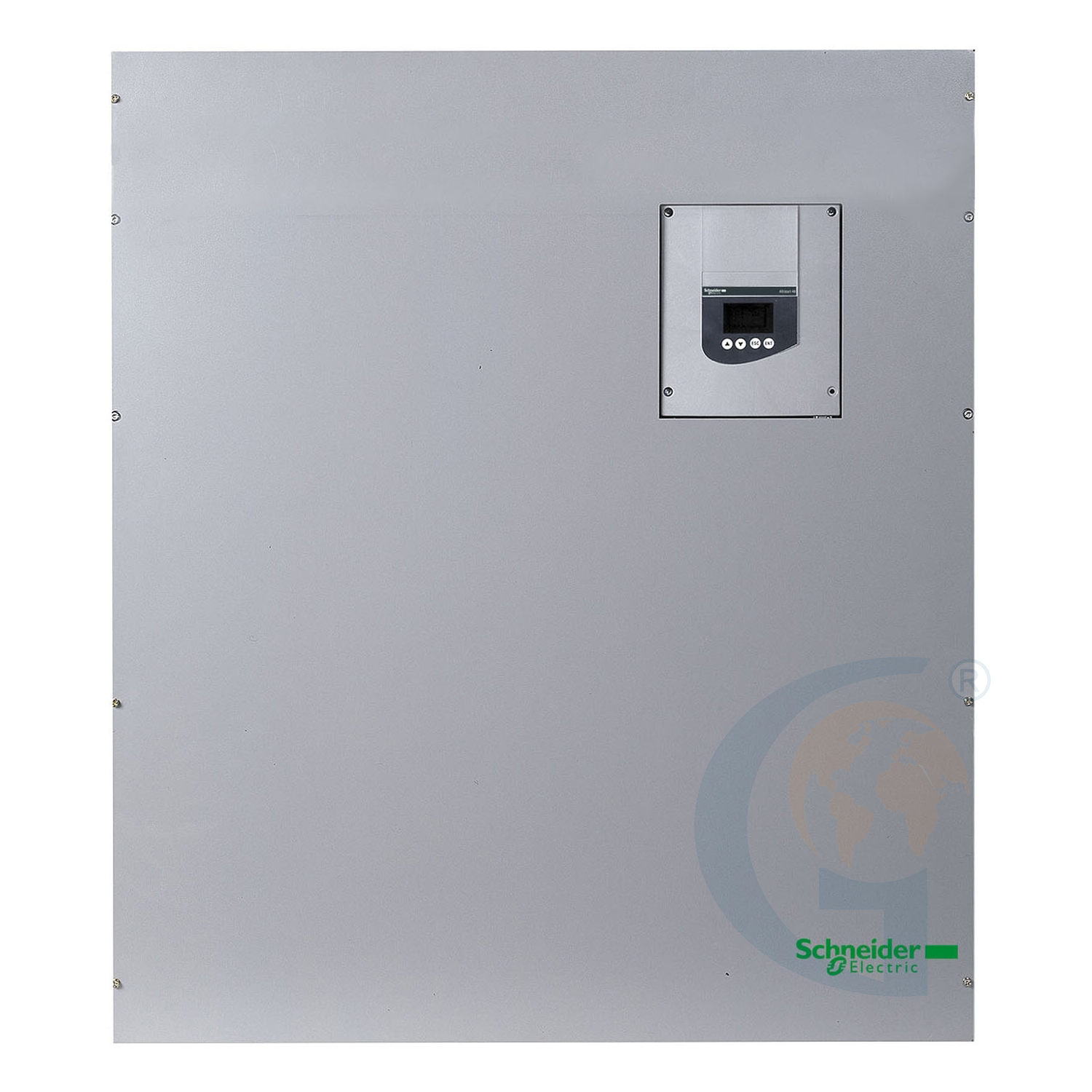

SOFT STARTER FOR ASYNCHRONOUS MOTOR – ATS48 – 675 A – 230..415 V – 220..630 KW

Features

• range of product Altistart 48
• product or component type Soft starter
• product destination Asynchronous motors
• product specific application Heavy duty industry and pumps
• device short name ATS48
• power supply voltage 230...415 V - 15...10 %
• motor power kW 630 kW at 400 V connection to the motor delta terminals for standard applications 220 kW at 230 V connection in the motor supply line for standard applications 315 kW at 230 V connection to the motor delta terminals for severe applications 355 kW at 230 V connection to the motor delta terminals for standard applications 355 kW at 400 V connection in the motor supply line for severe applications 400 kW at 400 V connection in the motor supply line for standard applications 500 kW at 400 V connection to the motor delta terminals for severe applications
• power dissipation in W 2073 W for standard applications 2537 W for standard applications
• utilisation category AC-53A
• type of start Start with torque control (current limited to 5 In)
• Icl nominal current 790 A for connection in the motor supply line for standard applications 790 A for connection in the motor supply line for severe applications 1368 A for connection to the motor delta terminals for standard applications 1368 A for connection to the motor delta terminals for severe applications
• IP degree of protection IP00
• assembly style With heat sink
• function available External bypass (optional)
• power supply voltage limits 195…456 V
• power supply frequency 50...60 Hz - 5...5 %
• power supply frequency limits 47.5...63 Hz
