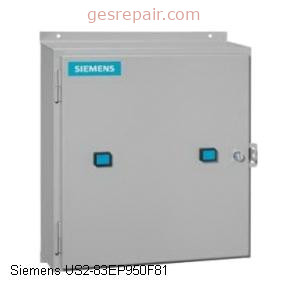

Siemens US2:83EP950F81 Starter, Duplex; 120V at 60Hz 110V at 50Hz; 0.85-1.15A Motor
Siemens 83EP950F81 Siemens US2:83EP950F81 Starter, Duplex; 120V at 60Hz 110V at 50Hz; 0.85-1.15A Motor
Product information
Key Features
- Type Non-Combination Full Voltage Duplex Starter
- Construction Standard NEMA 600V AC
- Size NEMA Half Size 1.75
- UL Cont. Amps 40A
- Phase 3
- Coil Voltage 120V at 60Hz 110V at 50Hz
- Hp 3-Phase 200V 10 hp
- Hp 3-Phase 230V 10 hp
- Hp 3-Phase 460V 15 hp
- Hp 3-Phase 575V 15 hp
- Enclosure Type NEMA 3R12
- Overload Relay Ambient Compensated Bimetal
- Motor FLA 0.85-1.15A
- Auxiliary Contacts: (1) NO
Siemens
- Model #:
- 83EP950F81
- Part #:
- 83EP950F81
83EP950F81 Siemens | BUY OR REPAIR
Overview
We fully load test and function test your Siemens US2:83EP950F81 Starter, Duplex; 120V at 60Hz 110V at 50Hz; 0.85-1.15A Motor FLA. You get back a fully repaired and tested unit. We replace common failure components as well as components out of tolerance, so we are able to warranty every repair with a full 18 month in-service warranty.
Features
- Type Non-Combination Full Voltage Duplex Starter
- Construction Standard NEMA 600V AC
- Size NEMA Half Size 1.75
- UL Cont. Amps 40A
- Phase 3
- Coil Voltage 120V at 60Hz 110V at 50Hz
- Hp 3-Phase 200V 10 hp
- Hp 3-Phase 230V 10 hp
- Hp 3-Phase 460V 15 hp
- Hp 3-Phase 575V 15 hp
- Enclosure Type NEMA 3R12
- Overload Relay Ambient Compensated Bimetal
- Motor FLA 0.85-1.15A
- Auxiliary Contacts: (1) NO
