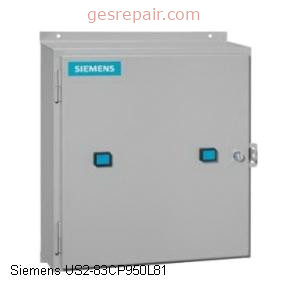

Siemens US2:83CP950L81 Starter, Duplex; 277V at 60Hz 240V at 50Hz; 0.85-1.15A Motor
Siemens US2:83CP950L81 Siemens US2:83CP950L81 Starter, Duplex; 277V at 60Hz 240V at 50Hz; 0.85-1.15A Motor
Product information
Key Features
- Type Non-Combination Full Voltage Duplex Starter
- Construction Standard NEMA 600V AC
- Size NEMA Size 0
- UL Cont. Amps 18A
- Phase 3
- Coil Voltage 277V at 60Hz 240V at 50Hz
- Hp 3-Phase 200V 3 hp
- Hp 3-Phase 230V 3 hp
- Hp 3-Phase 460V 5 hp
- Hp 3-Phase 575V 5 hp
- Enclosure Type NEMA 3R12
- Overload Relay Ambient Compensated Bimetal
- Motor FLA 0.85-1.15A
- Auxiliary Contacts: (1) NO
Siemens
- Model #:
- US2:83CP950L81
- Part #:
- US2:83CP950L81
US2:83CP950L81 Siemens | BUY OR REPAIR
Overview
Service and Sales: Non-Combination Full Voltage Duplex Starter, NEMA 600V AC, NEMA Size 0, 18A, 3, 277V at 60Hz 240V at 50Hz, 3 hp, 3 hp, 5 hp, 5 hp, NEMA 3R12, Ambient Compensated Bimetal, 0.85-1.15A, (1) NO
Features
- Type Non-Combination Full Voltage Duplex Starter
- Construction Standard NEMA 600V AC
- Size NEMA Size 0
- UL Cont. Amps 18A
- Phase 3
- Coil Voltage 277V at 60Hz 240V at 50Hz
- Hp 3-Phase 200V 3 hp
- Hp 3-Phase 230V 3 hp
- Hp 3-Phase 460V 5 hp
- Hp 3-Phase 575V 5 hp
- Enclosure Type NEMA 3R12
- Overload Relay Ambient Compensated Bimetal
- Motor FLA 0.85-1.15A
- Auxiliary Contacts: (1) NO
