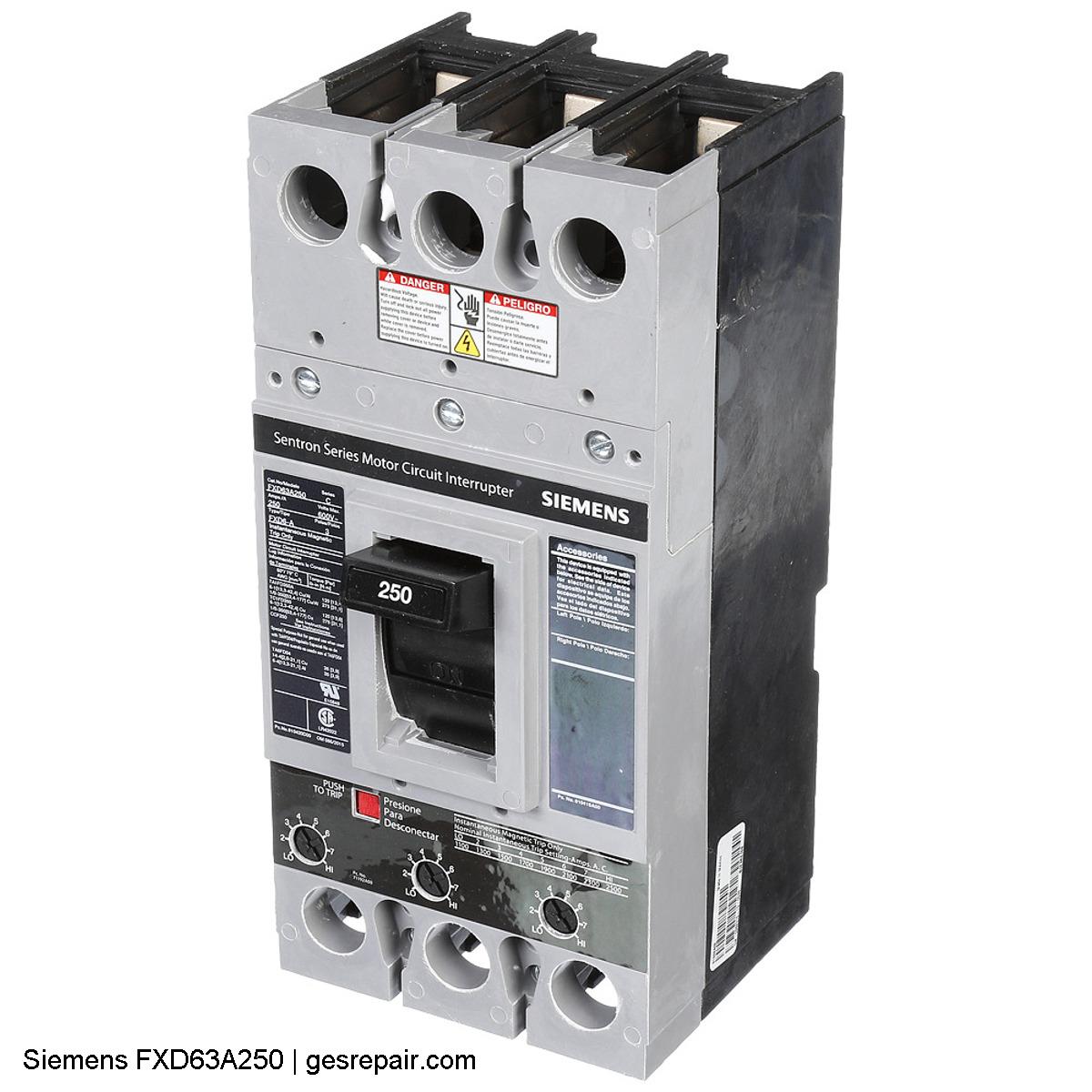

Siemens Part FXD63A250 Circuit Protection
Siemens FXD63A250 Siemens Part FXD63A250 Circuit Protection
Product information
Key Features
- Catalog Number FXD63A250
- Manufacturer Siemens
- Brand Siemens
- Sub Brand Sentron
- Country of Origin Mexico
- Made in USA No
- Actuator Varying
- Application Standard Range ETI Breaker
- Enclosure Varying
- Frame FD
- Frequency Rating 5060 HZ
- Interrupt Rating 22KAIC
- Number of Poles 3
- Standard HACR
- UPC 783643212282
- GTIN 00783643212282
- Item Type FXD6
- Length 6.900
- Width 5.500
- Height 11.3
- Height UOM Inch
- Operating Temperature 40C
- Trip Range 1100-2500
- Trip Type Thermal-Magnetic
- Voltage Rating 600
Siemens
- Model #:
- FXD63A250
- Part #:
- FXD63A250
- New/Surplus $ 11803
- Refurb. Price $8262 Save up to $ 3541
- Repair Price $5902 Save up to $ 5901
FXD63A250 Siemens | BUY OR REPAIR
Overview
Power Distribution and Protection / Circuit Breakers and Accessories / Circuit Breakers / LOW VOLTAGE SENTRON MOLDED CASE CIRCUIT BREAKER WITH MAGNETIC TRIP ONLYUNIT. STANDARD RANGE ETI BREAKER FD FRAME WITH STAND ARDBREAKING CAPACITY AND NON INTERCHANGEABLE TRIP. MEETS UL 489 / IEC60947-2 STANDARDS. 250A 3-POLE BREAKER (22KAIC AT 600V) (35KAIC AT480V). SPECIAL FEATURES NO LUGS INSTALLED. DIMENSIONS (W x H x D) IN 4.5 x 9.5 x 4._____________________________________________ ___________________________
Features
- Catalog Number FXD63A250
- Manufacturer Siemens
- Brand Siemens
- Sub Brand Sentron
- Country of Origin Mexico
- Made in USA No
- Actuator Varying
- Application Standard Range ETI Breaker
- Enclosure Varying
- Frame FD
- Frequency Rating 5060 HZ
- Interrupt Rating 22KAIC
- Number of Poles 3
- Standard HACR
- UPC 783643212282
- GTIN 00783643212282
- Item Type FXD6
- Length 6.900
- Width 5.500
- Height 11.3
- Height UOM Inch
- Operating Temperature 40C
- Trip Range 1100-2500
- Trip Type Thermal-Magnetic
- Voltage Rating 600
