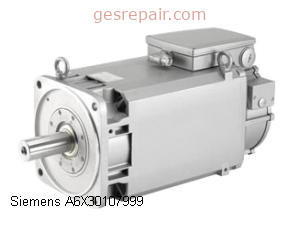

Siemens A6X30107999 Compact Induction Motor 292/333/387V
Siemens A6X30107999 Siemens A6X30107999 Compact Induction Motor 292/333/387V
Product information
Key Features
- Country of Origin Germany - Subject to change
- Type Compact Asynchronous Motor
- Voltage 292/333/387V
- Hertz 34.2/39.2/45.8 Hz
- Phase 3
- Output Power - Decimal 37.55/41.57/45.59 HP
- Output Power 28/31/34 kW
- Current High/?Low 192A
- Speed 1000/1150/1350 RPM
- Application Main Drives in Presses and Extruders Converting Rotary Axes in the Paper and Printing Industry and Crane Systems
- Enclosure Type Ventilated
- Amps 71/69/66A
- Shaft Dimensions 160 mm H
- Mounting Foot
- Weight 230kg
- Enclosure Rating IP55
- Temperature - Operating: 40 Deg C
Siemens
- Model #:
- A6X30107999
- Part #:
- A6X30107999
A6X30107999 Siemens | BUY OR REPAIR
Overview
Service and Sales: Compact Asynchronous Motor, 292/333/387V, 34.2/39.2/45.8 Hz, 3, 37.55/41.57/45.59 HP, 28/31/34 kW, 192A, 1000/1150/1350 RPM, Main Drives in Presses and Extruders Converting Rotary Axes in the Paper and Printing Industry and Crane Systems, Ventilated, 71/69/66A, 160 mm H, Foot, 230kg, IP55, 40 Deg C
Features
- Country of Origin Germany - Subject to change
- Type Compact Asynchronous Motor
- Voltage 292/333/387V
- Hertz 34.2/39.2/45.8 Hz
- Phase 3
- Output Power - Decimal 37.55/41.57/45.59 HP
- Output Power 28/31/34 kW
- Current High/?Low 192A
- Speed 1000/1150/1350 RPM
- Application Main Drives in Presses and Extruders Converting Rotary Axes in the Paper and Printing Industry and Crane Systems
- Enclosure Type Ventilated
- Amps 71/69/66A
- Shaft Dimensions 160 mm H
- Mounting Foot
- Weight 230kg
- Enclosure Rating IP55
- Temperature - Operating: 40 Deg C
