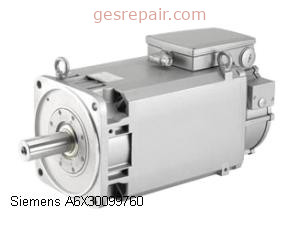

Siemens A6X30099760 Compact Induction Motor 340/395/460V
Siemens A6X30099760 Siemens A6X30099760 Compact Induction Motor 340/395/460V
Product information
Key Features
- Type Compact Asynchronous Motor
- Voltage 340/395/460V
- Hertz 50.5/58.9/67.2 Hz
- Phase 3
- Output Power - Decimal 127.4/147.51/166.29 HP
- Output Power 95/110/124 kW
- Current High/?Low 485A
- Speed 1500/1750/2000 RPM
- Application Main Drives in Presses and Extruders Converting Rotary Axes in the Paper and Printing Industry and Crane Systems
- Enclosure Type Ventilated
- Amps 200/198/196A
- Shaft Dimensions 225 mm H
- Mounting Foot
- Weight 610kg
- Enclosure Rating IP55
- Temperature - Operating: 40 Deg C
Siemens
- Model #:
- A6X30099760
- Part #:
- A6X30099760
A6X30099760 Siemens | BUY OR REPAIR
Overview
Service and Sales: Compact Asynchronous Motor, 340/395/460V, 50.5/58.9/67.2 Hz, 3, 127.4/147.51/166.29 HP, 95/110/124 kW, 485A, 1500/1750/2000 RPM, Main Drives in Presses and Extruders Converting Rotary Axes in the Paper and Printing Industry and Crane Systems, Ventilated, 200/198/196A, 225 mm H, Foot, 610kg, IP55, 40 Deg C
Features
- Type Compact Asynchronous Motor
- Voltage 340/395/460V
- Hertz 50.5/58.9/67.2 Hz
- Phase 3
- Output Power - Decimal 127.4/147.51/166.29 HP
- Output Power 95/110/124 kW
- Current High/?Low 485A
- Speed 1500/1750/2000 RPM
- Application Main Drives in Presses and Extruders Converting Rotary Axes in the Paper and Printing Industry and Crane Systems
- Enclosure Type Ventilated
- Amps 200/198/196A
- Shaft Dimensions 225 mm H
- Mounting Foot
- Weight 610kg
- Enclosure Rating IP55
- Temperature - Operating: 40 Deg C
