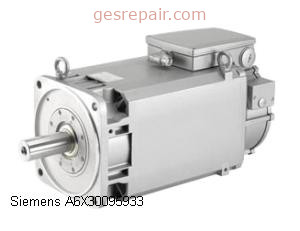

Siemens A6X30095933 Compact Induction Motor 340/390/450V
Siemens A6X30095933 Siemens A6X30095933 Compact Induction Motor 340/390/450V
Product information
Key Features
- Type Compact Asynchronous Motor
- Voltage 340/390/450V
- Hertz 34.0/39.0/45.7 Hz
- Phase 3
- Output Power - Decimal 52.3/59/67.05 HP
- Output Power 39/44/50 kW
- Current High/?Low 205A
- Speed 1000/1150/1350 RPM
- Application Main Drives in Presses and Extruders Converting Rotary Axes in the Paper and Printing Industry and Crane Systems
- Enclosure Type Ventilated
- Amps 87/86/84A
- Shaft Dimensions 180 mm H
- Mounting Foot and Flange
- Weight 350kg
- Enclosure Rating IP55
- Temperature - Operating: 40 Deg C
Siemens
- Model #:
- A6X30095933
- Part #:
- A6X30095933
A6X30095933 Siemens | BUY OR REPAIR
Overview
Service and Sales: Compact Asynchronous Motor, 340/390/450V, 34.0/39.0/45.7 Hz, 3, 52.3/59/67.05 HP, 39/44/50 kW, 205A, 1000/1150/1350 RPM, Main Drives in Presses and Extruders Converting Rotary Axes in the Paper and Printing Industry and Crane Systems, Ventilated, 87/86/84A, 180 mm H, Foot and Flange, 350kg, IP55, 40 Deg C
Features
- Type Compact Asynchronous Motor
- Voltage 340/390/450V
- Hertz 34.0/39.0/45.7 Hz
- Phase 3
- Output Power - Decimal 52.3/59/67.05 HP
- Output Power 39/44/50 kW
- Current High/?Low 205A
- Speed 1000/1150/1350 RPM
- Application Main Drives in Presses and Extruders Converting Rotary Axes in the Paper and Printing Industry and Crane Systems
- Enclosure Type Ventilated
- Amps 87/86/84A
- Shaft Dimensions 180 mm H
- Mounting Foot and Flange
- Weight 350kg
- Enclosure Rating IP55
- Temperature - Operating: 40 Deg C
