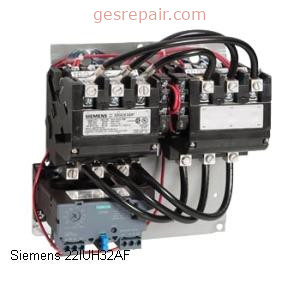

Siemens 22IUH32AF Starter, Reversing; 120V at 60Hz 110V at 50Hz; 50.0-200.0A Motor
Siemens 22IUH32AF Siemens 22IUH32AF Starter, Reversing; 120V at 60Hz 110V at 50Hz; 50.0-200.0A Motor
Product information
Key Features
- Type Non-Combination Full Voltage Reversing Starter
- Construction Standard NEMA 600V AC
- Size NEMA Half Size 3-1/2
- UL Cont. Amps 115A
- Phase 3
- Coil Voltage 120V at 60Hz 110V at 50Hz
- Hp 3-Phase 200V 30 hp
- Hp 3-Phase 230V 40 hp
- Hp 3-Phase 460V 75 hp
- Hp 3-Phase 575V 75 hp
- Enclosure Type Open
- Overload Relay Solid State
- Motor FLA 50.00-200.00A
- Auxiliary Contacts: (1) NO
Siemens
- Model #:
- 22IUH32AF
- Part #:
- 22IUH32AF
22IUH32AF Siemens | BUY OR REPAIR
Overview
Service and Sales: Non-Combination Full Voltage Reversing Starter, NEMA 600V AC, NEMA Half Size 3-1/2, 115A, 3, 120V at 60Hz 110V at 50Hz, 30 hp, 40 hp, 75 hp, 75 hp, Open, Solid State, 50.00-200.00A, (1) NO
Features
- Type Non-Combination Full Voltage Reversing Starter
- Construction Standard NEMA 600V AC
- Size NEMA Half Size 3-1/2
- UL Cont. Amps 115A
- Phase 3
- Coil Voltage 120V at 60Hz 110V at 50Hz
- Hp 3-Phase 200V 30 hp
- Hp 3-Phase 230V 40 hp
- Hp 3-Phase 460V 75 hp
- Hp 3-Phase 575V 75 hp
- Enclosure Type Open
- Overload Relay Solid State
- Motor FLA 50.00-200.00A
- Auxiliary Contacts: (1) NO
