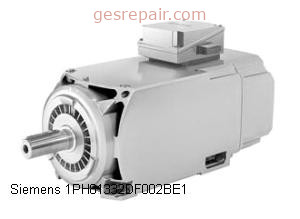

Siemens 1PH81332DF002BE1 Motor Synchronous Compact 316/366/415V
Siemens 1PH81332DF002BE1 Siemens 1PH81332DF002BE1 Motor Synchronous Compact 316/366/415V
Product information
Key Features
- Country of Origin Germany - Subject to change
- Type Compact Synchronous Motor
- Voltage 316/366/415V
- Hertz 50.0/58.3/66.7 Hz
- Phase 3
- Output Power - Decimal 26.69/30.98/35.13 HP
- Output Power 19.9/23.1/26.2 kW
- Current High/?Low 124A
- Speed 1500/1750/2000 RPM
- Application Main Drives in Presses and Extruders Converting Rotary Axes in the Paper and Printing Industry and Crane Systems
- Enclosure Type Ventilated
- Amps 44/43A
- Shaft Dimensions 132 mm H
- Mounting Foot
- Weight 103kg
- Enclosure Rating IP55
- Temperature - Operating: 40 Deg C
Siemens
- Model #:
- 1PH81332DF002BE1
- Part #:
- 1PH81332DF002BE1
- New/Surplus $ 7795
- Refurb. Price $5457 Save up to $ 2338
- Repair Price $3898 Save up to $ 3897
1PH81332DF002BE1 Siemens | BUY OR REPAIR
Overview
Service and Sales: Compact Synchronous Motor, 316/366/415V, 50.0/58.3/66.7 Hz, 3, 26.69/30.98/35.13 HP, 19.9/23.1/26.2 kW, 124A, 1500/1750/2000 RPM, Main Drives in Presses and Extruders Converting Rotary Axes in the Paper and Printing Industry and Crane Systems, Ventilated, 44/43A, 132 mm H, Foot, 103kg, IP55, 40 Deg C
Features
- Country of Origin Germany - Subject to change
- Type Compact Synchronous Motor
- Voltage 316/366/415V
- Hertz 50.0/58.3/66.7 Hz
- Phase 3
- Output Power - Decimal 26.69/30.98/35.13 HP
- Output Power 19.9/23.1/26.2 kW
- Current High/?Low 124A
- Speed 1500/1750/2000 RPM
- Application Main Drives in Presses and Extruders Converting Rotary Axes in the Paper and Printing Industry and Crane Systems
- Enclosure Type Ventilated
- Amps 44/43A
- Shaft Dimensions 132 mm H
- Mounting Foot
- Weight 103kg
- Enclosure Rating IP55
- Temperature - Operating: 40 Deg C
