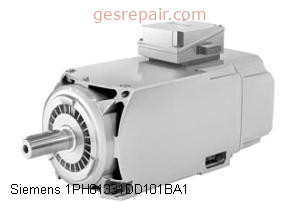

Siemens 1PH81331DD101BA1 Compact Induction Motor 319/361/417V
Siemens 1PH81331DD101BA1 Siemens 1PH81331DD101BA1 Compact Induction Motor 319/361/417V
Product information
Key Features
- Type Compact Asynchronous Motor
- Voltage 319/361/417V
- Hertz 35.0/40.0/46.5 Hz
- Phase 3
- Output Power - Decimal 16.09/18.1/20.12 HP
- Output Power 12/13.5/15 kW
- Current High/?Low 65A
- Speed 1000/1150/1350 RPM
- Application Main Drives in Presses and Extruders Converting Rotary Axes in the Paper and Printing Industry and Crane Systems
- Enclosure Type Ventilated
- Amps 30/29/28A
- Shaft Dimensions 132 mm H
- Mounting Foot
- Weight 106kg
- Enclosure Rating IP55
- Temperature - Operating: 40 Deg C
Siemens
- Model #:
- 1PH81331DD101BA1
- Part #:
- 1PH81331DD101BA1
- New/Surplus $ 7795
- Refurb. Price $5457 Save up to $ 2338
- Repair Price $3898 Save up to $ 3897
1PH81331DD101BA1 Siemens | BUY OR REPAIR
Overview
Service and Sales: Compact Asynchronous Motor, 319/361/417V, 35.0/40.0/46.5 Hz, 3, 16.09/18.1/20.12 HP, 12/13.5/15 kW, 65A, 1000/1150/1350 RPM, Main Drives in Presses and Extruders Converting Rotary Axes in the Paper and Printing Industry and Crane Systems, Ventilated, 30/29/28A, 132 mm H, Foot, 106kg, IP55, 40 Deg C
Features
- Type Compact Asynchronous Motor
- Voltage 319/361/417V
- Hertz 35.0/40.0/46.5 Hz
- Phase 3
- Output Power - Decimal 16.09/18.1/20.12 HP
- Output Power 12/13.5/15 kW
- Current High/?Low 65A
- Speed 1000/1150/1350 RPM
- Application Main Drives in Presses and Extruders Converting Rotary Axes in the Paper and Printing Industry and Crane Systems
- Enclosure Type Ventilated
- Amps 30/29/28A
- Shaft Dimensions 132 mm H
- Mounting Foot
- Weight 106kg
- Enclosure Rating IP55
- Temperature - Operating: 40 Deg C
