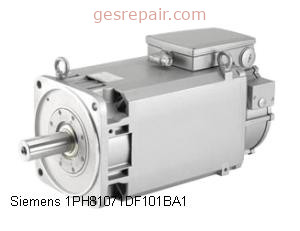

Siemens 1PH81071DF101BA1 Compact Induction Motor 330/380/428V
Siemens 1PH81071DF101BA1 Siemens 1PH81071DF101BA1 Compact Induction Motor 330/380/428V
Product information
Key Features
- Country of Origin Germany - Subject to change
- Type Compact Asynchronous Motor
- Voltage 330/380/428V
- Hertz 52.2/60.4/68.6 Hz
- Phase 3
- Output Power - Decimal 12.07/13.41/14.75 HP
- Output Power 9/10/11 kW
- Current High/?Low 54A
- Speed 1500/1750/2000 RPM
- Application Main Drives in Presses and Extruders Converting Rotary Axes in the Paper and Printing Industry and Crane Systems
- Enclosure Type Ventilated
- Amps 23.5/22/21.5A
- Shaft Dimensions 100 mm H
- Mounting Foot
- Weight 73kg
- Enclosure Rating IP55
- Temperature - Operating: 40 Deg C
Siemens
- Model #:
- 1PH81071DF101BA1
- Part #:
- 1PH81071DF101BA1
- New/Surplus $ 7795
- Refurb. Price $5457 Save up to $ 2338
- Repair Price $3898 Save up to $ 3897
1PH81071DF101BA1 Siemens | BUY OR REPAIR
Overview
Service and Sales: Compact Asynchronous Motor, 330/380/428V, 52.2/60.4/68.6 Hz, 3, 12.07/13.41/14.75 HP, 9/10/11 kW, 54A, 1500/1750/2000 RPM, Main Drives in Presses and Extruders Converting Rotary Axes in the Paper and Printing Industry and Crane Systems, Ventilated, 23.5/22/21.5A, 100 mm H, Foot, 73kg, IP55, 40 Deg C
Features
- Country of Origin Germany - Subject to change
- Type Compact Asynchronous Motor
- Voltage 330/380/428V
- Hertz 52.2/60.4/68.6 Hz
- Phase 3
- Output Power - Decimal 12.07/13.41/14.75 HP
- Output Power 9/10/11 kW
- Current High/?Low 54A
- Speed 1500/1750/2000 RPM
- Application Main Drives in Presses and Extruders Converting Rotary Axes in the Paper and Printing Industry and Crane Systems
- Enclosure Type Ventilated
- Amps 23.5/22/21.5A
- Shaft Dimensions 100 mm H
- Mounting Foot
- Weight 73kg
- Enclosure Rating IP55
- Temperature - Operating: 40 Deg C
