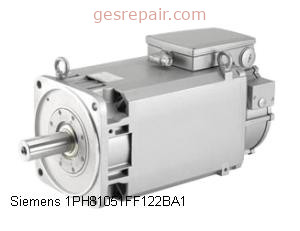

Siemens 1PH81051FF122BA1 Compact Induction Motor 348/400/453V
Siemens 1PH81051FF122BA1 Siemens 1PH81051FF122BA1 Compact Induction Motor 348/400/453V
Product information
Key Features
- Type Compact Asynchronous Motor
- Voltage 348/400/453V
- Hertz 51.9/60.2/68.5 Hz
- Phase 3
- Output Power - Decimal 9.39/10.73/12.07 HP
- Output Power 7/8/9 kW
- Current High/?Low 38A
- Speed 1500/1750/2000 RPM
- Application Main Drives in Presses and Extruders Converting Rotary Axes in the Paper and Printing Industry and Crane Systems
- Enclosure Type Ventilated
- Amps 17.5/17A
- Shaft Dimensions 100 mm H
- Mounting Flange
- Weight 65kg
- Enclosure Rating IP55
- Temperature - Operating: 40 Deg C
Siemens
- Model #:
- 1PH81051FF122BA1
- Part #:
- 1PH81051FF122BA1
- New/Surplus $ 7795
- Refurb. Price $5457 Save up to $ 2338
- Repair Price $3898 Save up to $ 3897
1PH81051FF122BA1 Siemens | BUY OR REPAIR
Overview
Service and Sales: Compact Asynchronous Motor, 348/400/453V, 51.9/60.2/68.5 Hz, 3, 9.39/10.73/12.07 HP, 7/8/9 kW, 38A, 1500/1750/2000 RPM, Main Drives in Presses and Extruders Converting Rotary Axes in the Paper and Printing Industry and Crane Systems, Ventilated, 17.5/17A, 100 mm H, Flange, 65kg, IP55, 40 Deg C
Features
- Type Compact Asynchronous Motor
- Voltage 348/400/453V
- Hertz 51.9/60.2/68.5 Hz
- Phase 3
- Output Power - Decimal 9.39/10.73/12.07 HP
- Output Power 7/8/9 kW
- Current High/?Low 38A
- Speed 1500/1750/2000 RPM
- Application Main Drives in Presses and Extruders Converting Rotary Axes in the Paper and Printing Industry and Crane Systems
- Enclosure Type Ventilated
- Amps 17.5/17A
- Shaft Dimensions 100 mm H
- Mounting Flange
- Weight 65kg
- Enclosure Rating IP55
- Temperature - Operating: 40 Deg C
