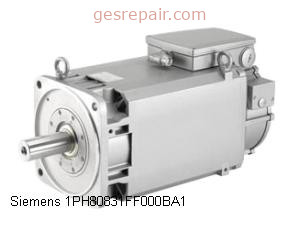

Siemens 1PH80831FF000BA1 Compact Induction Motor 346/398/447V
Siemens 1PH80831FF000BA1 Siemens 1PH80831FF000BA1 Compact Induction Motor 346/398/447V
Product information
Key Features
- Country of Origin Germany - Subject to change
- Type Compact Asynchronous Motor
- Voltage 346/398/447V
- Hertz 53.3/61.7/70.0 Hz
- Phase 3
- Output Power - Decimal 3.75/4.43/4.96 HP
- Output Power 2.8/3.3/3.7 kW
- Current High/?Low 18A
- Speed 1500/1750/2000 RPM
- Application Main Drives in Presses and Extruders Converting Rotary Axes in the Paper and Printing Industry and Crane Systems
- Enclosure Type Ventilated
- Amps 7.5/7.6A
- Shaft Dimensions 80 mm H
- Mounting Foot
- Weight 32kg
- Enclosure Rating IP55
- Temperature - Operating: 40 Deg C
Siemens
- Model #:
- 1PH80831FF000BA1
- Part #:
- 1PH80831FF000BA1
- New/Surplus $ 7795
- Refurb. Price $5457 Save up to $ 2338
- Repair Price $3898 Save up to $ 3897
1PH80831FF000BA1 Siemens | BUY OR REPAIR
Overview
Service and Sales: Compact Asynchronous Motor, 346/398/447V, 53.3/61.7/70.0 Hz, 3, 3.75/4.43/4.96 HP, 2.8/3.3/3.7 kW, 18A, 1500/1750/2000 RPM, Main Drives in Presses and Extruders Converting Rotary Axes in the Paper and Printing Industry and Crane Systems, Ventilated, 7.5/7.6A, 80 mm H, Foot, 32kg, IP55, 40 Deg C
Features
- Country of Origin Germany - Subject to change
- Type Compact Asynchronous Motor
- Voltage 346/398/447V
- Hertz 53.3/61.7/70.0 Hz
- Phase 3
- Output Power - Decimal 3.75/4.43/4.96 HP
- Output Power 2.8/3.3/3.7 kW
- Current High/?Low 18A
- Speed 1500/1750/2000 RPM
- Application Main Drives in Presses and Extruders Converting Rotary Axes in the Paper and Printing Industry and Crane Systems
- Enclosure Type Ventilated
- Amps 7.5/7.6A
- Shaft Dimensions 80 mm H
- Mounting Foot
- Weight 32kg
- Enclosure Rating IP55
- Temperature - Operating: 40 Deg C
