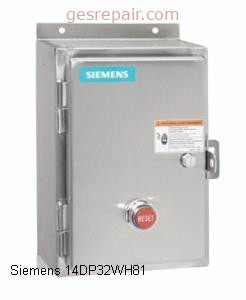

Siemens 14DP32WH81 Starter, Non-Reversing; 440-480V at 60Hz; 0.85-1.15A Motor
Siemens 14DP32WH81 Siemens 14DP32WH81 Starter, Non-Reversing; 440-480V at 60Hz; 0.85-1.15A Motor
Product information
Key Features
- Type Non-Combination Full Voltage Non-Reversing Starter
- Construction Standard NEMA 600V AC
- Size NEMA Size 1
- UL Cont. Amps 27A
- Phase 3
- Coil Voltage 440-480V at 60Hz 380-440V at 50Hz
- Hp 3-Phase 200V 7.5 hp
- Hp 3-Phase 230V 7.5 hp
- Hp 3-Phase 460V 10 hp
- Hp 3-Phase 575V 10 hp
- Enclosure Type NEMA 4 4X
- Overload Relay Ambient Compensated Bimetal
- Motor FLA 0.85-1.15A
- Auxiliary Contacts: (1) NO
Siemens
- Model #:
- 14DP32WH81
- Part #:
- 14DP32WH81
14DP32WH81 Siemens | BUY OR REPAIR
Overview
Service and Sales: Non-Combination Full Voltage Non-Reversing Starter, NEMA 600V AC, NEMA Size 1, 27A, 3, 440-480V at 60Hz 380-440V at 50Hz, 7.5 hp, 7.5 hp, 10 hp, 10 hp, NEMA 4 4X, Ambient Compensated Bimetal, 0.85-1.15A, (1) NO
Features
- Type Non-Combination Full Voltage Non-Reversing Starter
- Construction Standard NEMA 600V AC
- Size NEMA Size 1
- UL Cont. Amps 27A
- Phase 3
- Coil Voltage 440-480V at 60Hz 380-440V at 50Hz
- Hp 3-Phase 200V 7.5 hp
- Hp 3-Phase 230V 7.5 hp
- Hp 3-Phase 460V 10 hp
- Hp 3-Phase 575V 10 hp
- Enclosure Type NEMA 4 4X
- Overload Relay Ambient Compensated Bimetal
- Motor FLA 0.85-1.15A
- Auxiliary Contacts: (1) NO
