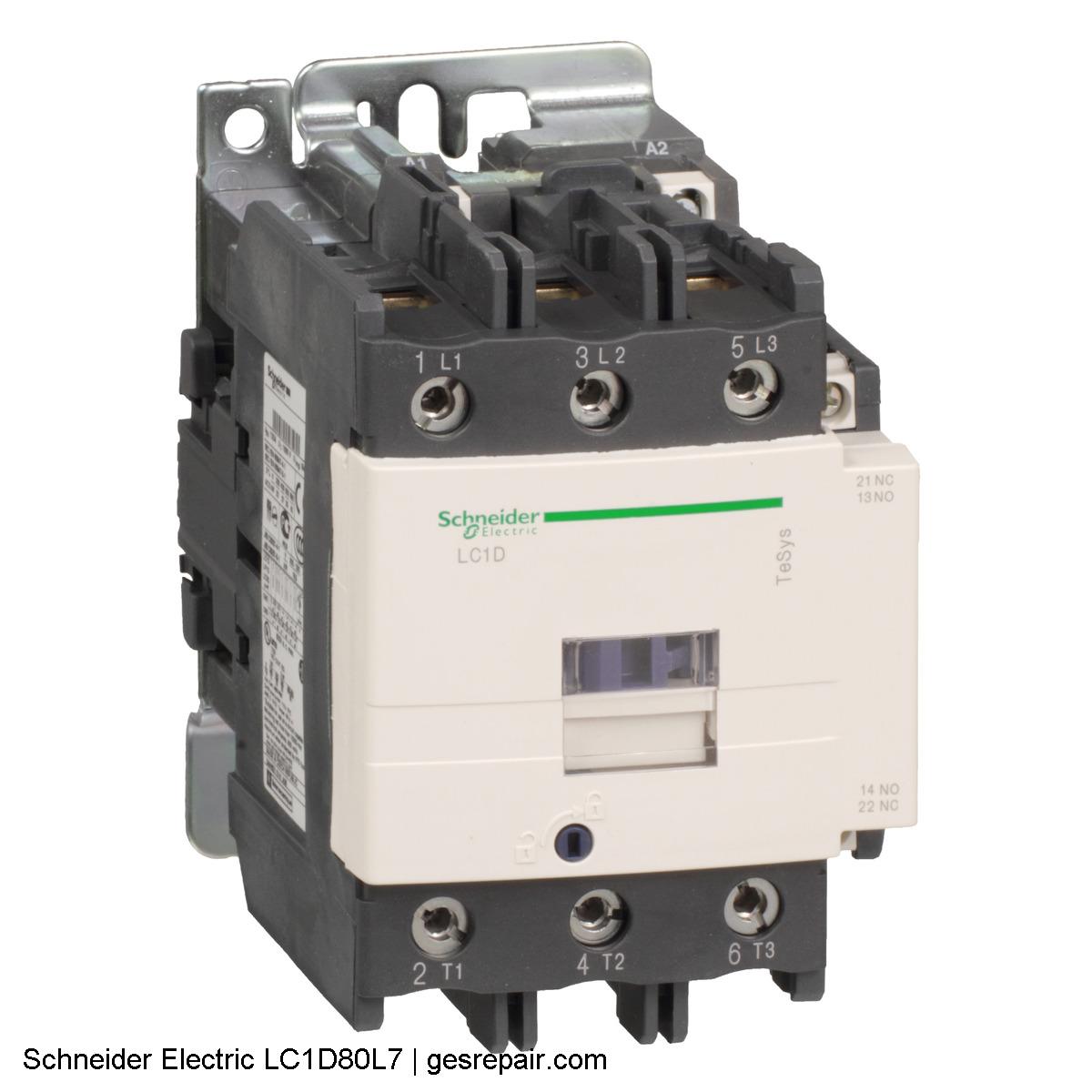

Schneider Electric LC1D80L7 Contactors
Schneider Electric LC1D80L7 Schneider Electric LC1D80L7 Contactors
Product information
Key Features
- Catalog Number LC1D80L7
- Manufacturer Schneider Electric
- Brand Schneider Electric
- Warranty Description Warranty
- Country of Origin Czech Republic
- Made in USA No
- Application Resistive load;motor control
- Coil Voltage 200 V AC 50/60 Hz
- Connection Control circuit: screw clamp terminals 2 1-2.5 mm - cable stiffness: flexible with cable end;control circuit: screw clamp terminals 1 1-2.5 mm - cable stiffness: flexible with cable end;control circuit: screw clamp terminals 1 1-4 mm - cable stiffness: flexible without cable end;control circuit: screw clamp terminals 2 1-4 mm - cable stiffness: flexible without cable end;control circuit: screw clamp terminals 1 1-4 mm - cable stiffness: solid without cable end;control circuit: screw clamp terminals 2 1-4 mm - cable stiffness: solid without cable end;power circuit: connector 1 4-50 mm - cable stiffness: flexible without cable end;power circuit: connector 2 4-25 mm - cable stiffness: flexible without cable end;power circuit: connector 1 4-50 mm - cable stiffness: flexible with cable end;power circuit: connector 2 4-16 mm - cable stiffness: flexible with cable end;power circuit: connector 1 4-50 mm - cable stiffness: solid without cable end;power circuit: connector 2 4-25 mm - cable stiffness: solid
- Contact Configuration 1 NO + 1 NC;3 NO;Mechanically linked 1 NO + 1 NC IEC 60947-5-1;mirror contact 1 NC IEC 60947-4-1
- Mounting Rail Plate
- Operating Cycles 25 -- 400 Hz
- Special Features Without built-in suppressor module
- GTIN 03389110441826
- Item Type Contactor
Schneider Electric
- Model #:
- LC1D80L7
- Part #:
- LC1D80L7
- New/Surplus $ 757
- Refurb. Price $530 Save up to $ 227
- Repair Price $379 Save up to $ 378
LC1D80L7 Schneider Electric | BUY OR REPAIR
Overview
Industrial Automation and Control, Electrical Controls and Accessories, Contactors, Contactors, IEC contactor, TeSys D, nonreversing, 80A, 60HP at 480VAC, up to 100kA SCCR, 3 phase, 3 NO, 200VAC 50/60Hz coil, open
Features
- Catalog Number LC1D80L7
- Manufacturer Schneider Electric
- Brand Schneider Electric
- Warranty Description Warranty
- Country of Origin Czech Republic
- Made in USA No
- Application Resistive load;motor control
- Coil Voltage 200 V AC 50/60 Hz
- Connection Control circuit: screw clamp terminals 2 1-2.5 mm - cable stiffness: flexible with cable end;control circuit: screw clamp terminals 1 1-2.5 mm - cable stiffness: flexible with cable end;control circuit: screw clamp terminals 1 1-4 mm - cable stiffness: flexible without cable end;control circuit: screw clamp terminals 2 1-4 mm - cable stiffness: flexible without cable end;control circuit: screw clamp terminals 1 1-4 mm - cable stiffness: solid without cable end;control circuit: screw clamp terminals 2 1-4 mm - cable stiffness: solid without cable end;power circuit: connector 1 4-50 mm - cable stiffness: flexible without cable end;power circuit: connector 2 4-25 mm - cable stiffness: flexible without cable end;power circuit: connector 1 4-50 mm - cable stiffness: flexible with cable end;power circuit: connector 2 4-16 mm - cable stiffness: flexible with cable end;power circuit: connector 1 4-50 mm - cable stiffness: solid without cable end;power circuit: connector 2 4-25 mm - cable stiffness: solid
- Contact Configuration 1 NO + 1 NC;3 NO;Mechanically linked 1 NO + 1 NC IEC 60947-5-1;mirror contact 1 NC IEC 60947-4-1
- Mounting Rail Plate
- Operating Cycles 25 -- 400 Hz
- Special Features Without built-in suppressor module
- GTIN 03389110441826
- Item Type Contactor
