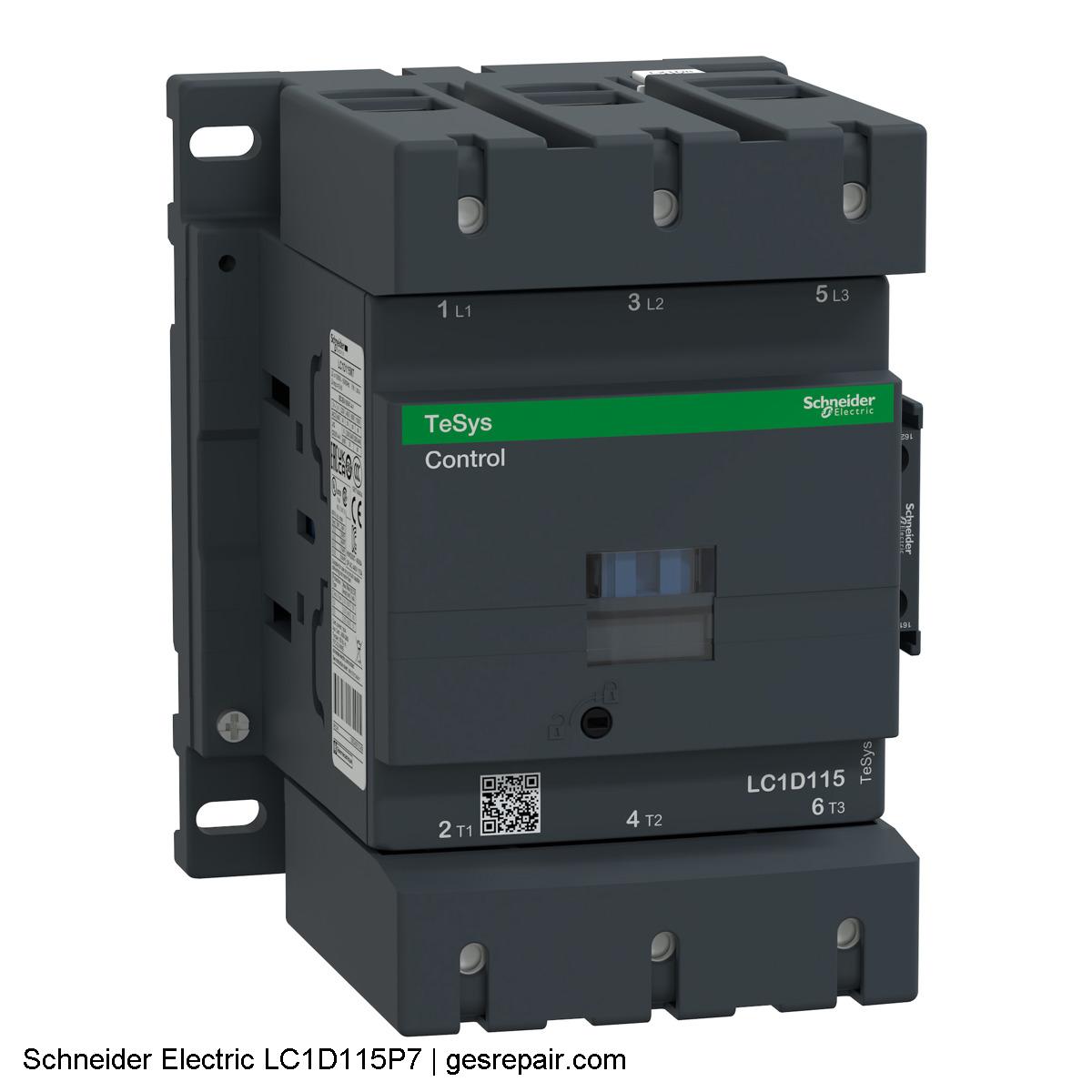

Schneider Electric LC1D115P7 Contactors
Schneider Electric LC1D115P7 Schneider Electric LC1D115P7 Contactors
Product information
Key Features
- Catalog Number LC1D115P7
- Manufacturer Schneider Electric
- Brand Schneider Electric
- Warranty Description Warranty
- Country of Origin Czech Republic
- Made in USA No
- Application Motor control;resistive load
- Coil Voltage 230 V AC 50/60 Hz
- Connection Control circuit: screw clamp terminals 2 1-2.5 mm - cable stiffness: flexible with cable end;control circuit: screw clamp terminals 1 1-2.5 mm - cable stiffness: flexible with cable end;control circuit: screw clamp terminals 1 1-2.5 mm - cable stiffness: flexible without cable end;control circuit: screw clamp terminals 2 1-2.5 mm - cable stiffness: flexible without cable end;control circuit: screw clamp terminals 1 1-2.5 mm - cable stiffness: solid without cable end;control circuit: screw clamp terminals 2 1-2.5 mm - cable stiffness: solid without cable end;power circuit: connector 1 10-120 mm - cable stiffness: flexible without cable end;power circuit: connector 2 10-50 mm - cable stiffness: flexible without cable end;power circuit: connector 1 10-120 mm - cable stiffness: flexible with cable end;power circuit: connector 2 10-50 mm - cable stiffness: flexible with cable end;power circuit: connector 1 10-120 mm - cable stiffness: solid without cable end;power circuit: connector 2 10-50 mm - cable
- Contact Configuration 1 NO + 1 NC;3 NO;Mechanically linked 1 NO + 1 NC IEC 60947-5-1;mirror contact 1 NC IEC 60947-4-1
- Mounting Rail Plate
- Operating Cycles 25 -- 400 Hz
- Special Features Built-in bidirectional peak limiting diode suppressor
- GTIN 03389110377224
- Item Type Contactor
Schneider Electric
- Model #:
- LC1D115P7
- Part #:
- LC1D115P7
- New/Surplus $ 999
- Refurb. Price $699 Save up to $ 300
- Repair Price $500 Save up to $ 499
LC1D115P7 Schneider Electric | BUY OR REPAIR
Overview
Industrial Automation and Control, Electrical Controls and Accessories, Contactors, Contactors, IEC contactor, TeSys Deca, nonreversing, 115A, 75HP at 480VAC, up to 100kA SCCR, 3 phase, 3 NO, 230VAC 50/60Hz coil, open
Features
- Catalog Number LC1D115P7
- Manufacturer Schneider Electric
- Brand Schneider Electric
- Warranty Description Warranty
- Country of Origin Czech Republic
- Made in USA No
- Application Motor control;resistive load
- Coil Voltage 230 V AC 50/60 Hz
- Connection Control circuit: screw clamp terminals 2 1-2.5 mm - cable stiffness: flexible with cable end;control circuit: screw clamp terminals 1 1-2.5 mm - cable stiffness: flexible with cable end;control circuit: screw clamp terminals 1 1-2.5 mm - cable stiffness: flexible without cable end;control circuit: screw clamp terminals 2 1-2.5 mm - cable stiffness: flexible without cable end;control circuit: screw clamp terminals 1 1-2.5 mm - cable stiffness: solid without cable end;control circuit: screw clamp terminals 2 1-2.5 mm - cable stiffness: solid without cable end;power circuit: connector 1 10-120 mm - cable stiffness: flexible without cable end;power circuit: connector 2 10-50 mm - cable stiffness: flexible without cable end;power circuit: connector 1 10-120 mm - cable stiffness: flexible with cable end;power circuit: connector 2 10-50 mm - cable stiffness: flexible with cable end;power circuit: connector 1 10-120 mm - cable stiffness: solid without cable end;power circuit: connector 2 10-50 mm - cable
- Contact Configuration 1 NO + 1 NC;3 NO;Mechanically linked 1 NO + 1 NC IEC 60947-5-1;mirror contact 1 NC IEC 60947-4-1
- Mounting Rail Plate
- Operating Cycles 25 -- 400 Hz
- Special Features Built-in bidirectional peak limiting diode suppressor
- GTIN 03389110377224
- Item Type Contactor
