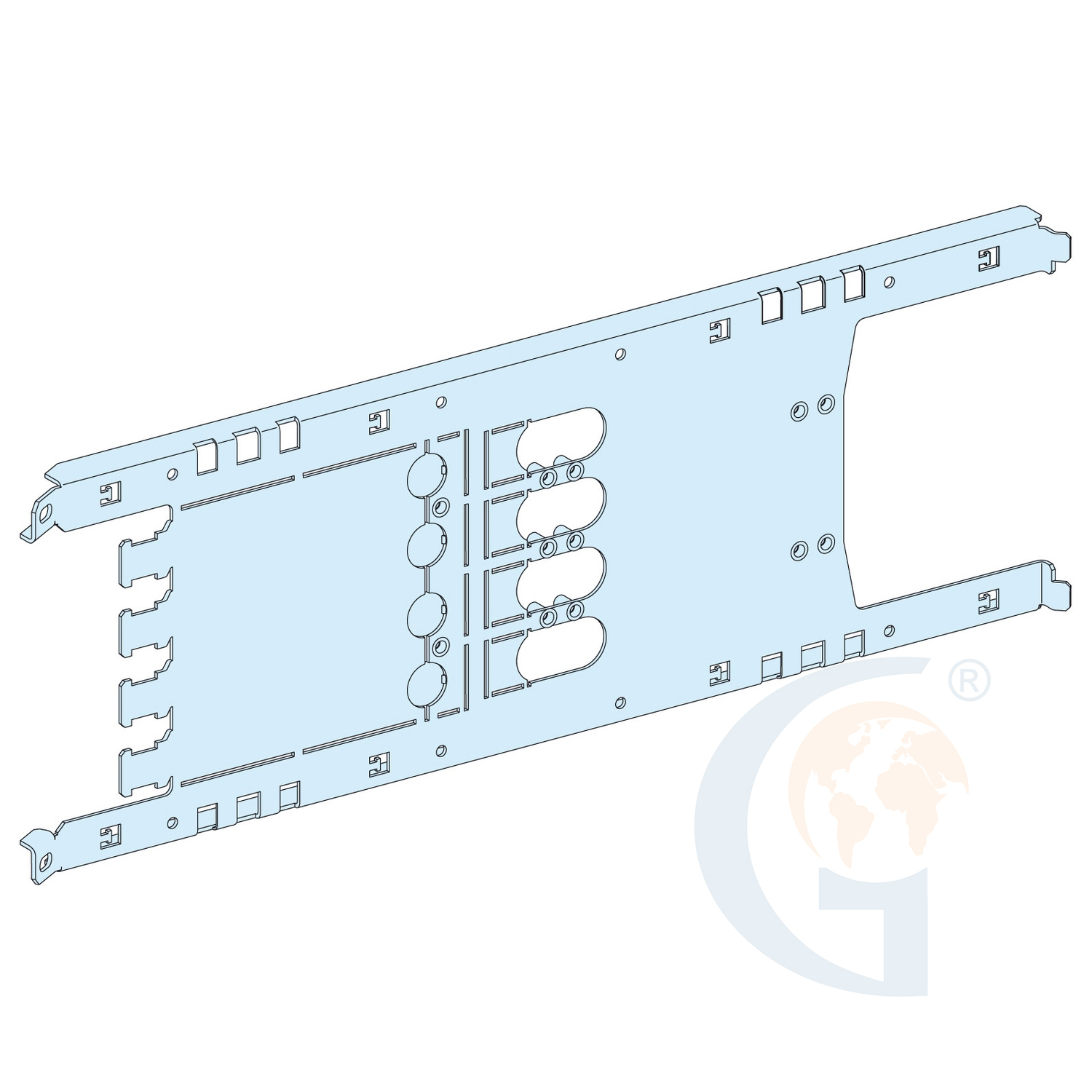

MOUNTING PLATE VIGI NSX/CVS PLUGIN TOGGLE/ROT/MOT – 4P 250A HORIZONTAL WIDTH 650

Features

• range Prisma
• range compatibility Prisma P
• product or component type Mounting plate
• accessory / separate part category Installation accessory
• installed device Easypact: fixed CVS100...160 without earth leakage protection - control: direct front rotary handle - horizontal installation Easypact: fixed CVS250 without earth leakage protection - control: direct front rotary handle - horizontal installation Compact: fixed NSX100...160 without earth leakage protection - control: direct front rotary handle - horizontal installation Compact: fixed NSX250 without earth leakage protection - control: direct front rotary handle - horizontal installation Easypact: fixed CVS100...160 with earth leakage protection - control: direct front rotary handle - horizontal installation Easypact: fixed CVS250 with earth leakage protection - control: direct front rotary handle - horizontal installation Compact: fixed NSX100...160 with earth leakage protection - control: direct front rotary handle - horizontal installation Compact: fixed NSX250 with earth leakage protection - control: direct front rotary handle - horizontal installation Compact: fixed NSX100...160 without earth leakage protection - control: motor mechanism - horizontal installation Compact: plug-in NSX100...160 without earth leakage protection - control: toggle - horizontal installation Compact: fixed NSX250 without earth leakage protection - control: motor mechanism - horizontal installation Compact: plug-in NSX250 without earth leakage protection - control: toggle - horizontal installation Compact: plug-in NSX100...160 without earth leakage protection - control: direct front rotary handle - horizontal installation Compact: plug-in NSX100...160 without earth leakage protection - control: motor mechanism - horizontal installation Compact: plug-in NSX250 without earth leakage protection - control: direct front rotary handle - horizontal installation Compact: plug-in NSX250 without earth leakage protection - control: motor mechanism - horizontal installation Compact: plug-in NSX100...160 with earth leakage protection - control: toggle - horizontal installation Compact: fixed NSX100...160 with earth leakage protection - control: motor mechanism - horizontal installation Compact: plug-in NSX100...160 with earth leakage protection - control: direct front rotary handle - horizontal installation Compact: plug-in NSX100...160 with earth leakage protection - control: motor mechanism - horizontal installation Compact: plug-in NSX250 with earth leakage protection - control: toggle - horizontal installation Compact: fixed NSX250 with earth leakage protection - control: motor mechanism - horizontal installation Compact: plug-in NSX250 with earth leakage protection - control: direct front rotary handle - horizontal installation Compact: plug-in NSX250 with earth leakage protection - control: motor mechanism - horizontal installation
• poles description 1 x 4P: fixed CVS100...160 horizontal installation 1 x 4P: fixed CVS250 horizontal installation 1 x 4P: fixed NSX100...160 horizontal installation 1 x 4P: fixed NSX250 horizontal installation 1 x 4P: plug-in NSX100...160 horizontal installation 1 x 4P: plug-in NSX250 horizontal installation
• installation description Cubicle - width 650 mm depth 400 mm
• number of vertical modules [50 mm] 4 module(s): CVS100...160 without earth leakage protection
• height direct in 650 mm Widecubicle 4 module(s): CVS250 without earth leakage protection
• net weight direct in 650 mm Widecubicle 4 module(s): NSX100...160 without earth leakage protection
• surface finish direct in 650 mm Widecubicle 4 module(s): NSX250 without earth leakage protection
• direct in 650 mm Widecubicle 4 module(s): CVS100...160 with earth leakage protection
• direct in 650 mm Widecubicle 4 module(s): CVS250 with earth leakage protection
• direct in 650 mm Widecubicle 4 module(s): NSX100...160 with earth leakage protection
• direct in 650 mm Widecubicle 4 module(s): NSX250 with earth leakage protection
• direct in 650 mm Widecubicle
• 200 mm
• 2.36 kg
• Smooth Matt
