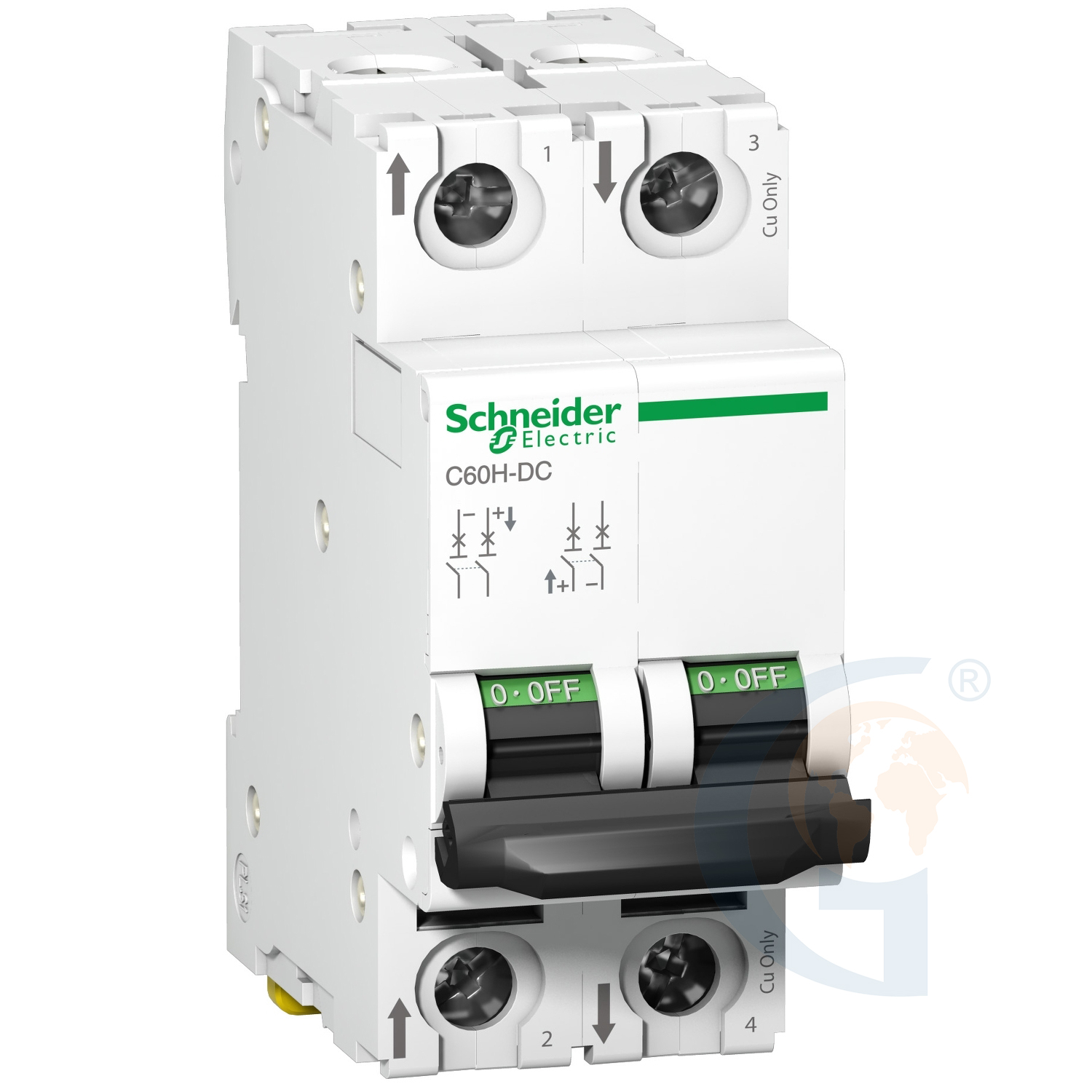

MINIATURE CIRCUIT BREAKER – C60H – 2 POLES – 5 A – C CURVE

Features

• range Acti 9
• product name Acti 9 C60H-DC
• product or component type Miniature circuit-breaker
• device short name C60H-DC
• device application Distribution
• poles description 2P
• number of protected poles 2
• [In] rated current 5 A at 25 °C
• network type DC
• trip unit technology Thermal-magnetic
• curve code C
• breaking capacity 10 kA Icu at 440 V DC conforming to EN 60947-2 10 kA Icu at 440 V DC conforming to IEC 60947-2 6 kA Icu at 500 V DC conforming to EN 60947-2 6 kA Icu at 500 V DC conforming to IEC 60947-2 20 kA Icu at 220 V DC conforming to GB 14048.2 20 kA Icu at 220 V DC conforming to IEC 60947-2 20 kA Icu at 250 V DC conforming to GB 14048.2 20 kA Icu at 250 V DC conforming to IEC 60947-2
• utilisation category Category A conforming to EN 60947-2 Category A conforming to IEC 60947-2
• suitability for isolation Yes conforming to IEC 60947-2 Yes conforming to EN 60947-2
• network frequency 50/60 Hz
• [Ue] rated operational voltage 500 V DC
• [Ics] rated service breaking capacity 15 kA 75 % conforming to EN 60947-2 - 220 V DC 15 kA 75 % conforming to IEC 60947-2 - 220 V DC 15 kA 75 % conforming to EN 60947-2 - 250 V DC 15 kA 75 % conforming to IEC 60947-2 - 250 V DC 4.5 kA 75 % conforming to EN 60947-2 - 500 V DC 4.5 kA 75 % conforming to IEC 60947-2 - 500 V DC 7.5 kA 75 % conforming to EN 60947-2 - 440 V DC 7.5 kA 75 % conforming to IEC 60947-2 - 440 V DC
• [Ui] rated insulation voltage 500 V DC conforming to IEC 60947-2 500 V DC conforming to EN 60947-2
• [Uimp] rated impulse withstand voltage 6 kV conforming to EN 60947-2 6 kV conforming to IEC 60947-2
