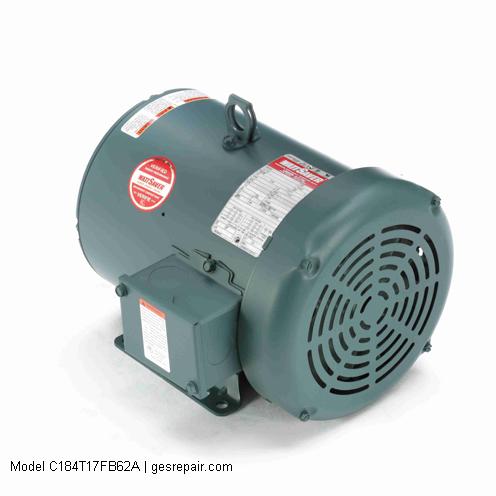

MARATHON ELECTRIC Electric Motors Model C184T17FB62A Service, Sales, Replacement Parts
MARATHON ELECTRIC C184T17FB62A MARATHON ELECTRIC Electric Motors Model C184T17FB62A Service, Sales, Replacement Parts
Product information
Key Features
- Motor Phase 3 ph
- Motor Horsepower 5 hp
- Synchronous Rpm 1800 rpm
- Motor Supply Voltage 230/460 V
- Frame Size 184T
- Enclosure Type TEFC (Totally Enclosed Fan Cooled)
- Frequency Rating 60 Hz
- Base RPM 1760 rpm
- Assembly Box Mounting F2/F1 Capable
- Duty Condition Type Continuous Duty
MARATHON ELECTRIC
- Model #:
- C184T17FB62A
- Part #:
- C184T17FB62A
- New/Surplus $ 1043
- Refurb. Price $730 Save up to $ 313
- Repair Price $522 Save up to $ 521
C184T17FB62A MARATHON ELECTRIC | BUY OR REPAIR
Overview
General Purpose Motor – 5 hp, 1800 rpm, 3 ph, 230/460 V, 184T Frame, TEFC (Totally Enclosed Fan Cooled) Enclosure, 60 Hz, 1760 rpm Base, Rigid Base Mount, Continuous Duty
Features
- Motor Phase 3 ph
- Motor Horsepower 5 hp
- Synchronous Rpm 1800 rpm
- Motor Supply Voltage 230/460 V
- Frame Size 184T
- Enclosure Type TEFC (Totally Enclosed Fan Cooled)
- Frequency Rating 60 Hz
- Base RPM 1760 rpm
- Assembly Box Mounting F2/F1 Capable
- Duty Condition Type Continuous Duty
- Mounting Type Rigid Base
- Thermal Protection None
- Electrical Type Squirrel Cage Induction Run
- Full Load Efficiency 89.50 %
- KVA Code J
- kW 3.70 kW
- Motor Orientation Horizontal
- Motor Poles 4-pole
- Number Of Speeds 1
- Description General Purpose Motor 5 HP 3 Ph 60 Hz 230/460 V 1800 RPM 184T Frame TEFC
- Starting Method Across The Line
- Volts @ Frequency Contact Global Electronic Services
- Description Keyword 5 hp
- Shaft Diameter 1.1250 in
- Shaft Rotation Reversible
- Shaft Type T
- Motor Length Less Shaft 9.50 in
- Overall Length C Dimension 14.96 in
- Ambient Temperature Range 40 C
- Opposite Drive End Bearing Type Ball
- Type Of Bearing Ball Bearing
- NEMA Design Class B
- Service Factor 1.15
- Frame Material Rolled Steel
- Insulation Class F
- IP Rating 43
- Standards Met CE CSA UL Recognized
- Drive End Bearing Size 6206
- Opposite Drive End Bearing Size 6205
- Overload Protector No Protection
- Weight 90.00 lbs
- Harmonization Code 8501.52.4000
- Manufacturer Upc Number 691720211960
- UPC_NO 691720211960
- Manufacturer Product Page Contact Global Electronic Services
- Wiring Diagram Contact Global Electronic Services
- 2D Drawing Contact Global Electronic Services
- Voltage 230/460 V
- Product Type General Purpose Motors
