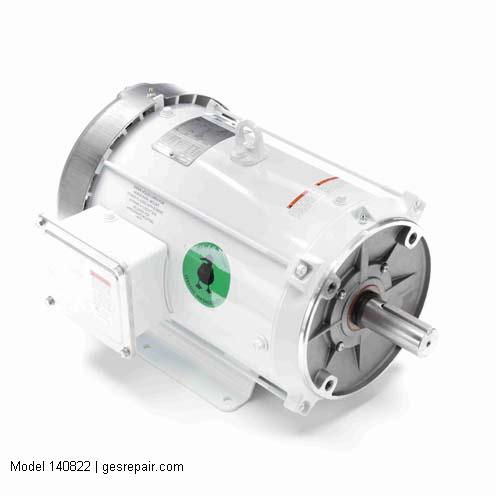

MARATHON ELECTRIC Electric Motors Model 140822 Service, Sales, Replacement Parts
MARATHON ELECTRIC 140822 MARATHON ELECTRIC Electric Motors Model 140822 Service, Sales, Replacement Parts
Product information
Key Features
- Motor Category General Purpose Motor (Painted)
- Motor Phase 3 ph
- Motor Horsepower 7-1/2 hp
- Synchronous Rpm 1800 rpm
- Motor Supply Voltage 208-230/460 V
- Frame Size 213TC
- Enclosure Type TEFC (Totally Enclosed Fan Cooled)
- Frequency Rating 60 Hz
- Assembly Box Mounting F1 Only
- Thermal Protection None
MARATHON ELECTRIC
- Model #:
- 140822
- Part #:
- 140822
- New/Surplus $ 2539
- Refurb. Price $1777 Save up to $ 762
- Repair Price $1270 Save up to $ 1269
140822 MARATHON ELECTRIC | BUY OR REPAIR
Overview
General Purpose Washdown Duty Motor (Painted) – 7-1/2 hp, 1800 rpm, 3 ph, 208-230/460 V, 213TC Frame, TEFC (Totally Enclosed Fan Cooled) Enclosure, 50/60 Hz, C-Face Flange / Rigid Base Mount
Features
- Motor Category General Purpose Motor (Painted)
- Motor Phase 3 ph
- Motor Horsepower 7-1/2 hp
- Synchronous Rpm 1800 rpm
- Motor Supply Voltage 208-230/460 V
- Frame Size 213TC
- Enclosure Type TEFC (Totally Enclosed Fan Cooled)
- Frequency Rating 60 Hz
- Assembly Box Mounting F1 Only
- Thermal Protection None
- Electrical Type Squirrel Cage Induction Run
- KVA Code J
- Starting Method Across The Line
- Full Load Efficiency 0.92 %
- Motor Orientation Horizontal
- Description MARATHON ELECTRIC Electric Motors 140822
- Motor Poles 4-pole
- Volts @ Frequency Contact Global Electronic Services
- Description Keyword 7-1/2 hp
- Shaft Type T
- Shaft Diameter 1.3750 in
- Overall Length C Dimension 17.71 in
- Warranty 3 Year Warranty
- Drive End Bearing Size 6209
- Opposite Drive End Bearing Size 6206
- Opposite Drive End Bearing Type Ball
- Type Of Bearing Ball
- NEMA Design Class B
- Service Factor 1.25
- Frame Material Rolled Steel
- Insulation Class F
- IP Rating 55
- Harmonization Code 8501.52.4000
- Weight 157.00 lbs
- Manufacturer Catalog Contact Global Electronic Services
- Manufacturer Catalog Number 140822.00
- Manufacturer Product Page Contact Global Electronic Services
- Manufacturer Upc Number 691720000243
- UPC_NO 691720000243
- Technical Specifications Contact Global Electronic Services
- 2D Drawing Contact Global Electronic Services
- Wiring Diagram Contact Global Electronic Services
- Mounting Type Rigid Base
- Number Of Speeds 1
- Overload Protector No Protection
- Voltage 230/460 V
- Product Type Washdown Duty Motors
