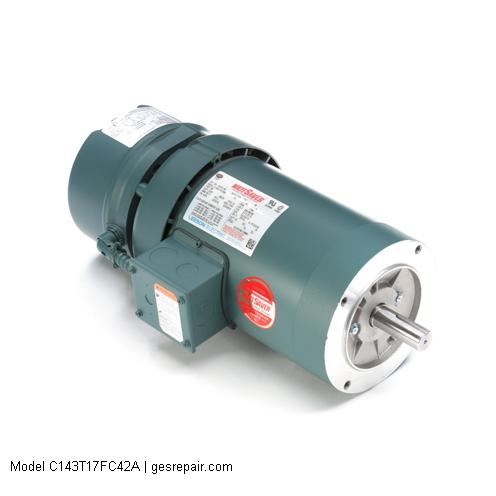

LEESON (RRX) Electric Motors Model C143T17FC42A Service, Sales, Replacement Parts
LEESON (RRX) C143T17FC42A LEESON (RRX) Electric Motors Model C143T17FC42A Service, Sales, Replacement Parts
Product information
Key Features
- Motor Category General Purpose Brake Motor
- Motor Phase 3 ph
- Motor Horsepower 1 hp
- Synchronous Rpm 1800 rpm
- Motor Supply Voltage 208-230/460 V
- Frame Size 143TC
- Enclosure Type TEFC (Totally Enclosed Fan Cooled)
- Frequency Rating 60 Hz
- Duty Condition Type Continuous Duty
- Base RPM 1760 rpm
LEESON (RRX)
- Model #:
- C143T17FC42A
- Part #:
- C143T17FC42A
- New/Surplus $ 2183
- Refurb. Price $1528 Save up to $ 655
- Repair Price $1092 Save up to $ 1091
C143T17FC42A LEESON (RRX) | BUY OR REPAIR
Overview
General Purpose Brake Motor – 1 hp, 1800 rpm, 3 ph, 208-230/460 V, 143TC Frame, TEFC (Totally Enclosed Fan Cooled) Enclosure, 60 Hz, 1760 rpm Base, Continuous Duty
Features
- Motor Category General Purpose Brake Motor
- Motor Phase 3 ph
- Motor Horsepower 1 hp
- Synchronous Rpm 1800 rpm
- Motor Supply Voltage 208-230/460 V
- Frame Size 143TC
- Enclosure Type TEFC (Totally Enclosed Fan Cooled)
- Frequency Rating 60 Hz
- Duty Condition Type Continuous Duty
- Base RPM 1760 rpm
- Full Load Current 3.20-3.20 / 1.60 A
- Full Load Efficiency 85.50 %
- Electrical Type Squirrel Cage Induction Run
- KVA Code N
- Motor Orientation Horizontal
- Motor Poles 4-pole
- Starting Method Across The Line
- Volts @ Frequency Contact Global Electronic Services
- kW 0.75 kW
- Shaft Type T
- Description Brake Motor 1 HP 3 Ph 60 Hz 230/460 V 1800 RPM 143TC Frame TEFC
- Shaft Diameter 0.8750 in
- Description Keyword 1 hp
- Shaft Rotation Reversible
- Motor Length Less Shaft 7.00 in
- Overall Length C Dimension 17.73 in
- Drive End Bearing Size 6205
- Opposite Drive End Bearing Size 6203
- Opposite Drive End Bearing Type Ball
- Type Of Bearing Ball Bearing
- NEMA Design Class B
- Service Factor 1.15
- Frame Material Rolled Steel
- Ambient Temperature Range 40 C
- Assembly Box Mounting F1 Only
- Insulation Class F
- Thermal Protection None
- IP Rating 43
- Standards Met UL Recognized CSA
- Harmonization Code 8501.52.4000
- Weight 57.00 lbs
- Manufacturer Product Page Contact Global Electronic Services
- Manufacturer Upc Number 691720098882
- 2D Drawing Contact Global Electronic Services
- Wiring Diagram Contact Global Electronic Services
- Mounting Type Round
- Number Of Speeds 1
- Overload Protector Thermostat
- Voltage 230/460 V
- Product Type Brake Motors
