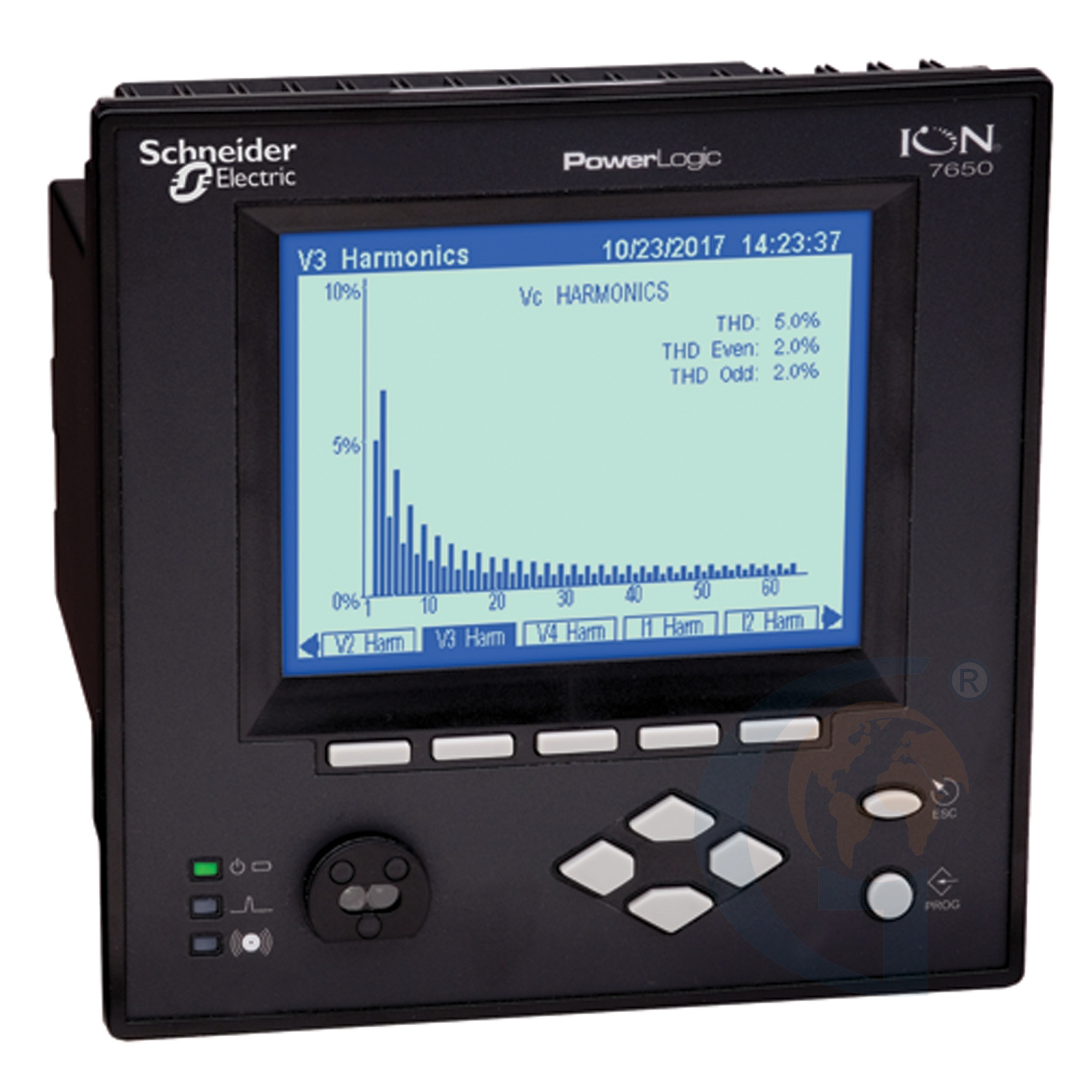

ION7650, transd, 5MB 1024s, 5A 60VDC 50Hz – RS+T2+E – 8I+3R+4O

Features

• range PowerLogic
• device short name ION7650
• product or component type Energy and power quality meter
• power quality analysis harmonic distortion voltage sag and swell detection waveform capture compliance monitoring dip and swell
• device application transient disturbance direction detection programmablity (logic and math functions) setpoint learning up to the 63rd harmonic conforming to IEC 61000-4-30: class A power quality measurement conforming to EN 50160 compliance report
• type of measurement Load curtailment Demand and power factor control Instrument transformer correction Equipment monitoring and control Tariff metering Energy pulsing and totalisation Co-generation and IPP monitoring
• supply voltage Current Voltage Frequency Apparent power total Power factor total Apparent power per phase Power factor per phase Active power total Active power per phase Reactive power total Reactive power per phase
• network frequency 110...300 V DC 20...60 V DC 85...240 V AC 47...63 Hz
• 50 Hz
